50950106/AP0313 35
Instrument Panels
Left Panel
1. Indicator and Warning Lamp Display –
See page 27.
2. Rotating Beacon/Strobe Switch (optional)
– Controls the warning lamp (strobe or bea-
con).
3. Hazard/Flasher Switch (optional) – Con-
trols hazard/flasher.
4. High/Low Beam Switch (optional) – Con-
trols road head lights between main/upper
beams and dimmed/lower beams. Switch
does not turn lights on or off.
5. Turn Signal Switch (optional) – Used to
turn on turn indicator lights. Directional
indicator lights are the same lights as the
flashers. The flashers will override the turn
signals.
6. High-Flow Auxiliary Switch (optional) –
Controls the direction of hydraulic oil flow.
Push the right side of the rocker switch for
forward flow, or the left side for reverse
flow. To disengage, push and release either
side of the switch, or raise the restraint bar.
Turning off the machine and restarting the
engine will also reset the high-flow to neu-
tral.
7. Light Switch – Master control of the lights.
Push the right side of the rocker switch to activate front and rear lights, or to
the left side for deactivation of the front and rear lights. It also provides
power to a machine equipped with flashers.
8. Light Switch – Controls all the lights on the
loader. Push the rocker switch to the middle
detent for front work lights and rear position
lights. Push the rocker switch fully to the
right for front work lights and rear work
lights operation.
9. Self-Leveling Cancel (optional) – Press the
top of the switch to deactivate self-leveling.
Press the bottom of the switch to restore the
self-leveling function.
1
2
3
5
4
6

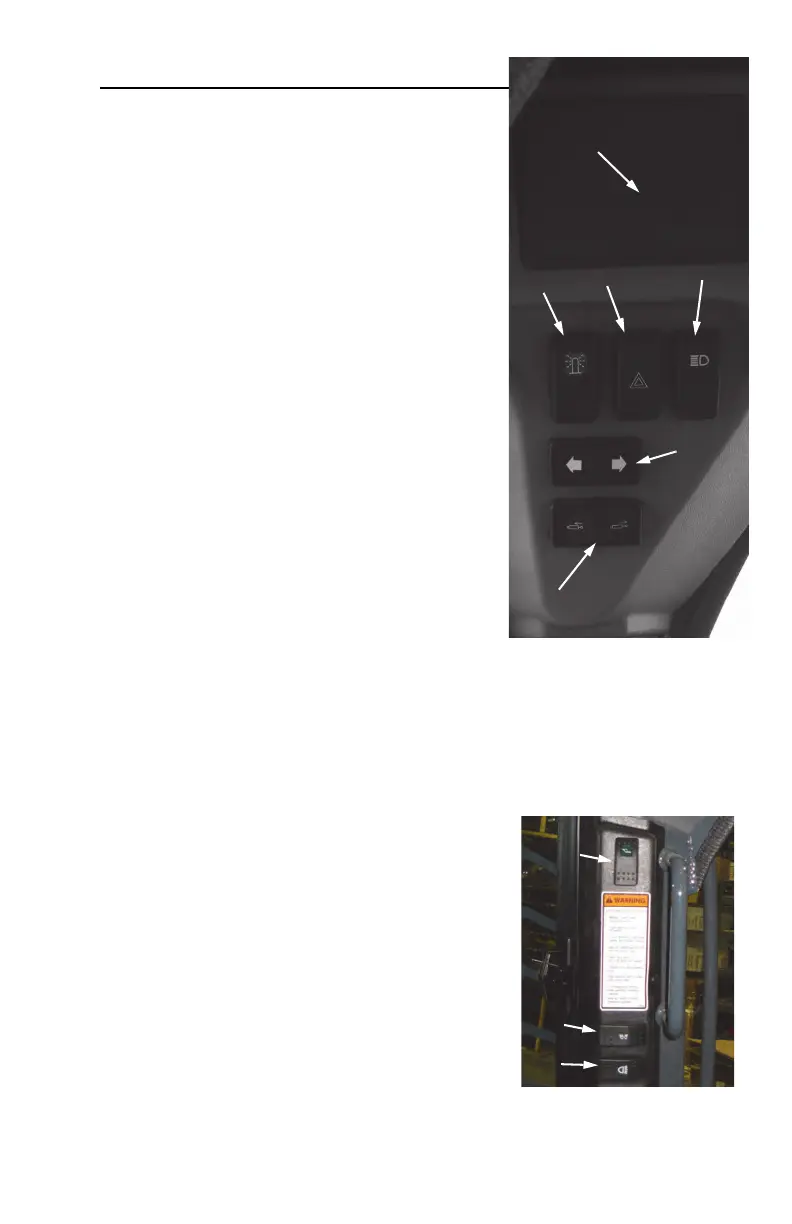

Figure 11 Left Panel
A
B
C
D
8
7
Figure 12 Lower Left Panel
9
