OptiCenter OC06 Product description

19
Design and function
Overall view

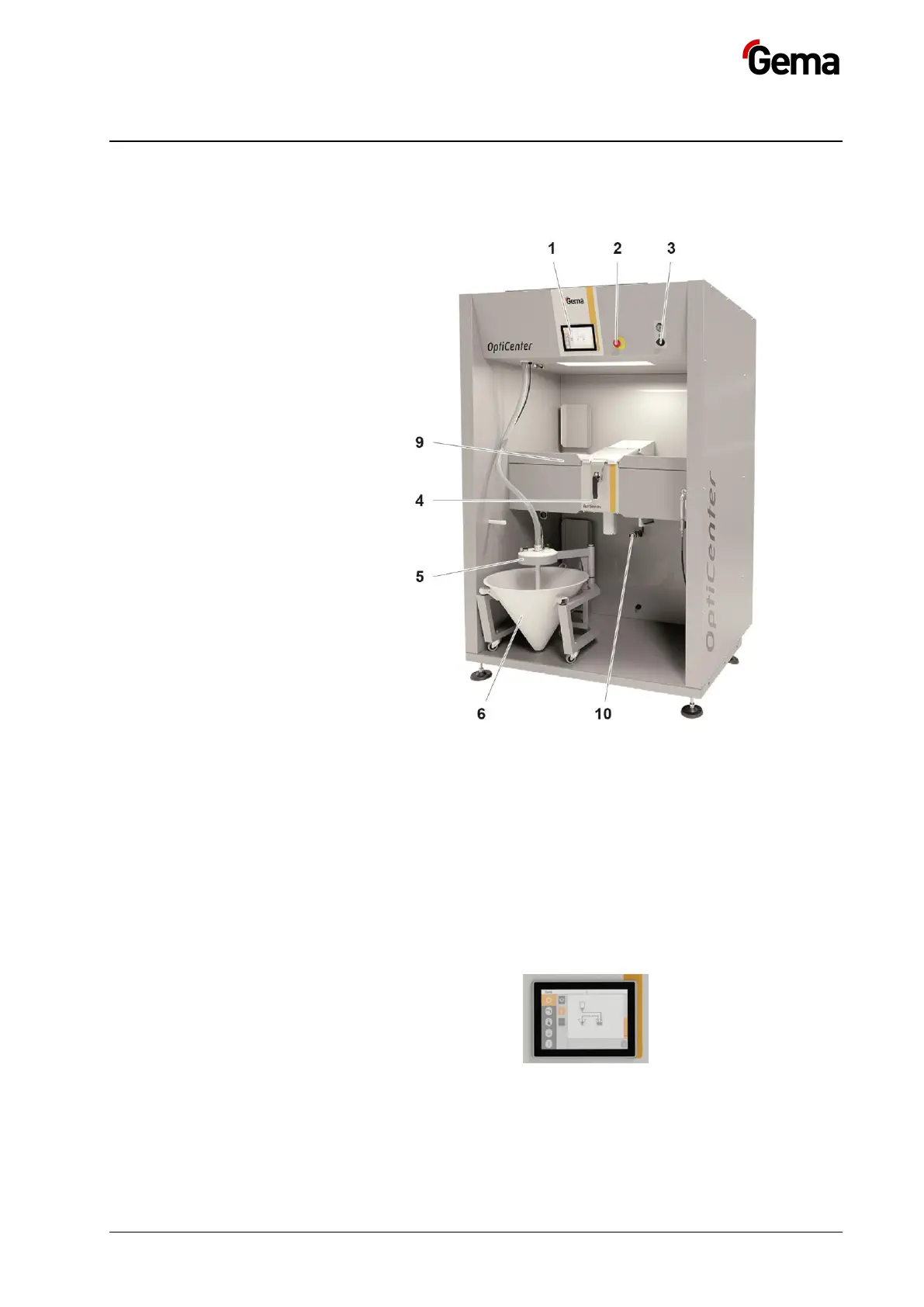

Fig.
4
: Structure
1 Control unit/operating panel
2 Emergency stop button
3 OptiSpeeder fluidization
4 OptiSpeeder
5 Powder bag fixation
6 Powder bag cone with
vibrator
9 Gun control unit All-in-One
10 Powder hopper venting
connection
Touch Panel
All necessary operating procedures are activated by the Touch Panel.
Fig.
5
:
