Assembly / Connection OptiCenter OC06

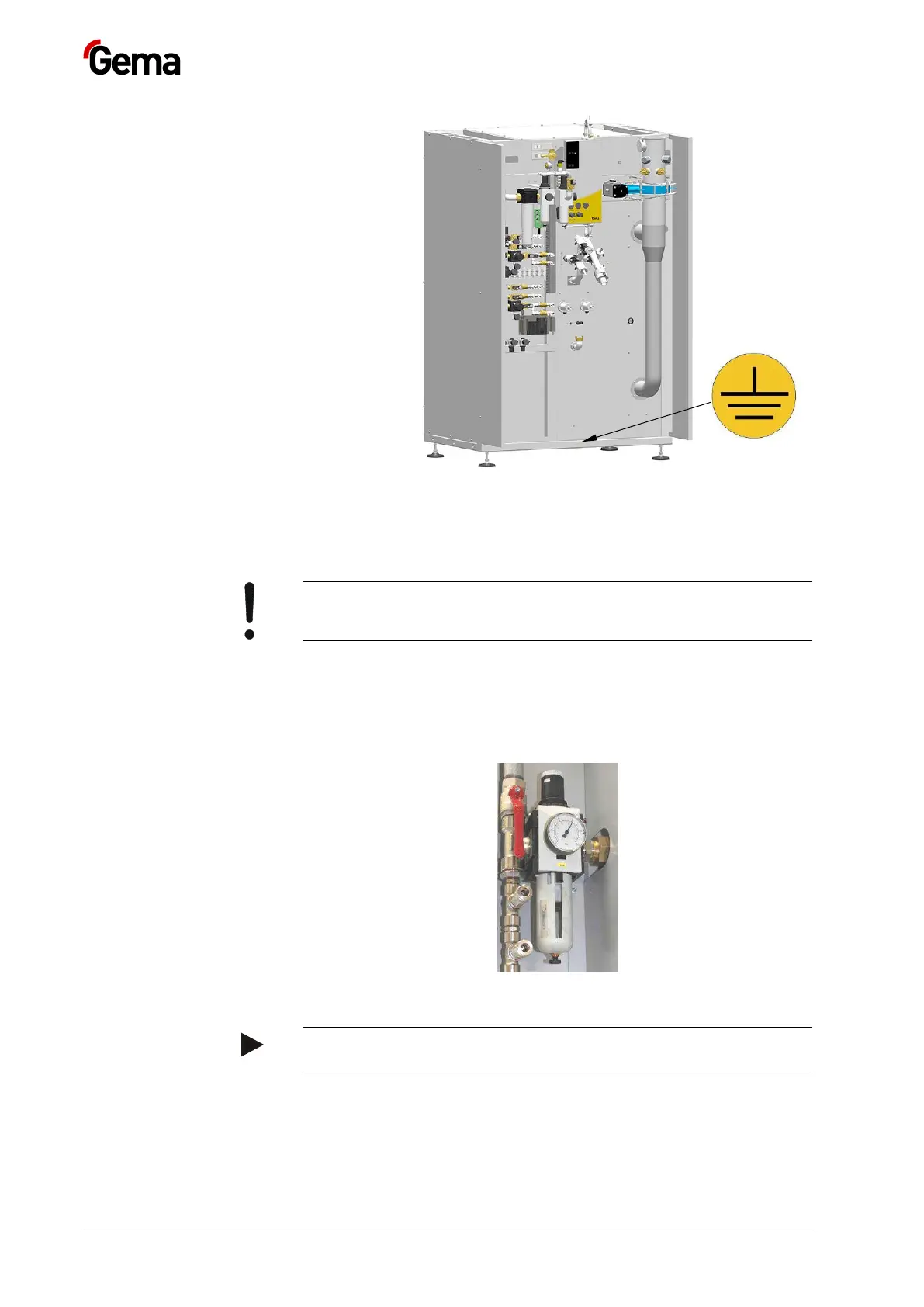

Fig.
: Potential equalization – connection point
Compressed air supply
The compressed air must be free of oil and water!
The OptiCenter requires a connection to a sufficiently dimensioned
compressed air circuit.
In order to ensure correct operation, the main pressure regulator must be
set to a pressure of 6 bar.
Fig.
: Compressed air supply
The other pressure regulators of the system are preset at the
factory according to the pneumatic diagram.
