Level sensor**
– For level detection in the powder bag cone or in the powder hopper
– Height adjustable
– Fluidized in the measuring range
Fig.
Principle of function
Powder circuit
During the typical OptiCenter (7) operation, the powder bag is put in the
powder bag cone. The powder is fluidized in the bag with the
fluidizing/suction lance and then fed to the OptiSpeeder (9). The fluidized
powder is sucked in by the conveyors and fed through the powder hoses
to the guns/spray nozzles (8). The powder, which does not adhere to the
workpieces, will be absorbed by the exhaust air of the booth (1) and
separated from the air in the cyclone separator (2).
The separated powder is cleaned by passing it through the integrated
sieve (3) and fed back into the OptiSpeeder (9) by the dense phase
conveyor (4), where it is prepared again for coating operation.

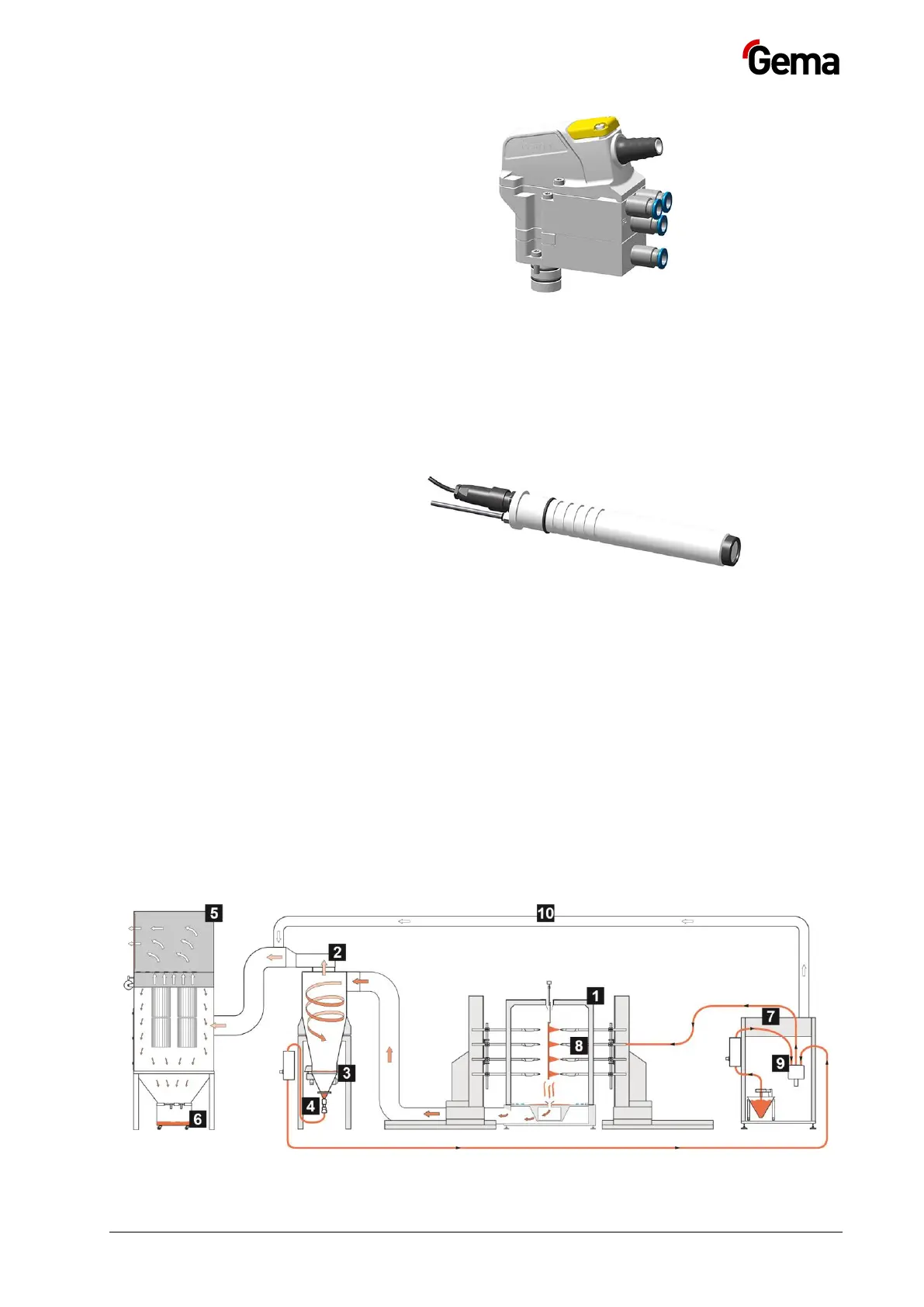

Fig.
: Powder flow in the plant
