General Monitors S5000 User Manual

Figure 16 Adjustable Pipe Mount
3.4.7 Duct Mount
Duct mount kits are available for monitoring atmosphere inside flat or round ducts. Round duct mount kits are available for small ducts 12-20″ in diameter (P/N
10179323) and large ducts 20-40″ in diameter (P/N 10179324). The flat duct mount (P/N 10179322) is universal for flat ducts.
NOTICE
Consider the sensor type before choosing a duct mount location. IR Sensors should be mounted horizontally and all other
sensors should be mounted vertically.
NOTICE
Air flow in the duct must be zero to ensure proper calibration.

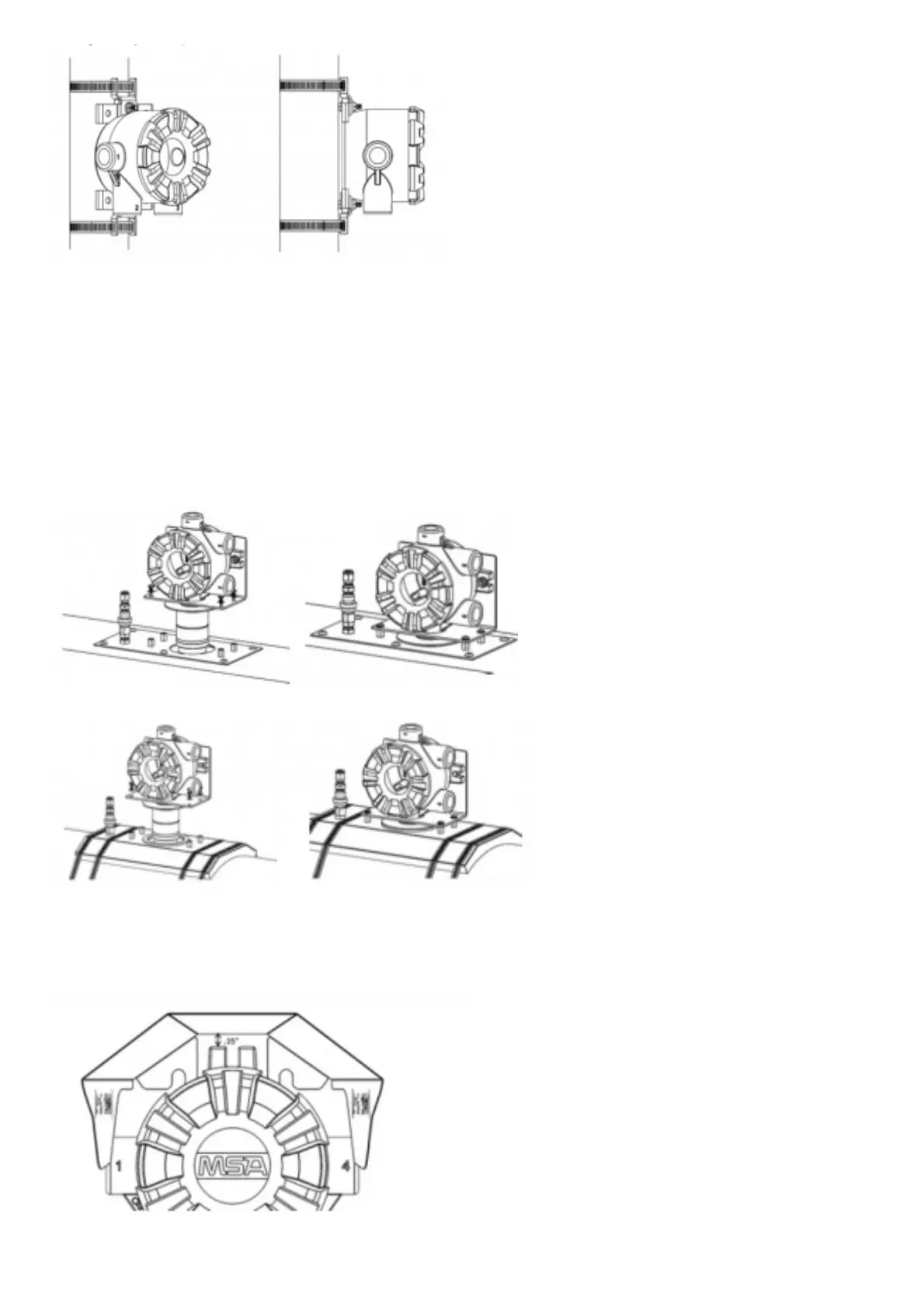

Figure 17 Flat Duct Mount
Figure 18 Round Duct Mount
3.4.8 Mounting with a Sunshield
A sunshield is required to protect the S5000 from direct sun light (P/N 10180254). The sunshield can be used in any of the mounting configurations.
Figure 20 Sunshield with Universal Pipe Mount

General Monitors S5000 Specifications

General

Sensor Type	Electrochemical
Gas Detected	Oxygen, Toxic and Combustible Gases
Enclosure	Stainless Steel
Certifications	ATEX, IECEx, UL, CSA
Detection Principle	Electrochemical, Infrared
Enclosure Rating	IP66
Power	12-30 VDC
