General Monitors S5000 User Manual

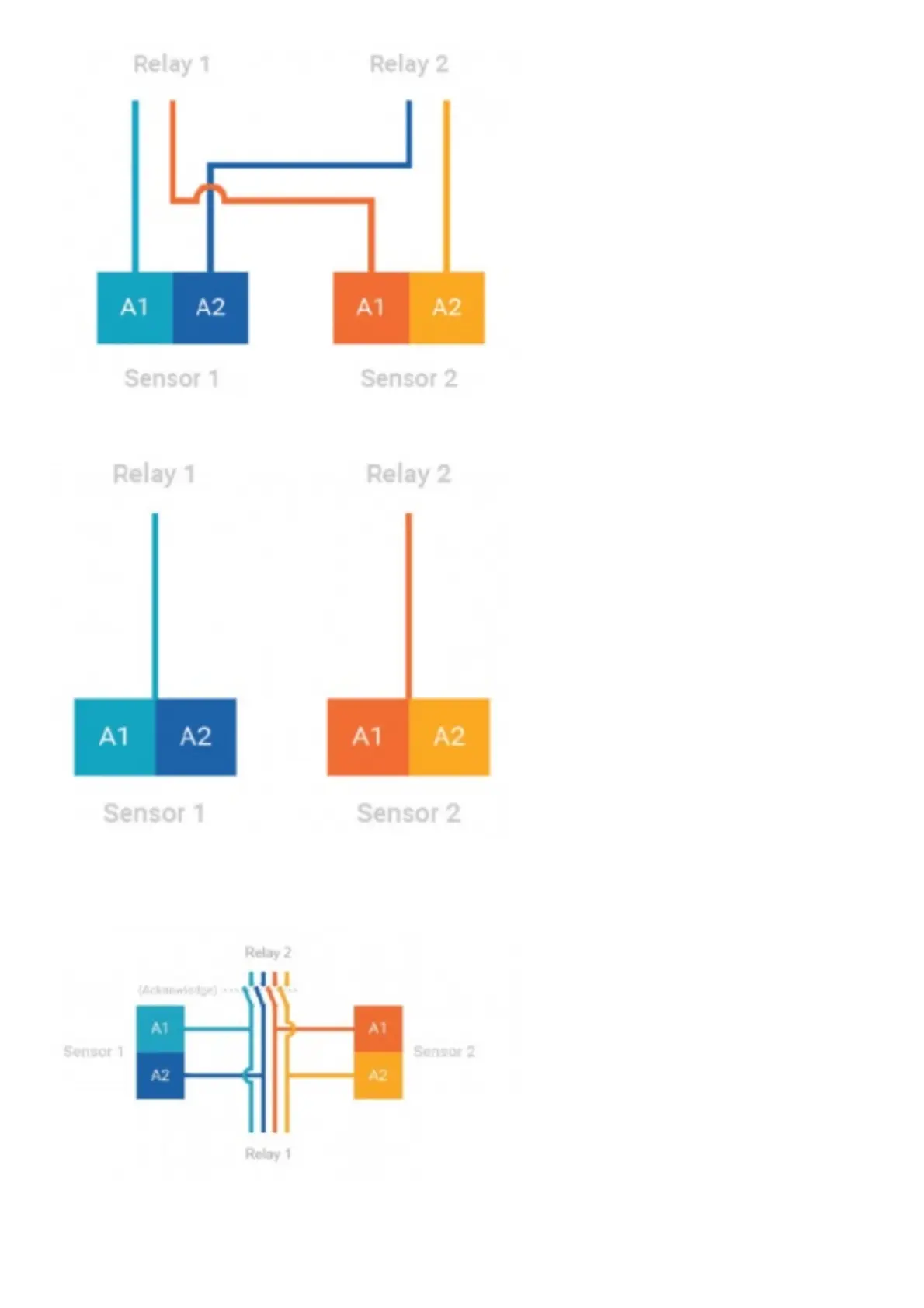

Figure 29 Common Mode Relay Map and Alarm Actuation
Discrete mode allows a separate action for each sensor. Relay 1 is actuated by Sensor 1 alarms and Relay 2 is actuated by Sensor 2 alarms
Figure 30 Discrete Mode Relay Map and Alarm Actuation
Horn mode is designed to allow local acknowledgment of a relay-triggered horn, while the alarm state is still present. All alarms on both sensors trigger both
relays, however the second relay can be acknowledged through the “Reset” entry in UI menu by touching the EZ touch button or applying magnet to the GMI
logo.
Figure 31 Horn Mode Relay Map and Alarm Actuation
Energized/De-energized

General Monitors S5000 Specifications

General

Sensor Type	Electrochemical
Gas Detected	Oxygen, Toxic and Combustible Gases
Enclosure	Stainless Steel
Certifications	ATEX, IECEx, UL, CSA
Detection Principle	Electrochemical, Infrared
Enclosure Rating	IP66
Power	12-30 VDC
