Rocket 4D Evaporation System
User Manual
38 04-7848 Issue 2-4 August 2014
Feed system

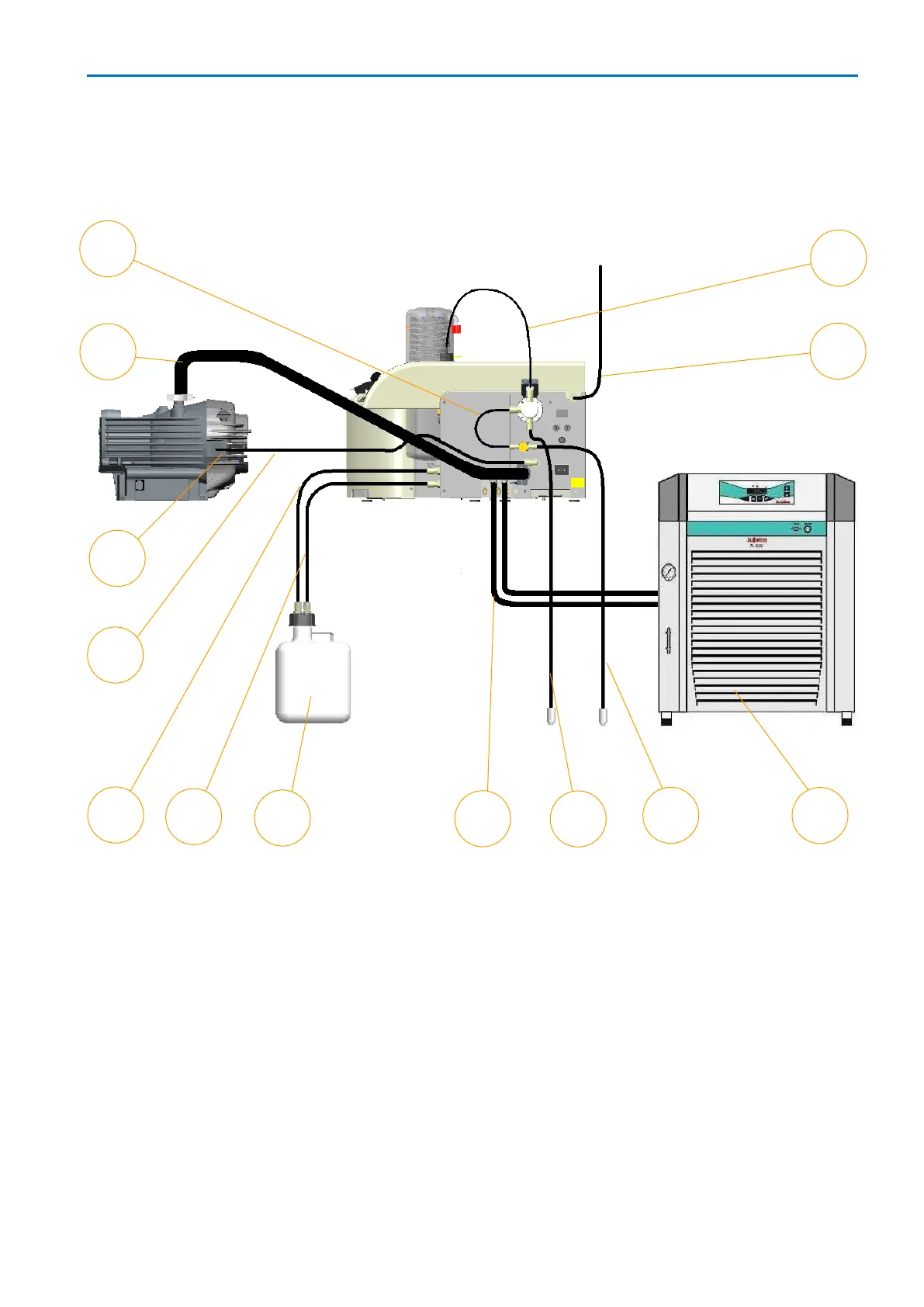

This overview shows the hose connections for a Rocket 4D Feed system. For details, refer
to the installation instructions on the following pages.
1. Rinse valve hose
2. Vacuum hose
3. Vacuum pump exhaust adapter
4. Pump exhaust
5. Waste solvent drain hose
6. Waste container vent hose
7. Waste solvent container (not supplied)
8. Coolant feed and return
9. To product solution reservoir
10. To rinse solvent reservoir
11. Re-circulating chiller
12. Exhaust to laboratory fume extraction
13. Feed to rotary joint*
2
1
13
12
10
11
9
8
3
7
4
5
6
