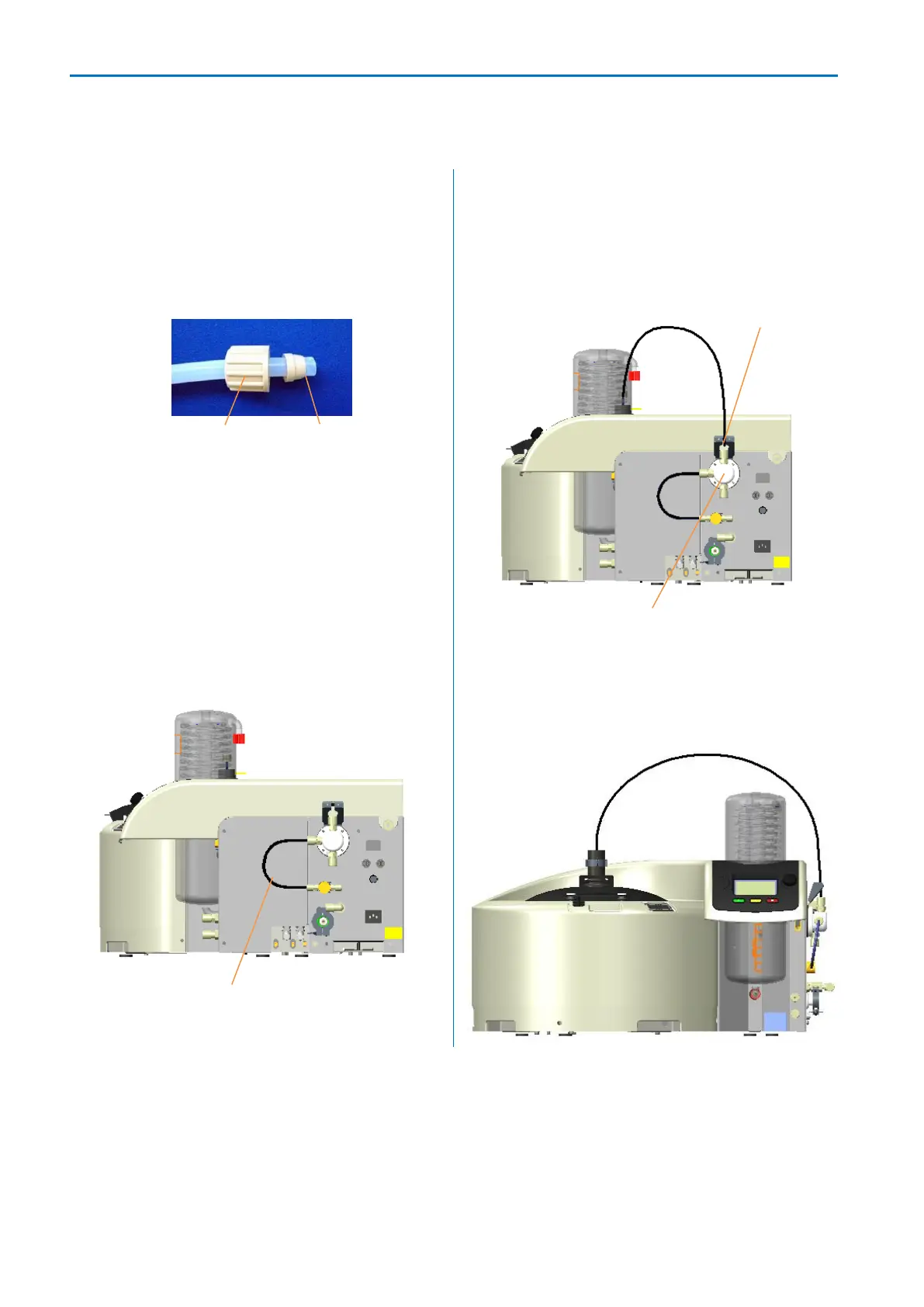

The connection method is similar for both
6 mm and 8 mm OD PTFE hoses that are
used.
Slide a finger nut and compression ring over
the end of the hose as shown.
Finger nut Compression ring
Push the hose firmly onto the connector
spigot and hold in place while screwing the
finger nut onto the spigot until finger tight.
Rinse valve hose
Feed systems only: A preformed āUā
shape 8 mm OD PTFE hose is pre-fitted as
shown.
Rinse valve hose
Feed systems only: Connect the pre-cut
length of 6 mm OD PTFE hose to the outlet
(top connector) of the feed valve.
Clip the hose firmly into the feed sensor
Feed valve
Connect the other end of the hose to the
rotary joint on the lid.
