Rocket 4D Evaporation System
42 04-7848 Issue 2-4 August 2014

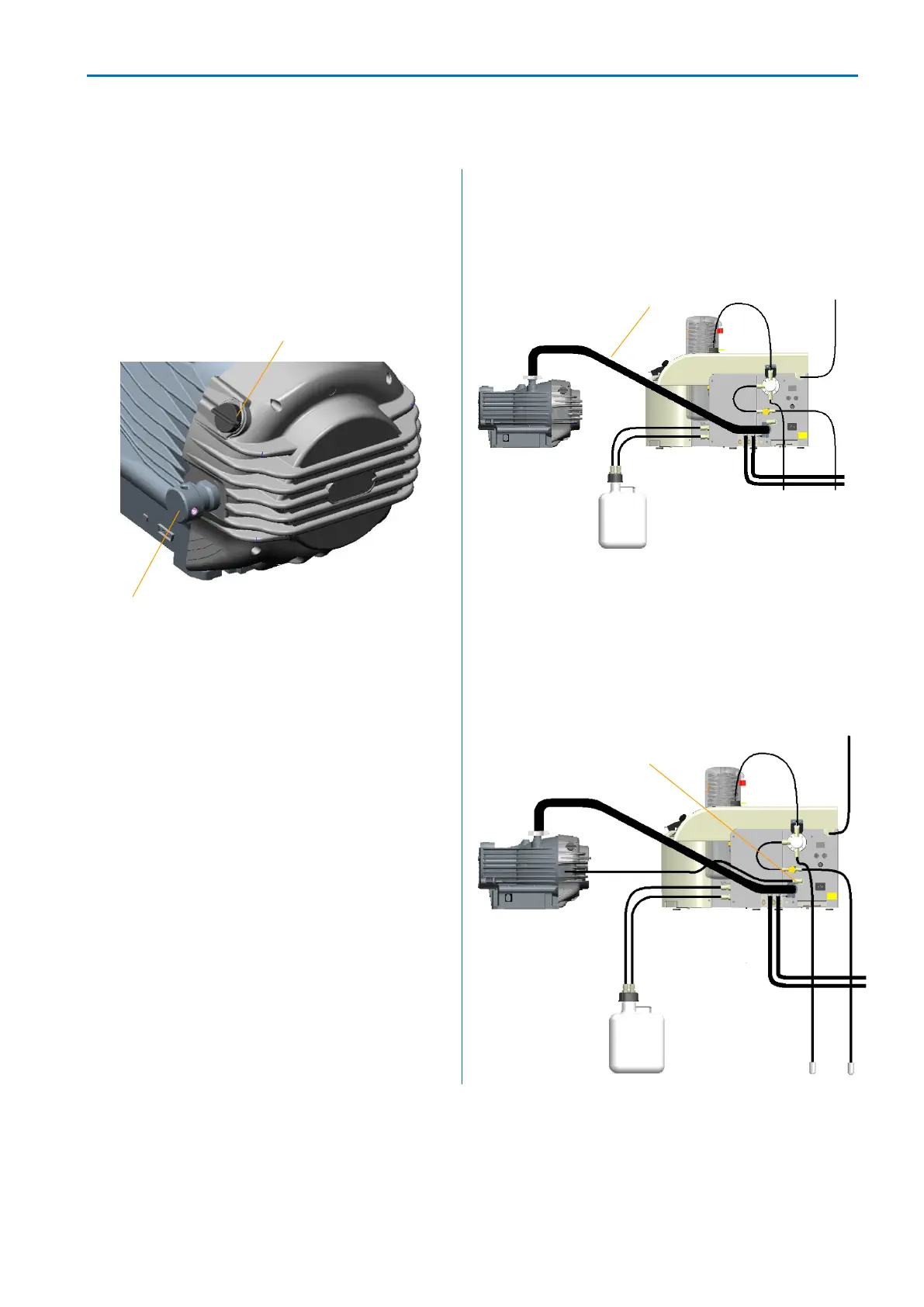

The pump gas ballast control must be set
to position “1” (as shown).
Push the exhaust adapter firmly into the
pump exhaust outlet and twist it so the
outlet faces the desired direction.
Gas ballast
Exhaust adapter
Using the Klein Flange connectors and three
metre vacuum pipe, connect the vacuum
pump to the Rocket 4D vacuum inlet.
Vacuum hose
Pump exhaust
Connect 8 mm O PTFE hose to the pump
exhaust outlet. Connect the other end of the
hose to the exhaust inlet connector of the
side of the Rocket 4D.
