94
Reset (9): Remove all inputted values.
Virtual Server All existing virtual server mappings will be
Table (10): displayed here.
Delete (11): Please select a virtual server mapping by clicking
the ‘Select’ box of the mapping, then click ‘Delete
Selected’ button to remove the mapping. If there’s no
existing mapping, this button will be grayed out.
Delete All (12): Delete all mappings existed in virtual server table.
Reset (13): Unselect all mappings.

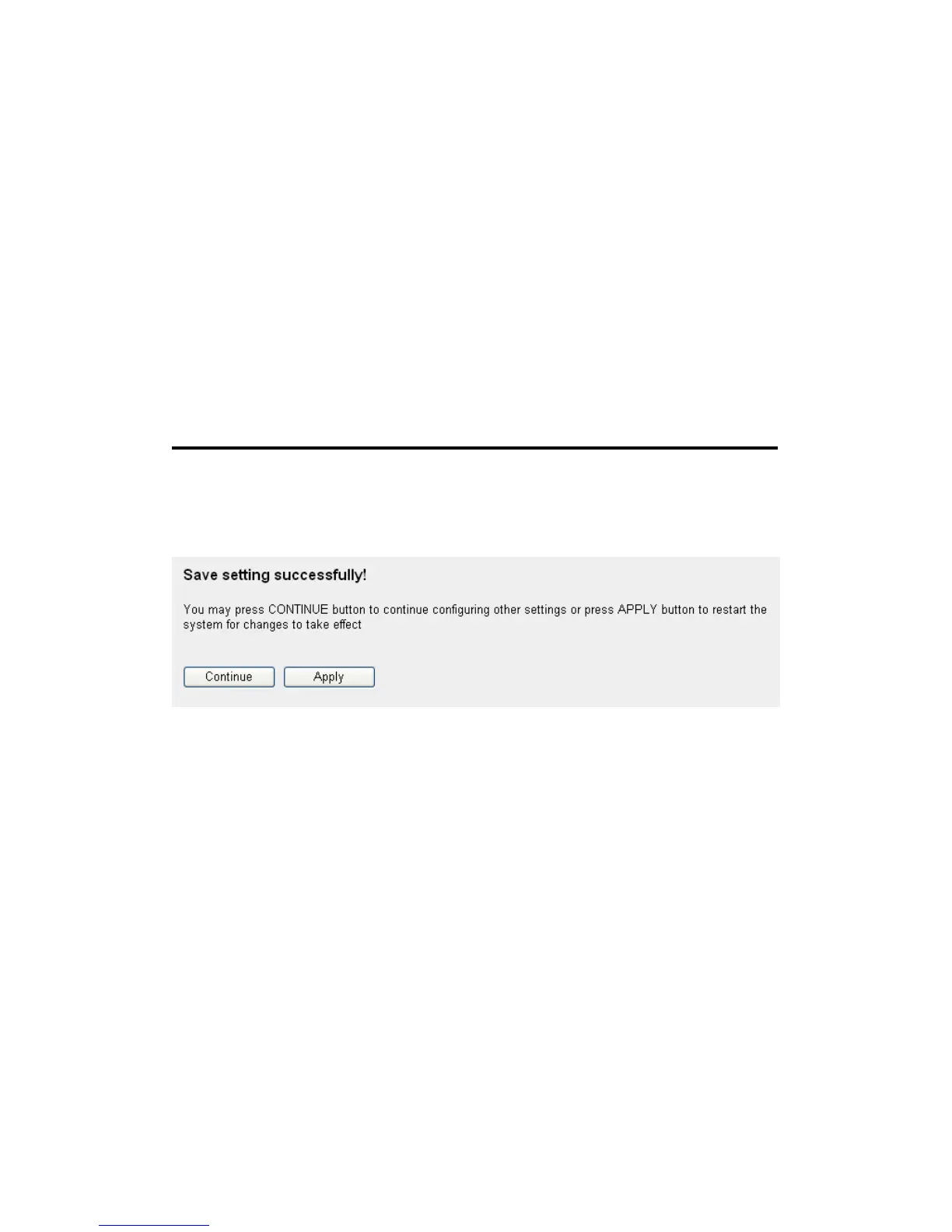

After you finish with all settings, please click ‘Apply’ (14) button and the
following message will be displayed on your web browser:
Please click ‘Continue’ to back to previous setup menu; to continue on
other setup procedures, or click ‘Apply’ to reboot the router so the
settings will take effect (Please wait for about 30 seconds while router is
rebooting).
If you want to reset all settings in this page back to previously-saved
value, please click ‘Cancel’ button.
