113
Current All existing public IP address and private IP
DMZ Table (7): address mapping will be displayed here.
Delete (8): If you want to delete a specific DMZ entry, check
the ‘select’ box of the DMZ entry you want to delete,
then click ‘Delete Selected’ button. (You can select
more than one DMZ entries).
Delete All (9): If you want to delete all DMZ entries listed here,
please click ‘Delete All’ button.
Reset (10): You can also click ‘Reset’ button to unselect all
DMZ entries.

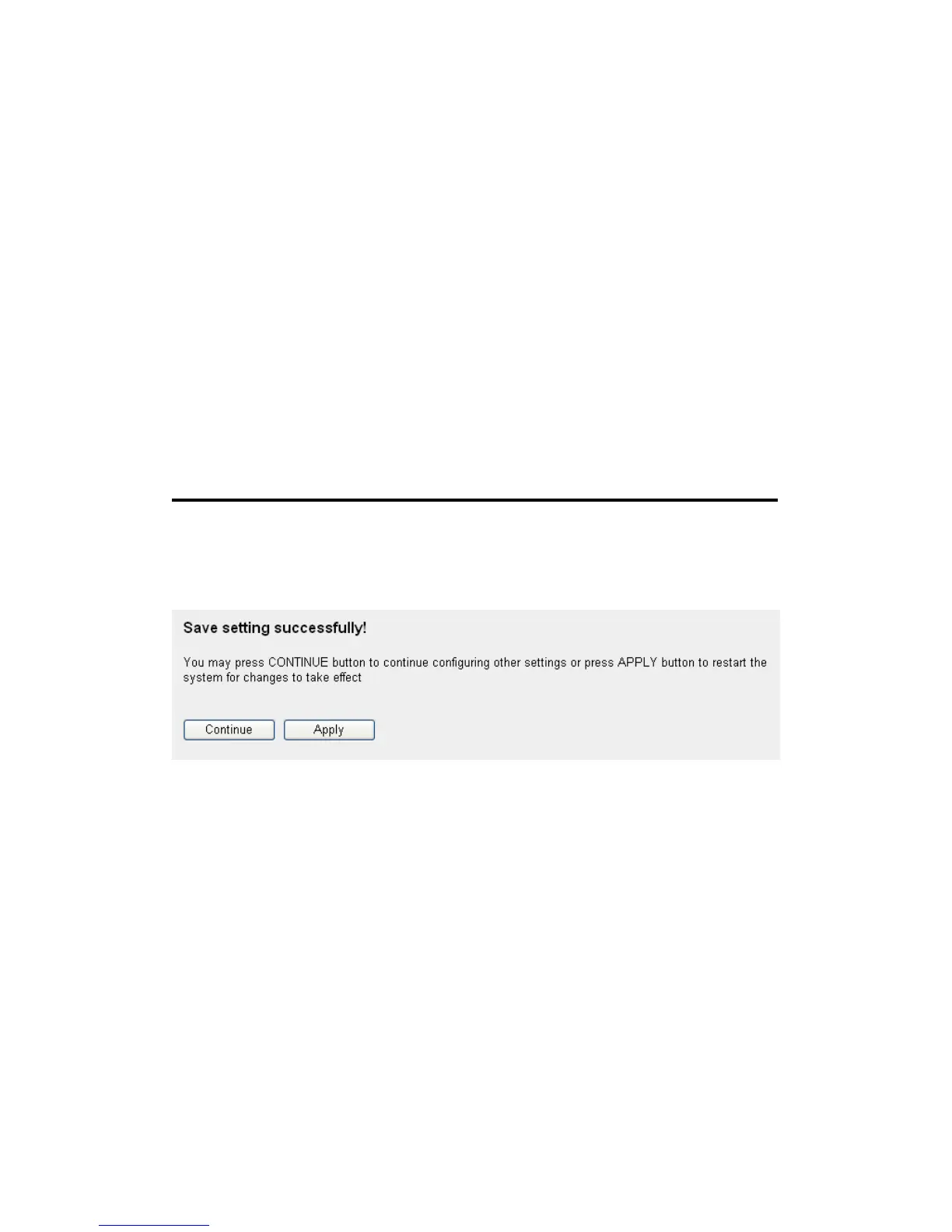

After you finish with all settings, please click ‘Apply’ (11) button and the
following message will be displayed on your web browser:
Please click ‘Continue’ to back to previous setup menu; to continue on
other setup procedures, or click ‘Apply’ to reboot the router so the
settings will take effect (Please wait for about 30 seconds while router is
rebooting).
If you want to reset all settings in this page back to previously-saved
value, please click ‘Cancel’ button.
