Getnet GR-724W User Manual

79
anything. You can input up to 16 alphanumerical
characters here. This is optional and you can leave
it blank, however, it’s recommended to use this field
to write a comment for every MAC addresses as a
memory aid.
Add (7): Click ‘Add’ button to add the MAC address and
associated comment to the MAC address filtering
table.
Clear (8): Click ‘Clear’ to remove the value you inputted in
MAC address and comment field.

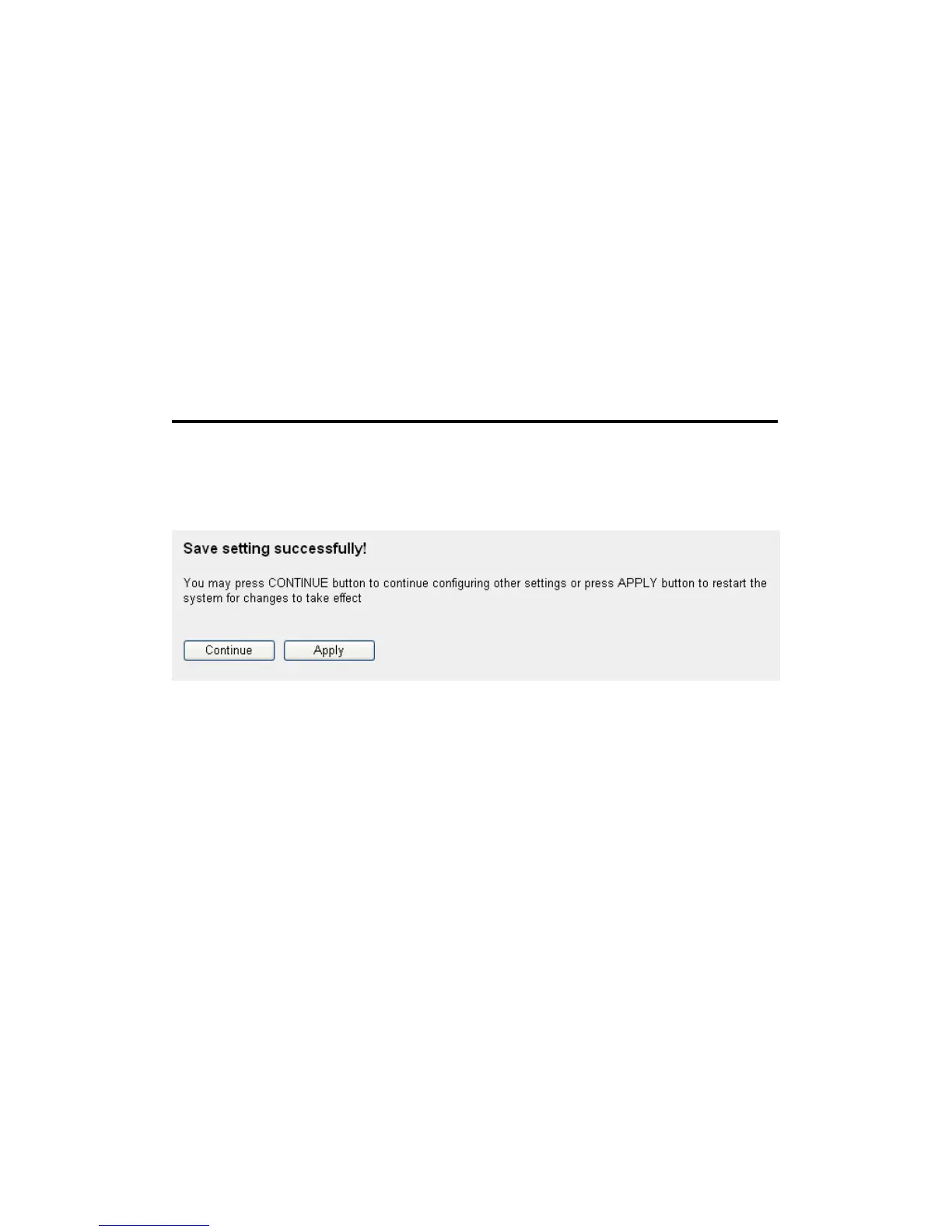

After you finish with all settings, please click ‘Apply’ (9) button and the
following message will be displayed on your web browser:
Please click ‘Continue’ to back to previous setup menu; to continue on
other setup procedures, or click ‘Apply’ to reboot the router so the
settings will take effect (Please wait for about 30 seconds while router is
rebooting).
If you want to reset all settings in this page back to previously-saved
value, please click ‘Cancel’ button.

Getnet GR-724W Specifications

General

VPN support	IPSec/PPTP
Ethernet LAN	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	11n:14±1.5dBm 11g:14±1.5dBm 11b:18±1.5dBm 300Mbps OFDM, 10% PER, ‐ 65±2dBm 54Mbps OFDM, 10% PER, ‐ 73±2dBm 11Mbps CCK, 8% PER, ‐ 86±2dBm
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	-
WLAN data transfer rate (max)	300 Mbit/s
Interface	WAN, LAN, WiFi
Input current	0.5 A
Input voltage	12 V
Number of users	253 user(s)
Dimensions (WxDxH)	163 x 112 x 30 mm
USB ports quantity	0
Supported protocols	WAN Protocol: PPPoE /Static IP/ PPTP /Dynamic IP /L2TP / Telstra Big Pond
Compatible operating systems	Windows Vista/7
NAT functionality	NAT/NAPT IP Sharing
Security algorithms	128-bit WEP, 64-bit WEP, WPA-PSK, WPA2-PSK
Ethernet LAN (RJ-45) ports	4
Flash memory	4 MB
Certification	CE, FCC
Internal memory	16 MB
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Product color	Black

Weight and Dimensions

Weight	- g
