87

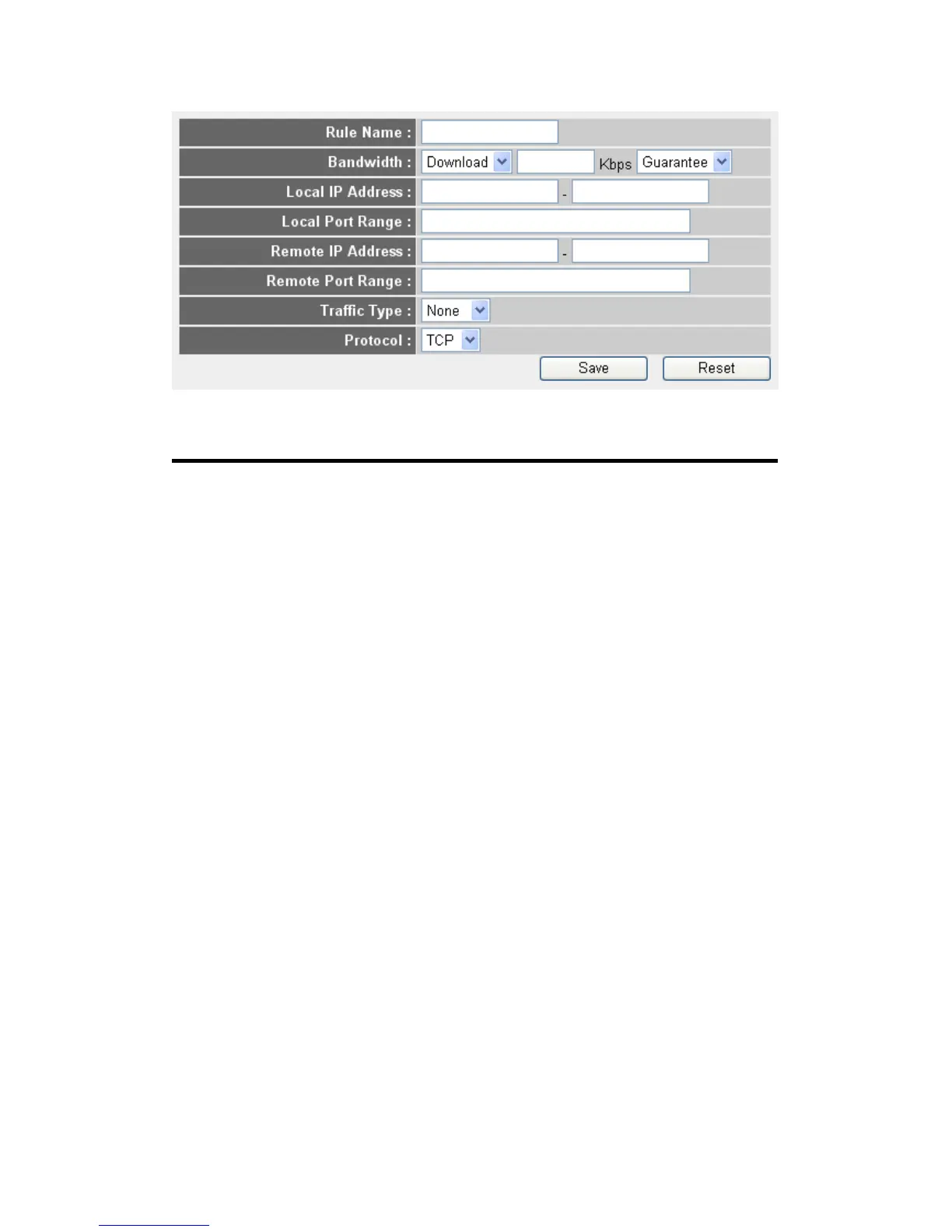

Here are descriptions of every setup items:
Rule Name (a): Please give a name to this QoS rule (up to 15
alphanumerical characters)
Bandwidth (b): Set the bandwidth limitation of this QoS rule. You
have to select the data direction of this rule (Upload
of Download), and the speed of bandwidth
limitation in Kbps, then select the type of QoS:
‘guarantee’ (guaranteed usable bandwidth for this
rule) or ‘max’ (set the maximum bandwidth for the
application allowed by this rule).
Local IP Specify the local (source) IP address
Address (c): that will be affected by this rule. Please input the
starting IP address in the left field, and input the
end IP address in the right field to define a range of
IP addresses, or just input the IP address in the left
field to define a single IP address.
Local Port Please input the range of local (source)
Range (d): port number that will be affected by this rule. If you
want to apply this rule on port 80 to 90, please
input ’80-90’; if you want to apply this rule on a
single port, just input the port number, like ‘80’.
a
b
c
d
e
f
g
h
i
