Weld334m - User’s manual
F356-IOE I/O Expansion Card
46
P24 . Functional description of input signals
Pin Signal Function
17 CODEP
Parity Code.
Active at +24V.
It is used only on robot operated lines.
It is used for the logic check of CODE0....5 inputs and is
dependent on the setting done in the Setup menu.
(see list of codes on page 47).
Warning!
If not used, this input must be disabled (see Setup
section of programming manual).
18 RESAH
Hardware alarm reset.
Active at +24V.
It inhibits the machine shutdown (Alarm 2) occurred during
the processing.

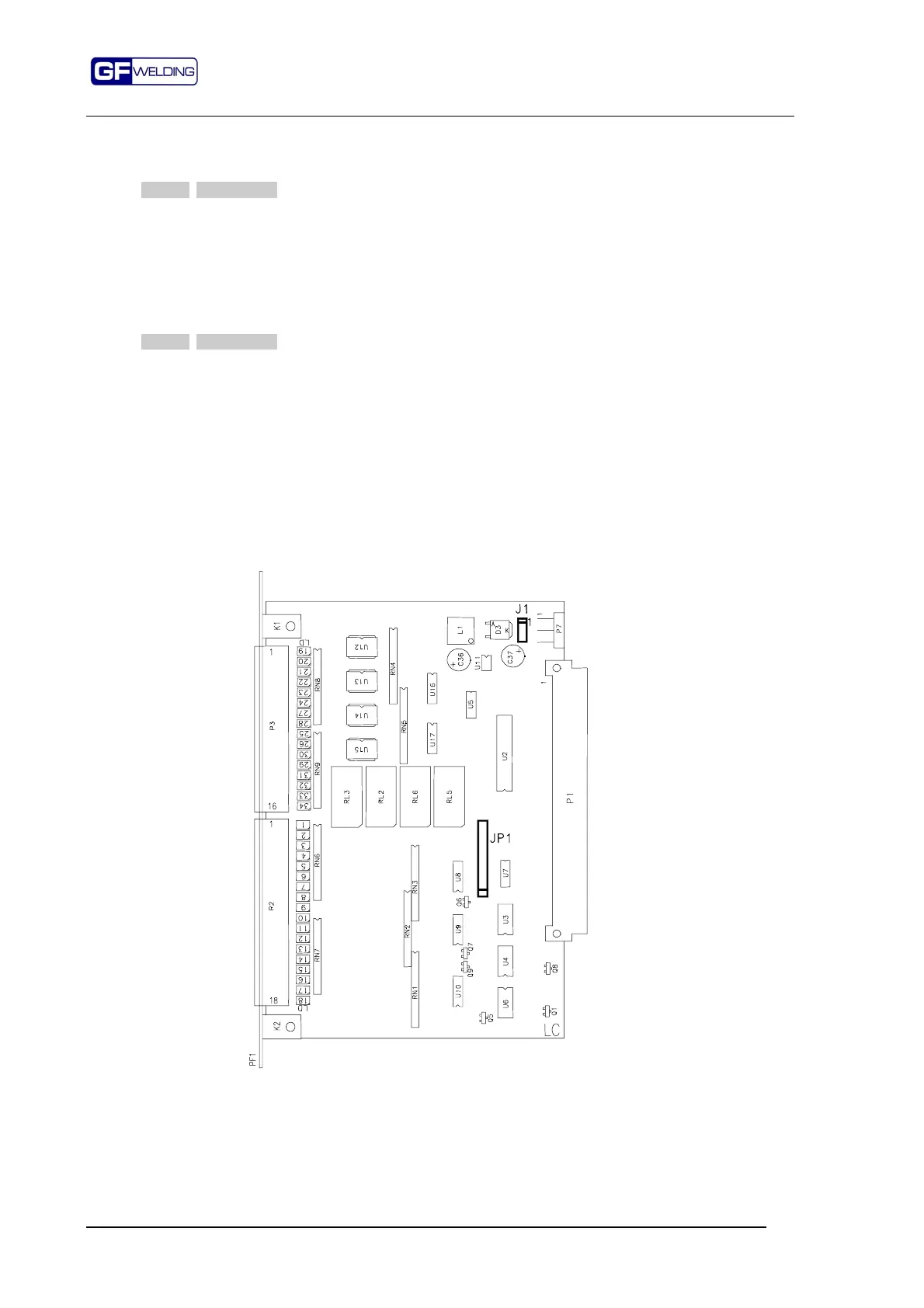

Card layout: Standard setting of jumpers
J1: 2-3
JP1: Off
