APPENDIX B – Diagrams and network configurations
Operating diagrams
This section illustrates a few operating diagrams of the control device which allow analysing
timing and synchronisms referred to the
Start
and
Emergency
conditions in manual or
automated environments.

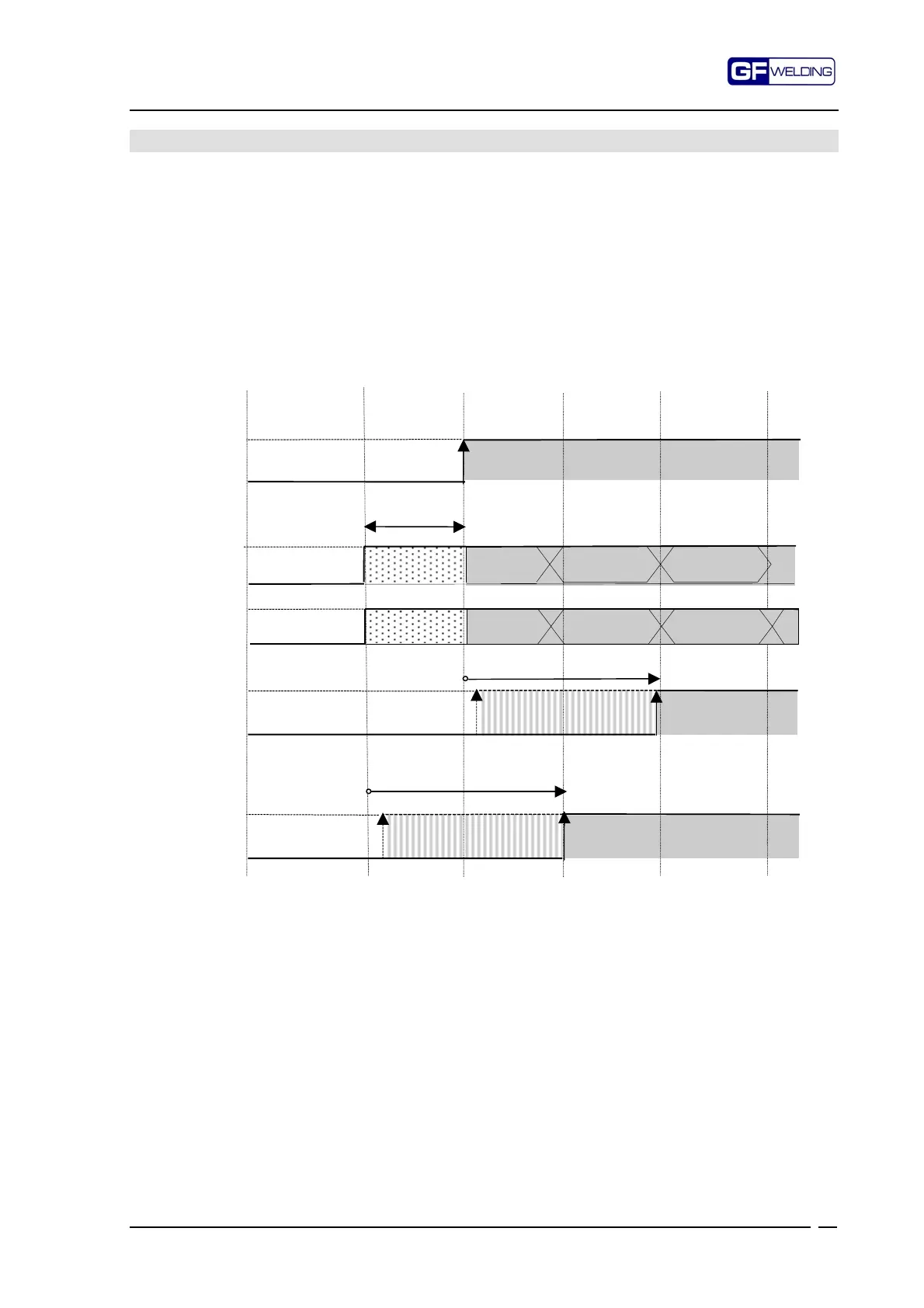

1 – START recognition with use in automated environment
(1)
The program code is saved. Any successive changes have not effect.
Program parity
Analog pressure
0
24
Start
0
24
EVS
0
24
Program code
Min.10mS
Max. 20mS (1Cycle)
Max. 19.8mS (0,99Cycle)
(1)
0
24
0
24
