GF Welding Weld334m - 5 - EMERGENCY STOP Excluded with START Still Active; 6 - START Disabled Condition During Welding Pulse

Weld334m - User’s manual
77

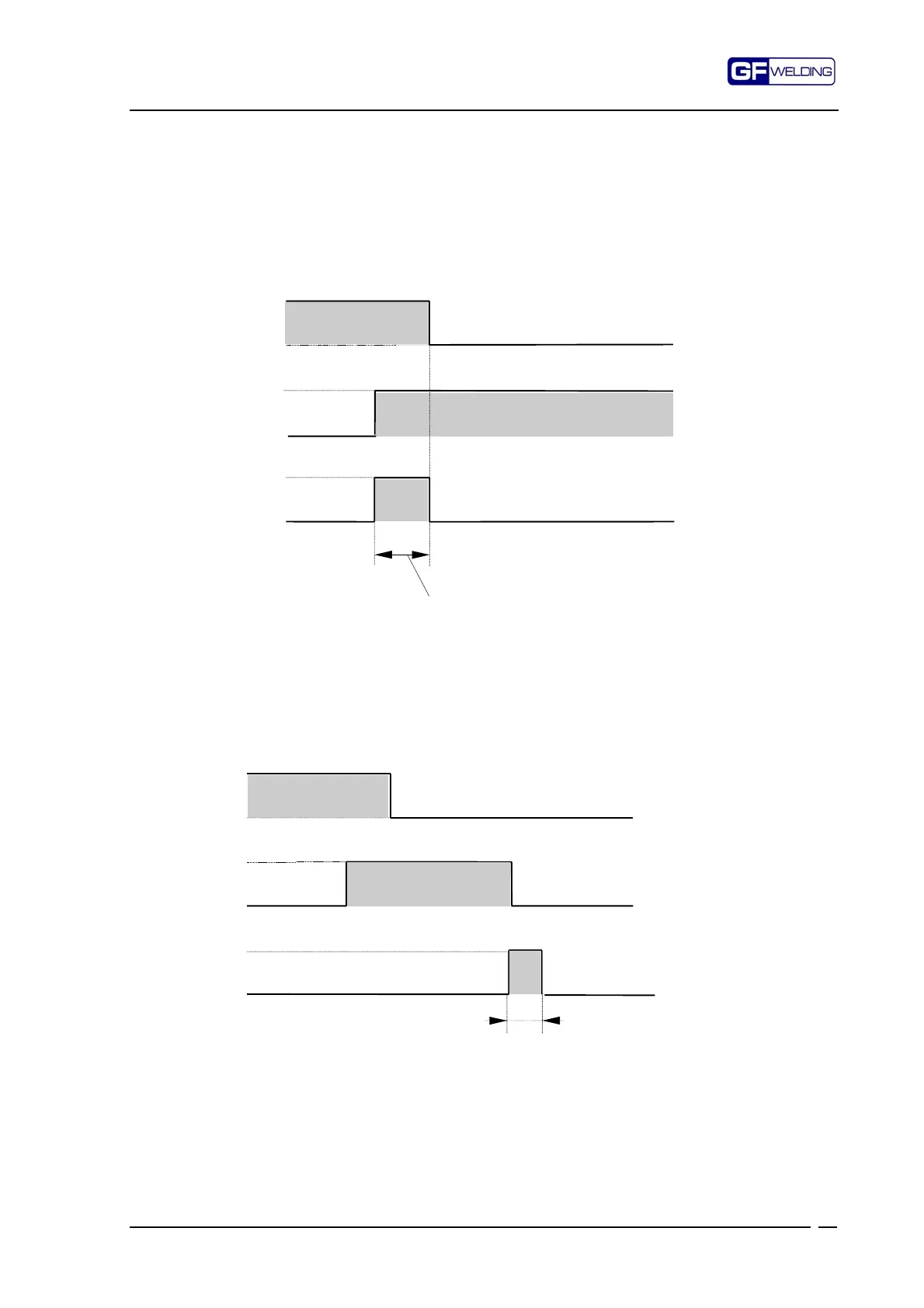

5 – EMERGENCY STOP excluded with START still active
NOTE: The Emergency stop signal is active at 0V
6 – START disabled condition during the welding pulse
EMERGENCY
START
FK
(if spot done)
since START = ON; same as standard condition
24V
0
24V
0
24V
0
Closed
Open
On
Off
WELD
User programmable
0-99 cycles
START
FK
24V
0
24V
0
24V
0
