Weld334m - User’s manual
F376-OPC Field-Bus InterBus-S Card
49
Code:33037600
11. F376-OPC Field-Bus InterBus-S Card (Profile F-IBS/03)
11.1 Characteristics
The F376-OPC card enables the welding I/O functions towards the field to be managed, as
an alternative to the IOE field cards. This data communication occurs by optical fiber
transmission through a serial bus, compatible with the InterBus-S protocol.
InterBus-S is one of the most common communication standards in the field of automation.
The F376-OPC card enables exchange of up to 12 words. The actual amount of exchanged
data depends on the communication Profile defined for any specific application. The word
“Profile” identifies a particular configuration of the exchanged data. The F376-OPC card is
associated to the F-IBS/03 Profile type.
From the functional standpoint, the card is divided into two separate parts:
the first part comprises the interface electronics towards the control device
and is powered by the internal bus; the second part comprises an optical
interface circuit towards the field powered by an external 24Vdc through the
P25 connector.
Thus the InterBus-S serial communication, as it is autonomously
powered, is not interrupted when the power to the control device is OFF.
The InterBus-S interface is achieved through the IBS SUPI 3 OPC (
O
ptical
P
rotocol
C
hip) component, that ensures a high degree of operational
security and an independent diagnostics capability in the quality and level
of the optical fiber based signal.
11.2 Optical connectors InterBus-S
The connectors used for the optical fibers are of the F-SMA type, in
accordance with the
InterBus-S DIN 19258
standard
.
Please refer to
this specification for the connection topology and the optical fiber type to
be used.
REMOTE IN
Remote communication connections towards the preceding device:
DI1:
Output
DO1:
Input
REMOTE OUT
Remote communication connections towards the following device:
DI2:
Output
DO2:
Input
WARNING
When not in use, the closing cap must always be placed on the optical
connectors.

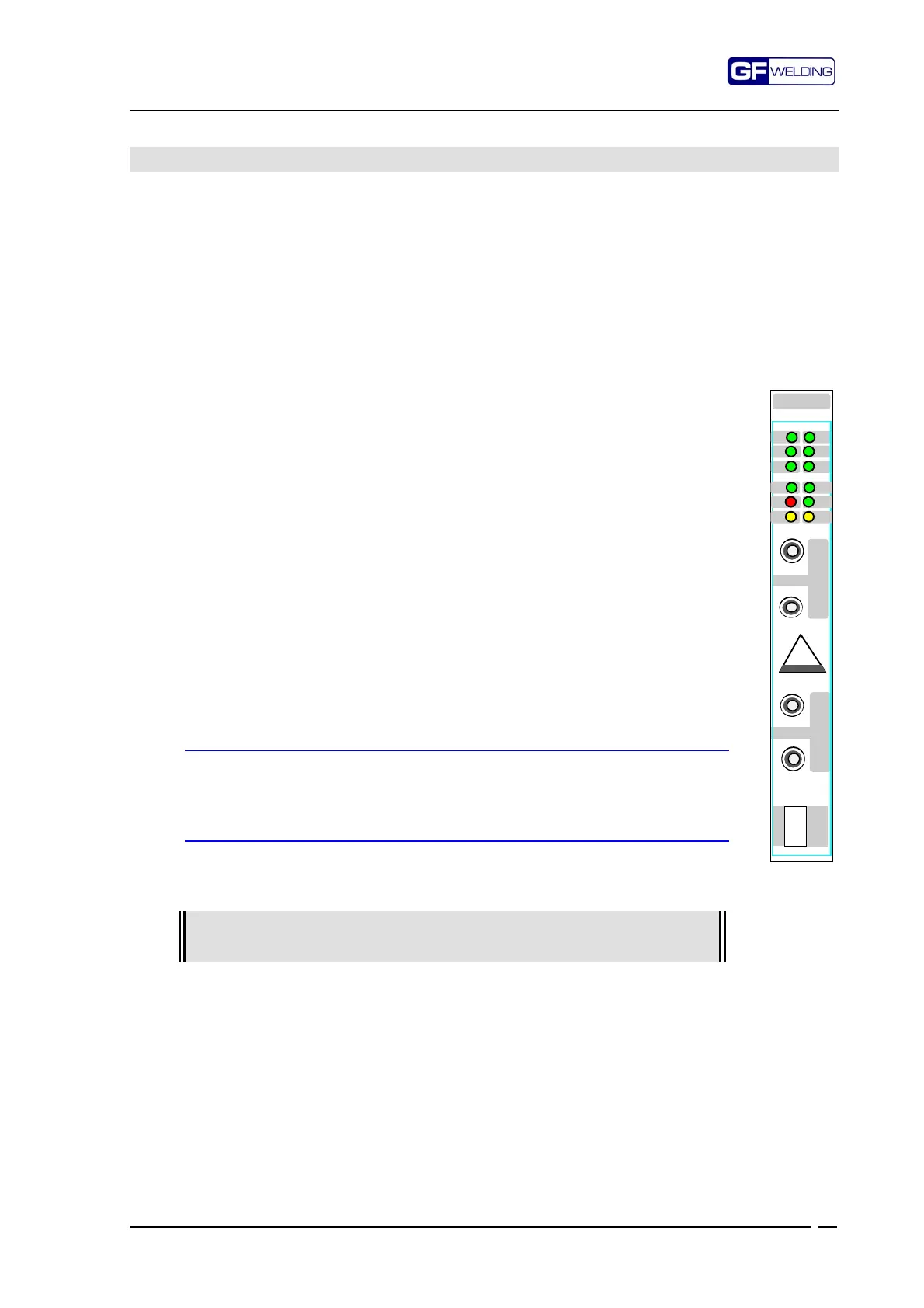

F376-OPC
ST
MS
TR
FK
BE
SP
DI1
DO1
REMOTE IN
DI2
DO2
REMOTE OUT
InterBus
P
2
5
24V
0V
UL
RD
FO1
CC
BA
FO2
