Service Troubleshooting
Page 5-10 MDE-4699L Applause™ Media System Installation, Service, and Parts Manual · June 2017
23 In the left column, select Power Management Setup and press Enter.

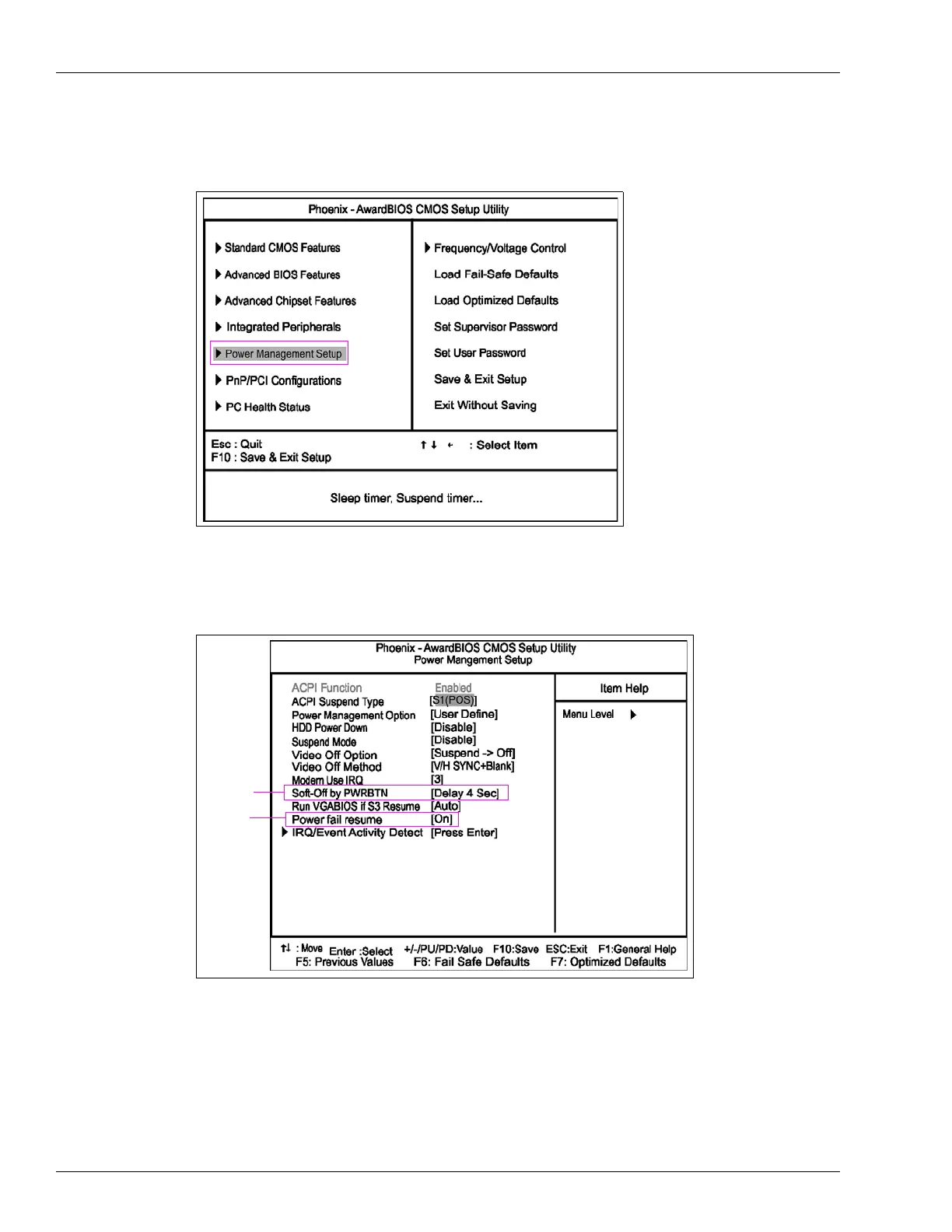

Figure 5-11: Selecting Power Management Setup
24 On the Power Management Setup screen, set the Soft-Off by PWRBTN field to Delay 4 Sec.
Figure 5-12: Setting Soft-Off by PWRBTN
25 Set the Power fail resume field to On.
26 Press Esc to return to the Phoenix - AwardBIOS CMOS Setup Utility screen.
27 Select Save & Exit Setup on the right column and press Enter. Select YES to the
confirmation prompt and press Enter. The server will begin to reboot.
