GILBARCO VEEDER-ROOT Orpak OrPAY1000 User Manual

The following displays and lists the electrical specifications and limitations for the OrPAY1000 with an
embedded Current Loop pump card (see Table 2-1, Figure 2-2):

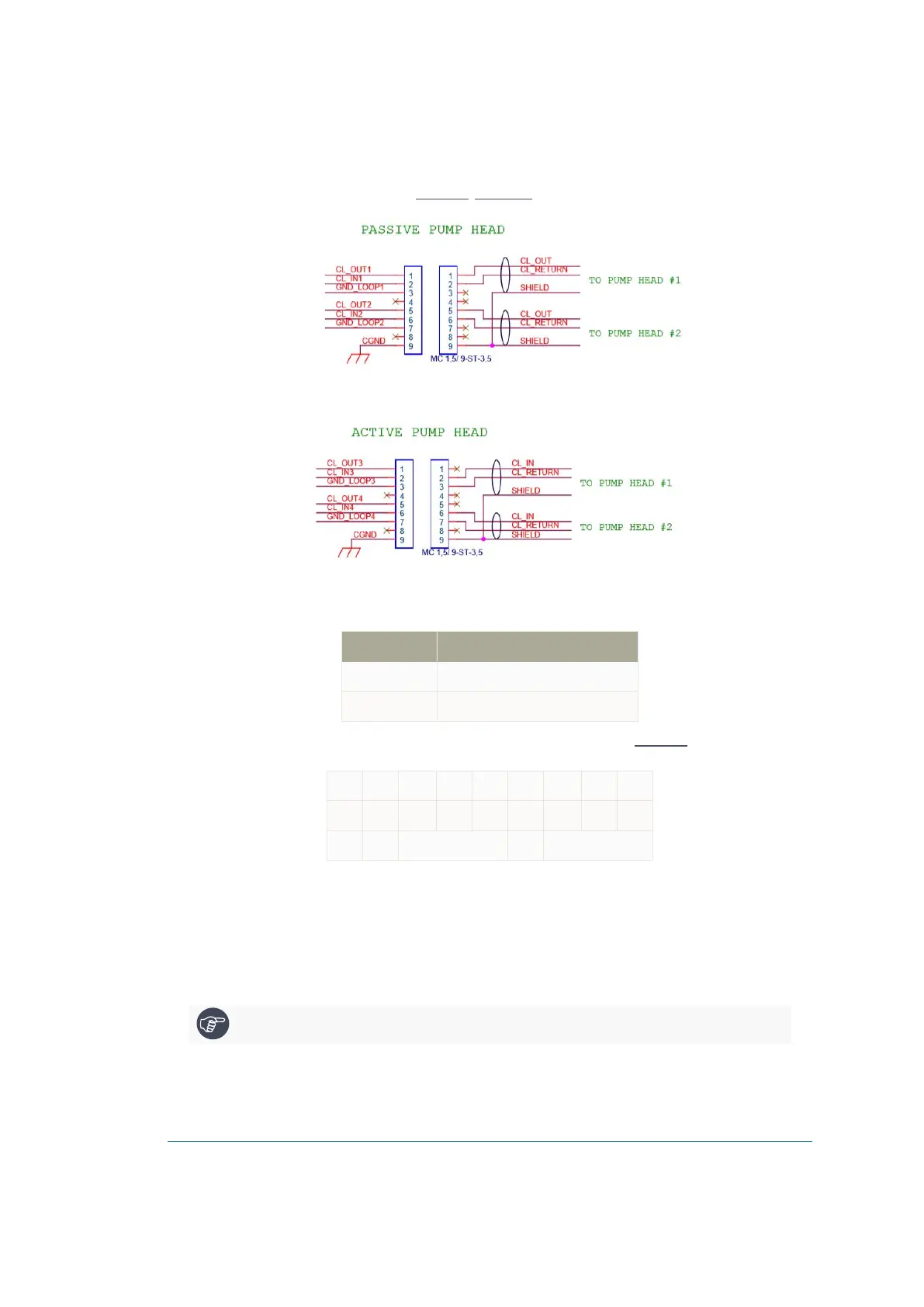

Figure 2-2 - CurrentLoop Connections Diagram
Parameter Value
Voltage 12V
Current 20mA or 45mA, SWconfigurable
Table 2-1 - OrPAY1000 with Current Loop
Specifications
The following pinout is required for the LANto Current Loop configuration (see Table 2-2):
9 8 7 6 5 4 3 2 1
E G - + G - +
Channel 2 Channel 1
Table 2-2 - Current Loop Connector Pinout
2.3.2. MPI-C
OrPAY1000 with an embedded MPIC-MSR card (P/N 819527860) authorizes the dispenser to start a sale
transaction. Without this authorization signal, the electric valve (or pump) will not open and the sale
transaction will not begin. The MPI-C card switches the AC power signal (in and out signals) to the valve. Each
MPI-Ccard supports 2 mechanical pumps.
Note: MPI-CI/Ois low voltage only.
4 OrPAY1000 Installation and Setup Manual
