GILBARCO VEEDER-ROOT Orpak OrPAY1000 User Manual

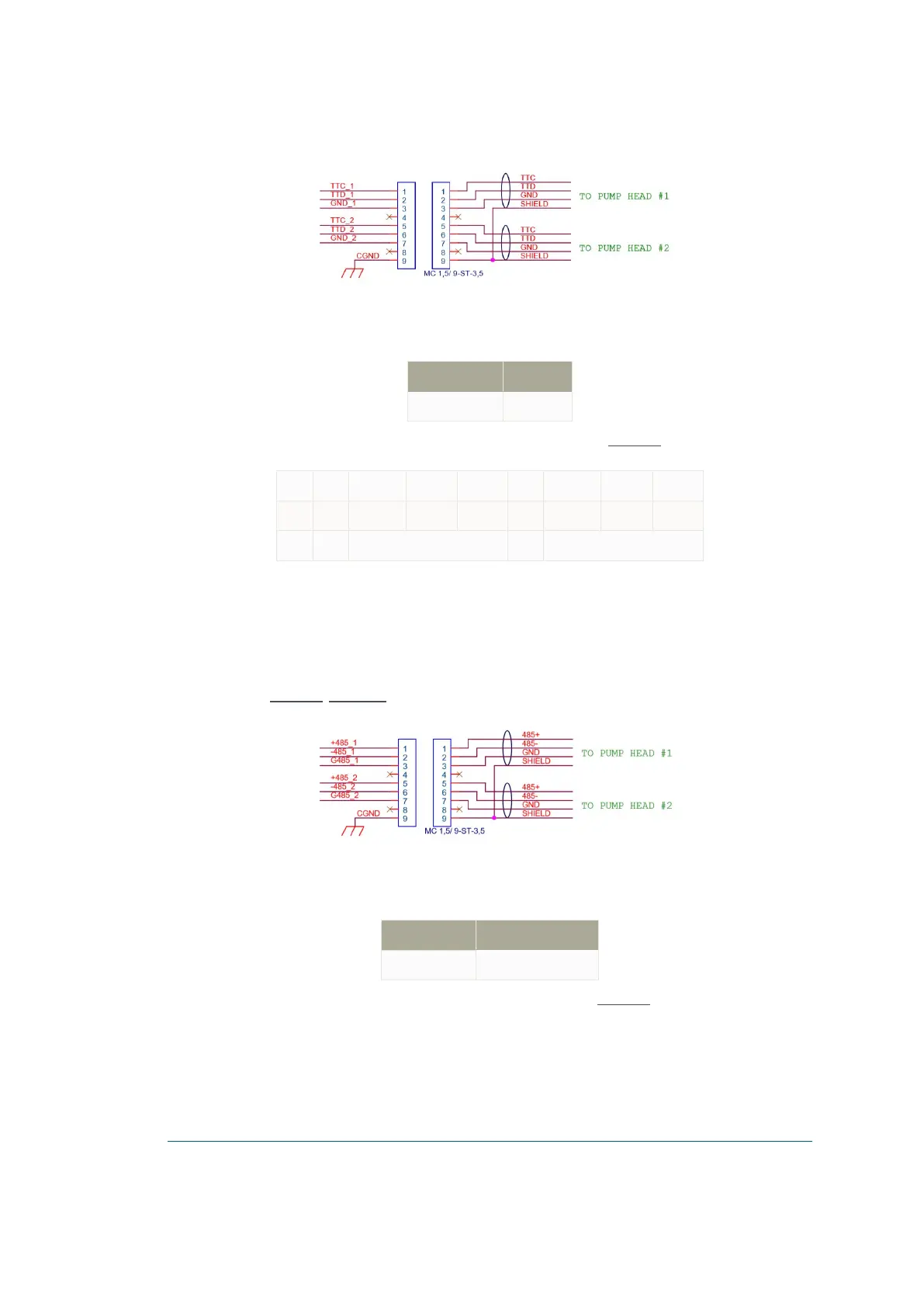

Figure 2-4 - TokheimConnections Diagram
Parameter Value
Voltage 5V to 12V
Table 2-5 - OrPAY1000 with
Tokheim Specifications
The following pinout is required for the LANto Tokheim configuration (see Table 2-6):
9 8 7 6 5 4 3 2 1
E COM TTD TTC COM TTD TTC
Channel 2/4 Channel 1/3
Table 2-6 - Tokheim Connector Pinout
2.3.4. RS-485
OrPAY1000 with an embedded RS-485 card (P/N 819527870) is required when connecting fuel pumps and
other serial devices to the homebase controller that uses TCP/IP communication.
The following lists the electrical specifications and limitations for the OrPAY1000 with an embedded RS-485
pump card (see Table 2-7, Figure 2-5):
Figure 2-5 - RS-485 Connections Diagram
Parameter Value
Baud Rate SWconfigurable
Table 2-7 - OrPAY1000 with RS-485
Specifications
The following pinout is required for the LANto RS-485 configuration (see Table 2-8):
6 OrPAY1000 Installation and Setup Manual
