3.3.1.1. AC to DC Power Supply
Output voltage: 12-24VDC (stabilized) 4A Minimum
Degree of Protection: IP65 or higher
Operating temperature: -40°c to 70°C
Storage Temperature: -40°C to +85°C
Operating humidity: 95% RH non-condensing
The power supply may be installed in any of the following locations, per customer requirements:
Office
Pedestal
Tanker Truck Cabin (DCto DCpower supply only)
Stand alone box
On the dispenser head in an authorized location, approved by the dispenser manufacturer for the
specific region
Note: For installations where more than one OrPAY1000 draws from a single power supply,
consult with Orpak Tech Support to recalculate current consumption and power supply
requirements.
3.4. Installation Kit
The following table details the available installation kits for the OrPAY1000 (see Table 3-1, Table 3-2, Table 3-
3):

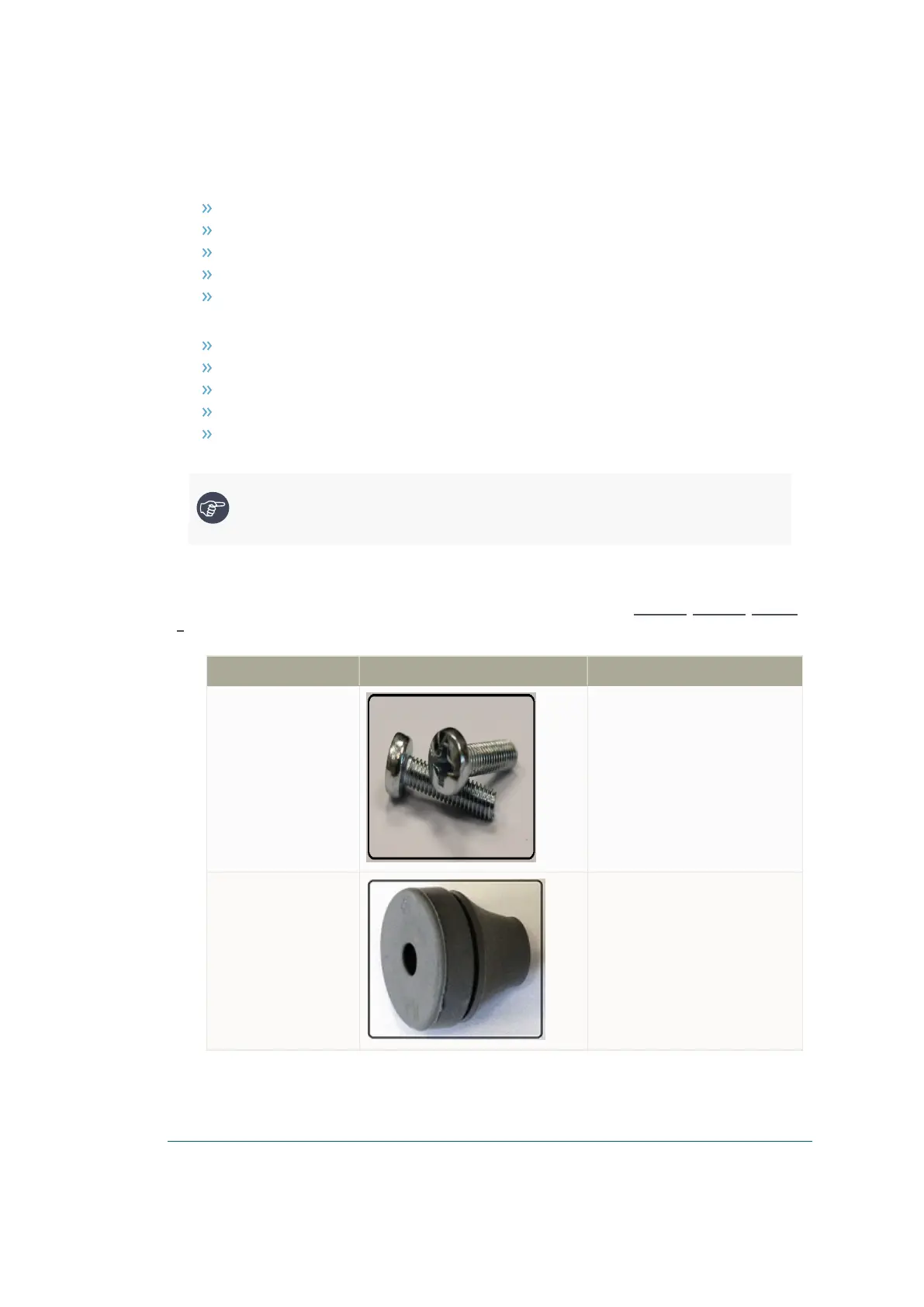

Description Image (front) Image (rear)
Mounting screws
stainless Steel, M4x12
mm (x4)
Rubber isolator (one for
each wire)
Table 3-1 - L-Bracket Installation Kit
23 OrPAY1000 Installation and Setup Manual
