4.2.2. Installation with Bracket on Pump
The following table details the installation kit for installing the OrPAY1000 on the door of the pump (see
Table 4-1):
P/N Description Quantity
814127000 SEAL BACK
OrPAY1000
1
814329400 PUMP MOUNTING HOLDER-
OrPAY1000
1
815228300 SCREW, M4x12 SST+2 WASHERS 4
815804000 CABLE TIE KSS CV-140B 150x4 mm 4
Table 4-1 - Pump Mounting Kit - P/N 819027892
To install the OrPAY1000 at any non-hazardous area of the fuel pump, proceed as follows:
1. Shut down any power source at the installation and working area
2. Open the fuel dispenser door and locate a non-hazardous area
3. Select a non-hazardous area in the pump where you can install the OrPAY1000. The area should be
a flat panel with a thin metal panel where you can attach the OrPAY1000
4. Identify the prescribed location of the OrPAY1000 on the fuel pump housing. Draw a horizontal
reference line to allow correct alignment of the lower edge of the drilling template
5. Use the drilling template (place the plate with the arrow facing upwards), and mark the five holes on
the mounting surface
6. Drill five 4 mm holes in accordance with the template
7. Drill the middle hole to the final diameter desired, based on communication and power cables used
8. Thoroughly clean burrs on the hole edges
9. Drill the four corner holes to the final diameter - 4 mm
10. Inspect the hole and check for correct location according to the template
11. Clean the surface intended for installing the OrPAY1000
12. Insert the OrPAY1000 into the surface mounting bracket without place holders
13. Using four SEMS screws M4 x 12 mm (P/N 815228300), attach and tighten the OrPAY1000 to the
bracket

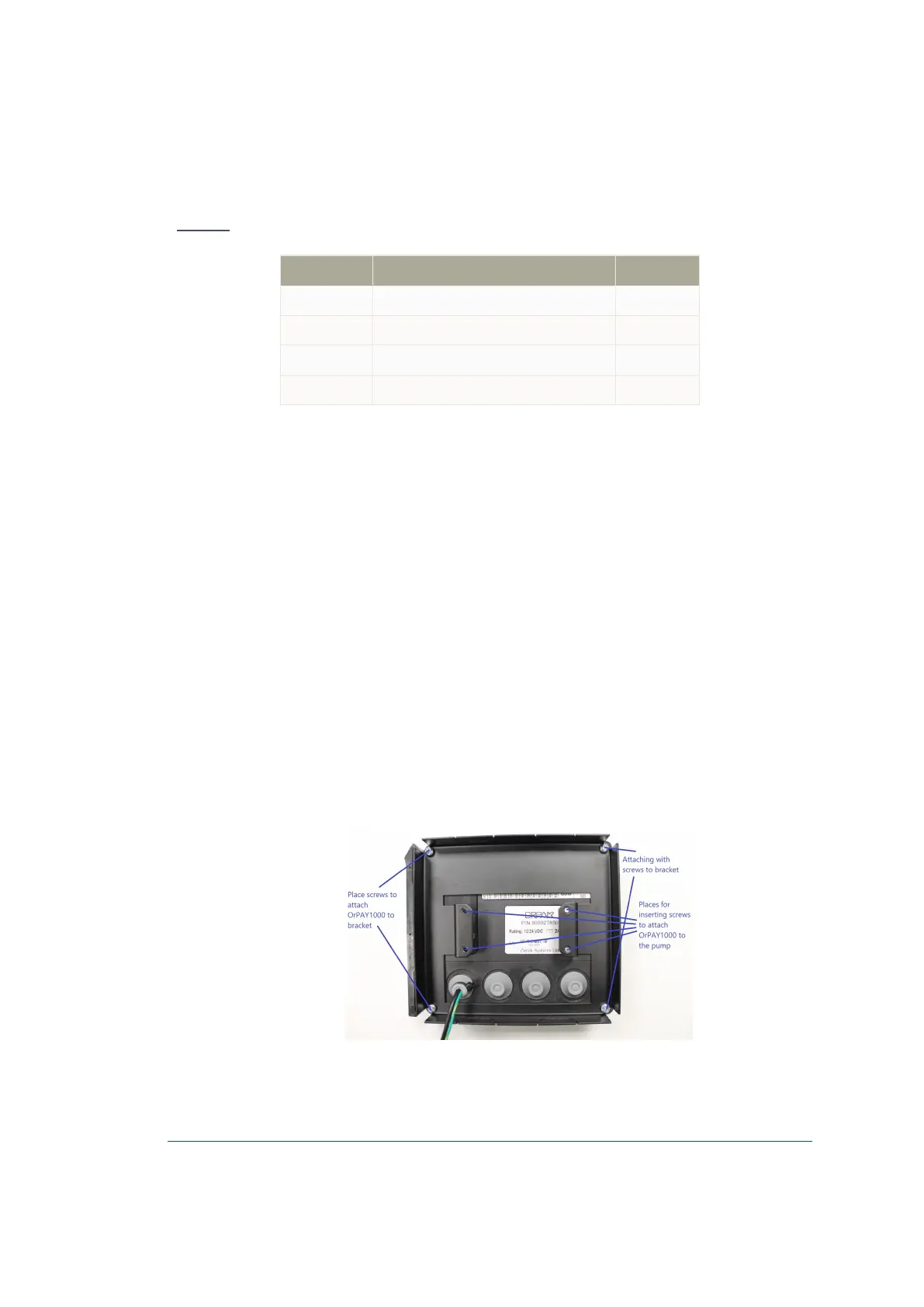

Figure 4-1 - OrPAY1000 Tightened to Bracket
27 OrPAY1000 Installation and Setup Manual
