Note: If the channel configuration is not displayed properly after saving all changes and
resetting the device, clear your browser cache and reload the page.
5.4.2.2.1. CurrentLoop Setup Settings
The following details the channel settings required for a Current Loop pump interface.

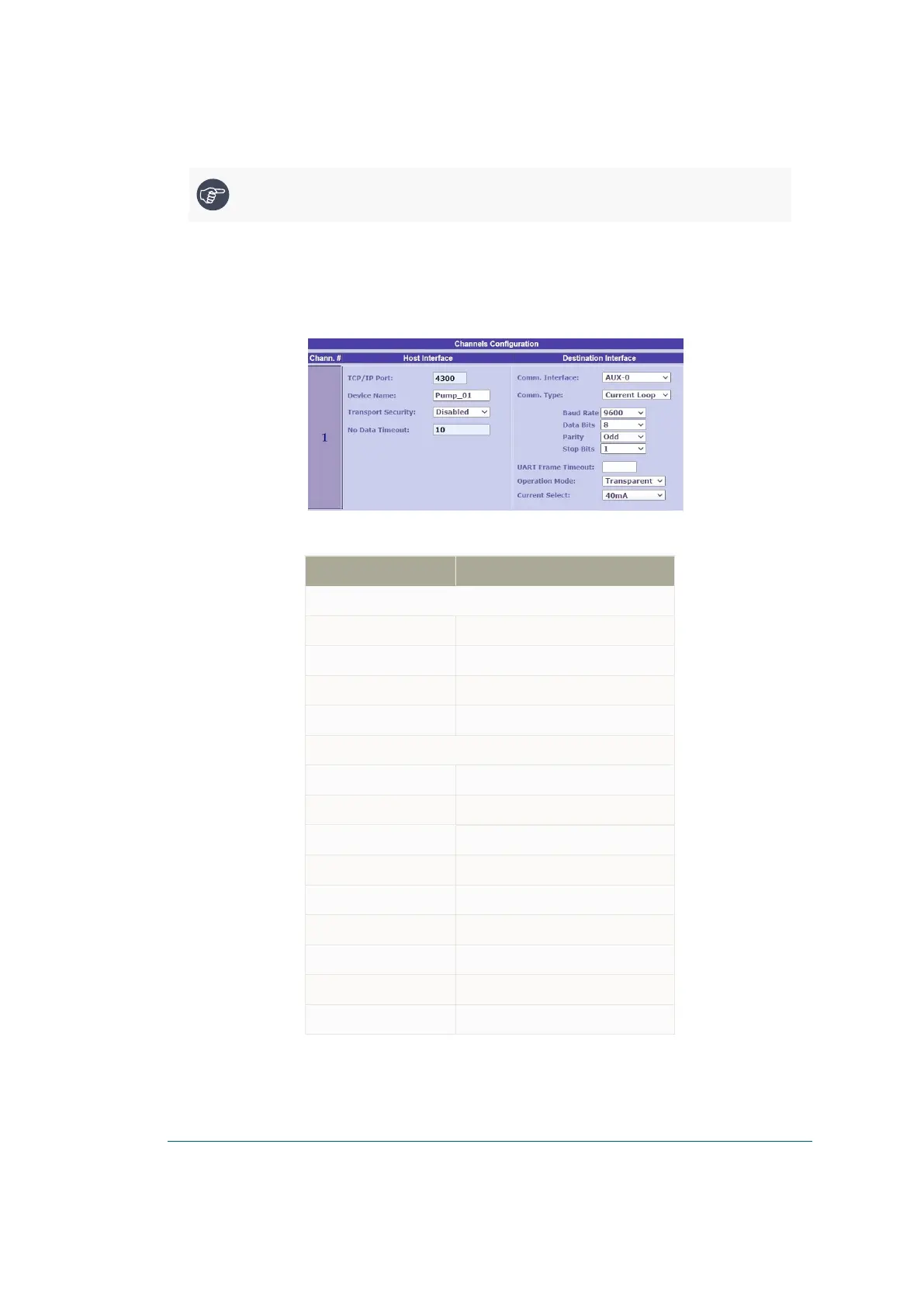

Figure 5-23 - Current Loop Configuration
Interface Setting Value
Host
(left column)
TCP/IPPort
Any port between 1023-65000
Device Name
Name to identify the device
Transport Security
Disabled
No Data Timeout
Select timeout
Destination
(right column)
Comm. Interface Select the communication interface
Comm. Type Current Loop
Baud Rate 9600
Data Bits 8
Parity Select the parity:
Even
/
Odd
/
None
Stop Bits 1
UARTFrame Timeout: Select the frame timeout
Operation Mode Transparent
Current Select Select the current:
20mA
/
40mA
Table 5-7 - Current Loop Channel Configuration
OrPAY1000 Installation and Setup Manual 52
