GlobalPowerTechnologies  2-2
5120
MounttheTEGtoarmandstablebase,using1/4-20bolts,SeeAppendixFigure42,page
7-2,for mountingholelocations. Thebasemustbe levelandsturdyenoughto supportthe
41kg(90lb)TEG.TheTEGshouldbemountedhighenoughtoavoiddirectoodingorheavy
snowfallinterferingwiththeowofcoolingair.Allowaminimumof150mm(6in.)clearance
underthecoolingns.
WARNING:  Operation of the TEG in locations where cooling air ow may be
obstructed will cause overheating of the TEG.

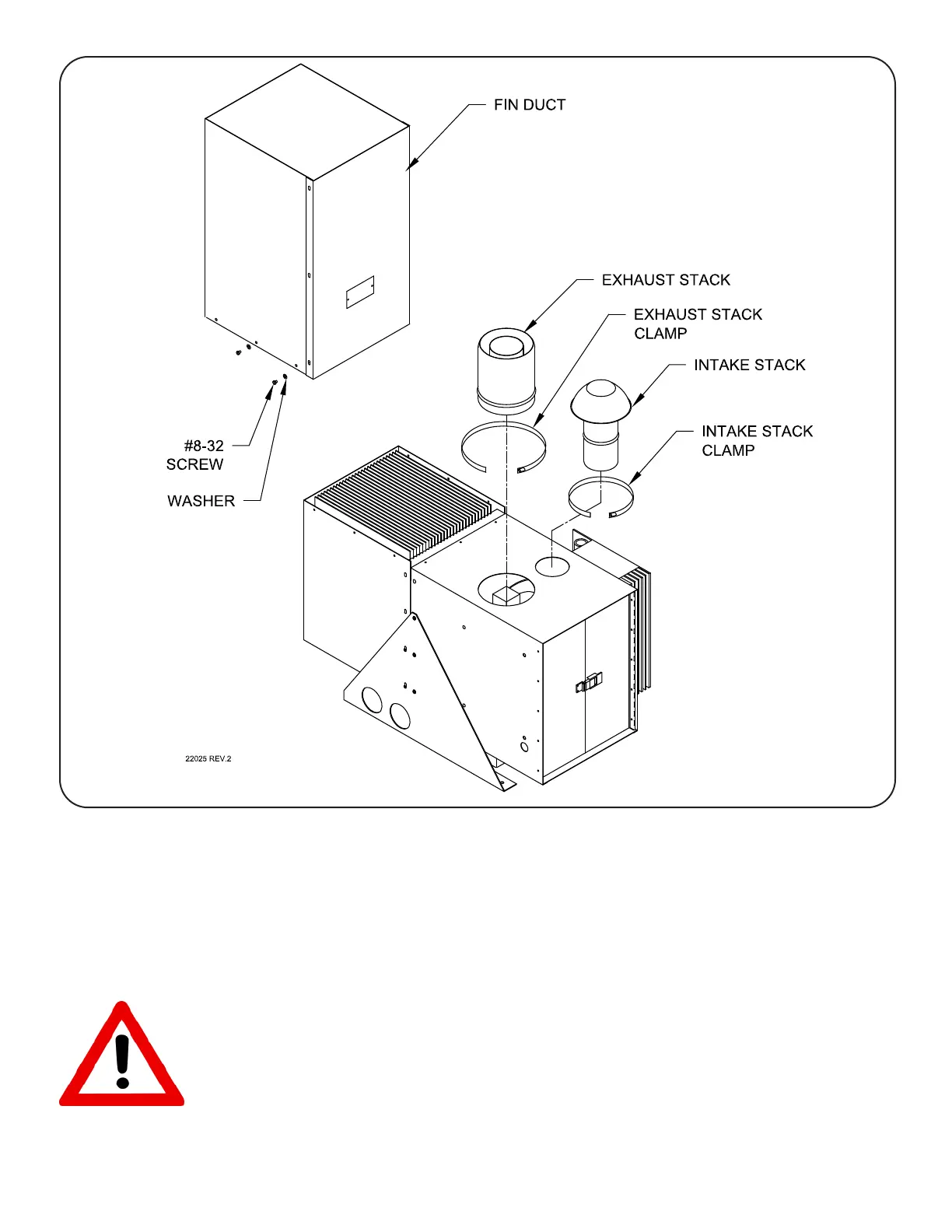

Figure 2AssemblingTEG
