Global 5120 - Figure 14 Teg Main Parts

GlobalPowerTechnologies  3-4
5120

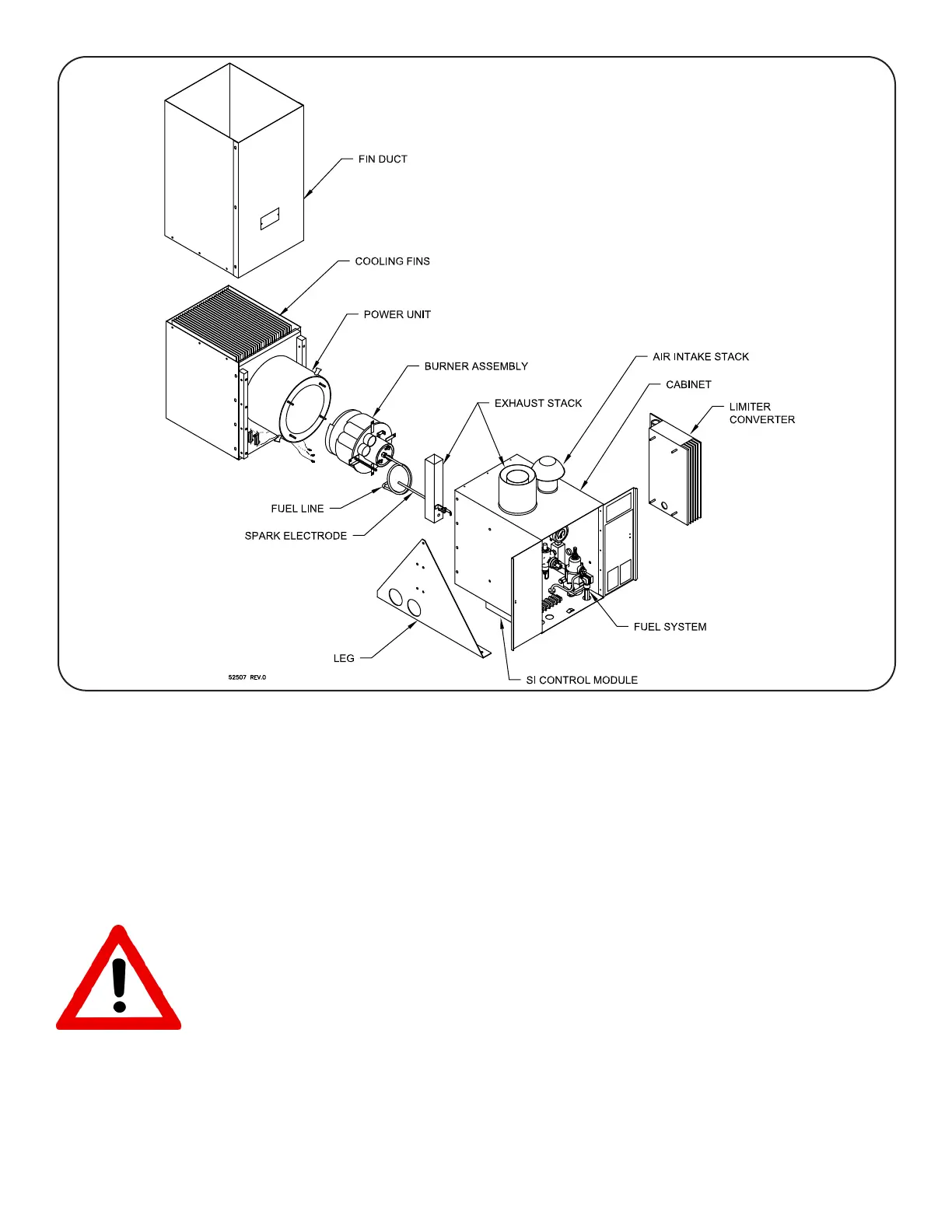

Figure 14 TEGMainParts
1) PlacethejumperinV
set
positionbetweenterminals3and4ofTB-1.
2) Connectavoltmetertoterminals2(+)and4(-)
3) Open the circuit by quickly removing the jumper from the terminal block.  Record the
voltagewithin2seconds.Itwillincreasequicklyandshouldbeapproximately13volts.
Immediatelyreplacethejumper.
4) Ifthemomentaryopencircuitvoltageisbelow12volts,thentheTEGisoperatingcold
andthefuelsystemandburnershouldbethoroughlycheckedand/oradjusted.Ifthe
momentaryopencircuitvoltageappearsreasonable,butV
set
remainsbelow6.7volts,
thenthepowerunitisdamagedandwillneedtobereplaced.
WARNING: Do not let the open circuit voltage exceed 13.5 Volts
