Global 5120 - 2.7 Customer Load Wiring

GlobalPowerTechnologies  2-10
5120
1) Toadjustthefuelpressure,removethecoverontheregulatorandloosenthelocknut.
2) Turntheadjustingscrew(clockwisetoincreasepressure)untiltherequiredchangein
pressureisobtained.
WARNING: Do not exceed the following values:
Natural Gas: 31 kPa (4.5 psi)
Propane: 45 kPa (6.5 psi)
3) Waitatleast10minutesbeforemeasuringV
set
.IftheTEGstilldoesnotreachV
set
value
thenaproblemexistswithoneoftheTEG’ssystems.Seesection3.3,troubleshooting,
forevaluation.
4) Replacethecoveronthefuelregulator.
2.7 Customer Load Wiring
1) Useonlycopperwire,properlysizedfortheloadcurrent.
2) Bringthecustomerloadwiresthroughthestrainreliefbushing(locatedontheTEGcab-
inetoor).AllowenoughwiretoconnecttotheterminalblockTB-1.
3) Tightenthescrewsonthestrainreliefbushing.
4) Connectthecustomerloadwirestoterminals5(-)and6(+).

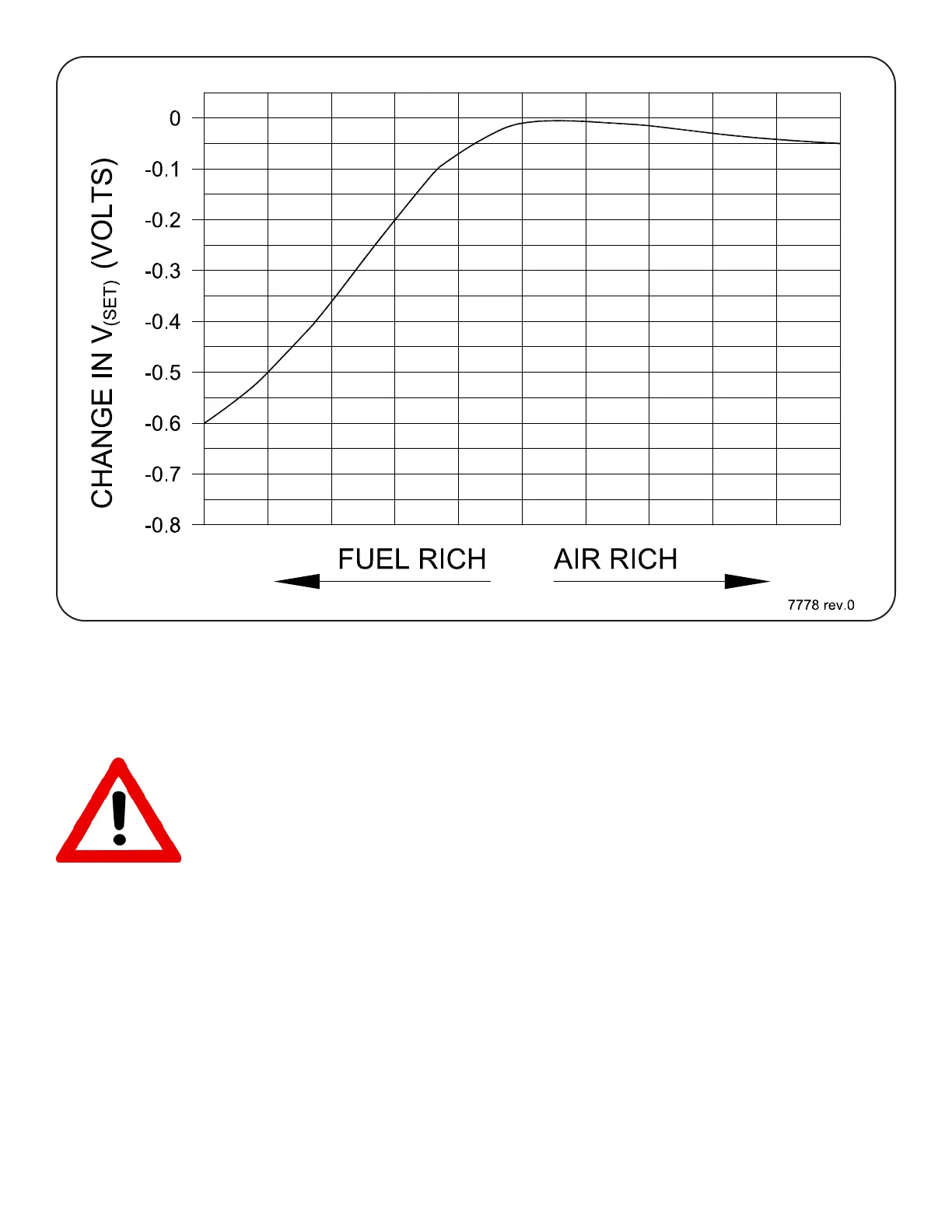

Figure 11ChangeinV
set
vsAirShutterSetting
