Global 5120 - Figure 8 V; Figure 9 V

GlobalPowerTechnologies  2-8
5120
2.6.2 V
set
(Power) Check
Afterignitionhasoccurredthevoltagebetweenterminals2(+)andterminals4(-),thatis,V
set
willbegintoclimbasshownonthegraphinFigure9.
TheV
set
willrisequicklyatrstthenbegintolevelout.ItwilltakeatleastonehourfortheV
set
tostabilize.WhenV
set
nolongerchanges(±0.2Vintenminutes)comparethisvaluewithrated
V
set
asdeterminedinsection2.6.1,theseshouldbewithin0.2Voltsofeachother.
IfthemeasuredV
set
isgreaterthanratedV
set
thenthefuelpressureneedstobereduced.If
themeasuredV
set
islessthanratedV
set
thenproceedasfollows.
2.6.3 Elevation Adjustment
Checkthefuelgaugepressure.Itshouldbeneartothepressureindicatedonthedataplate.If
theTEGislocatedatadi󰀨erentaltitudethanthefactory,(750mor2460ft.)thepressurewill
alsobedi󰀨erent.SeeFigure10.

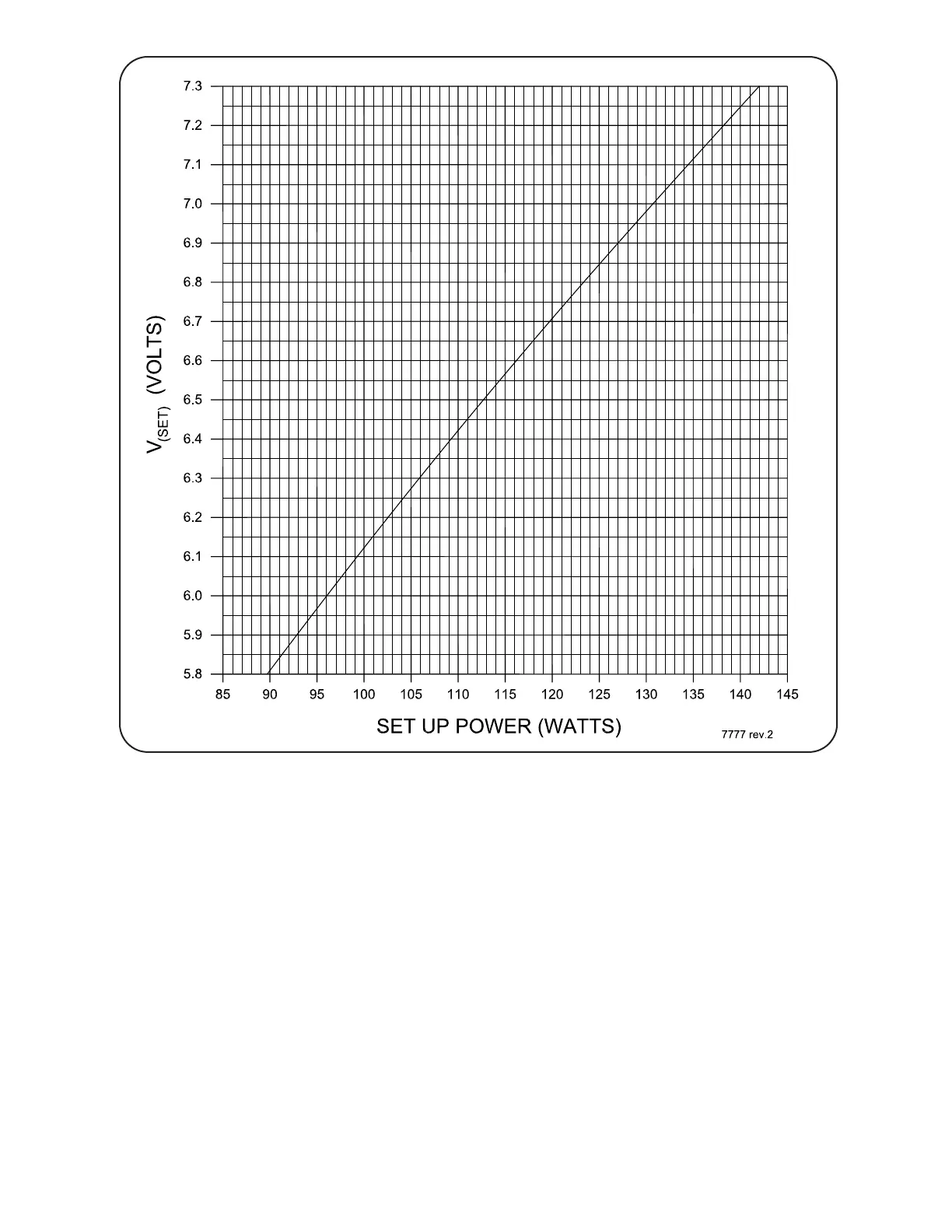

Figure 8V
set
VsSetUpPower
