Global 5120 - 5 Cathodic Protect Interface System

GlobalPowerTechnologies  5-1
5120
5 Cathodic Protection Interface System
5.1 Introduction
TheCathodicProtectionInterfaceprovidesforadjustmentandmonitoringofpowertotheCP
load.Theanodeandcathodecablesenterthecabinetatthebottomandconnectdirectlyto
theheavydutyterminalblock. RefertoFigure 27forlocations anddescriptionof themajor
componentsoftheCPInterfaceCabinet.
5.1.1 Meter
The dual scale meter displays voltage at the terminal block, and current when the PUSH
TOREADAMPSbuttonisdepressed.Themeterisaccurateto+/-3%offullscale.

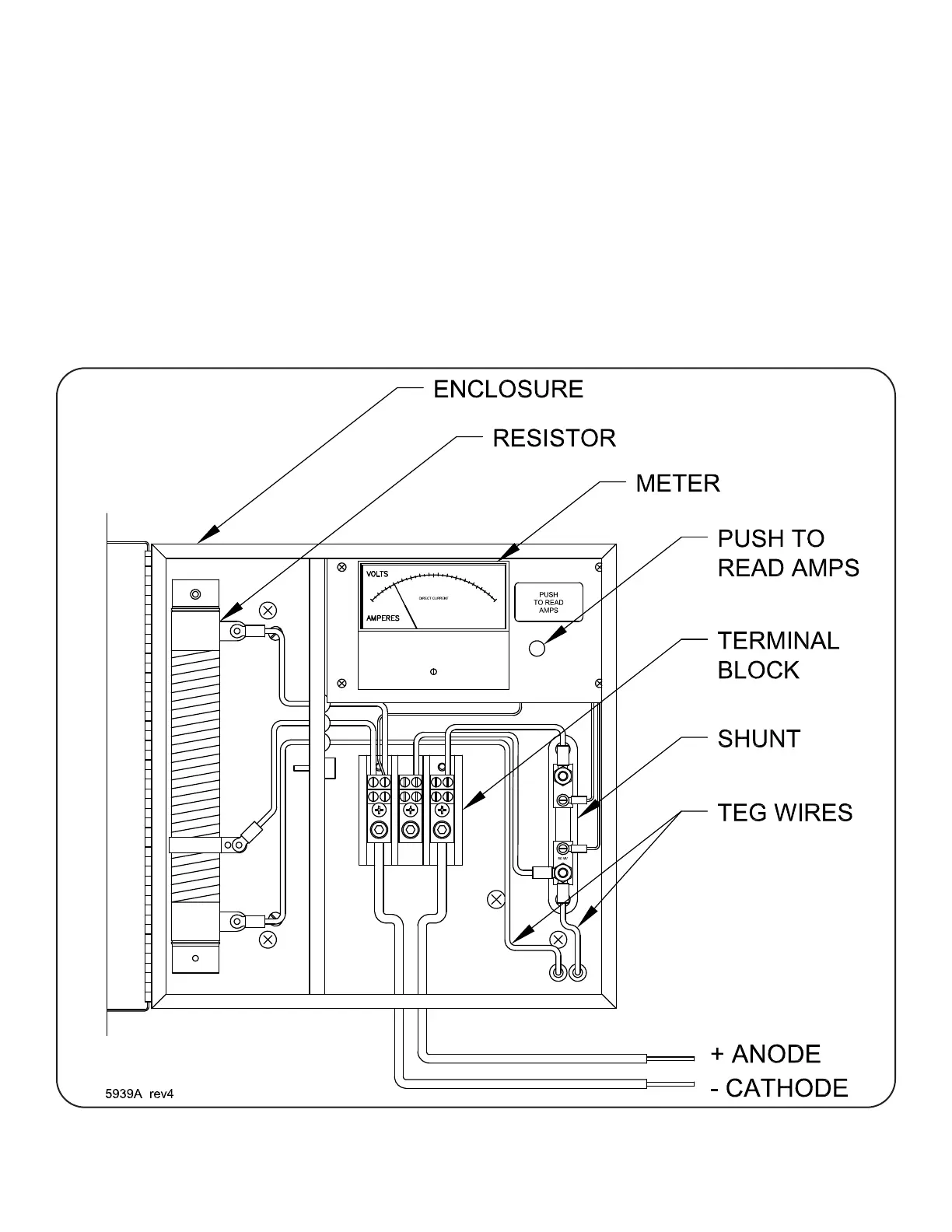

Figure 27CathodicProtectionInterfaceCabinet
