Global 5120 - Figure 31 Flame Arrestor Kit - Installed

GlobalPowerTechnologies  6-3
5120
6.2 INTRODUCTION
The ame arrestor kit for the model 5120 Thermoelectric Generators consists of three main
sub-assemblies.Theseare:
1. AnAirIntakeFlameArrestorKit,GPTP/N4900-23043.
2. AFlameArrestorStackAssembly,GPTP/N4500-50221,plusGasket,GPTP/N4500-
50198andstackspacer,GPTP/N4900-50196.
3. ARainCapAssembly,GPTP/N4500-51516&Flange,ExhaustStackP/N4500-28376
4. ALabeltoapplytothefrontdooroftheTEG,GPTP/N3600-50232
PleaserefertoFigure31toidentifythesemajorsub-assembliesasinstalledonaModel5120
ThermoelectricGenerator.

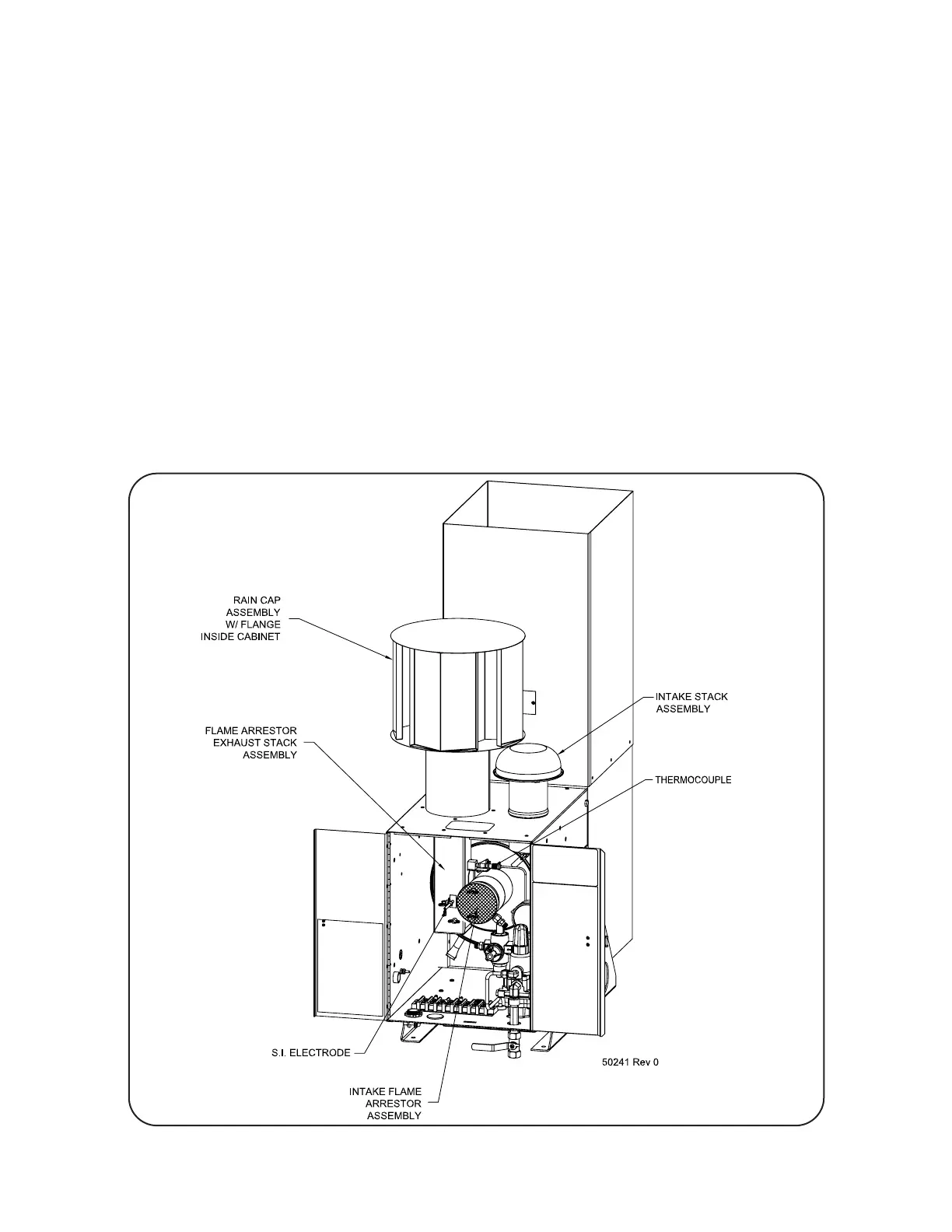

Figure 31FlameArrestorKit-Installed
