Global 5120 - 7 Appendix; Electrical Output Characteristics

GlobalPowerTechnologies  7-1
5120

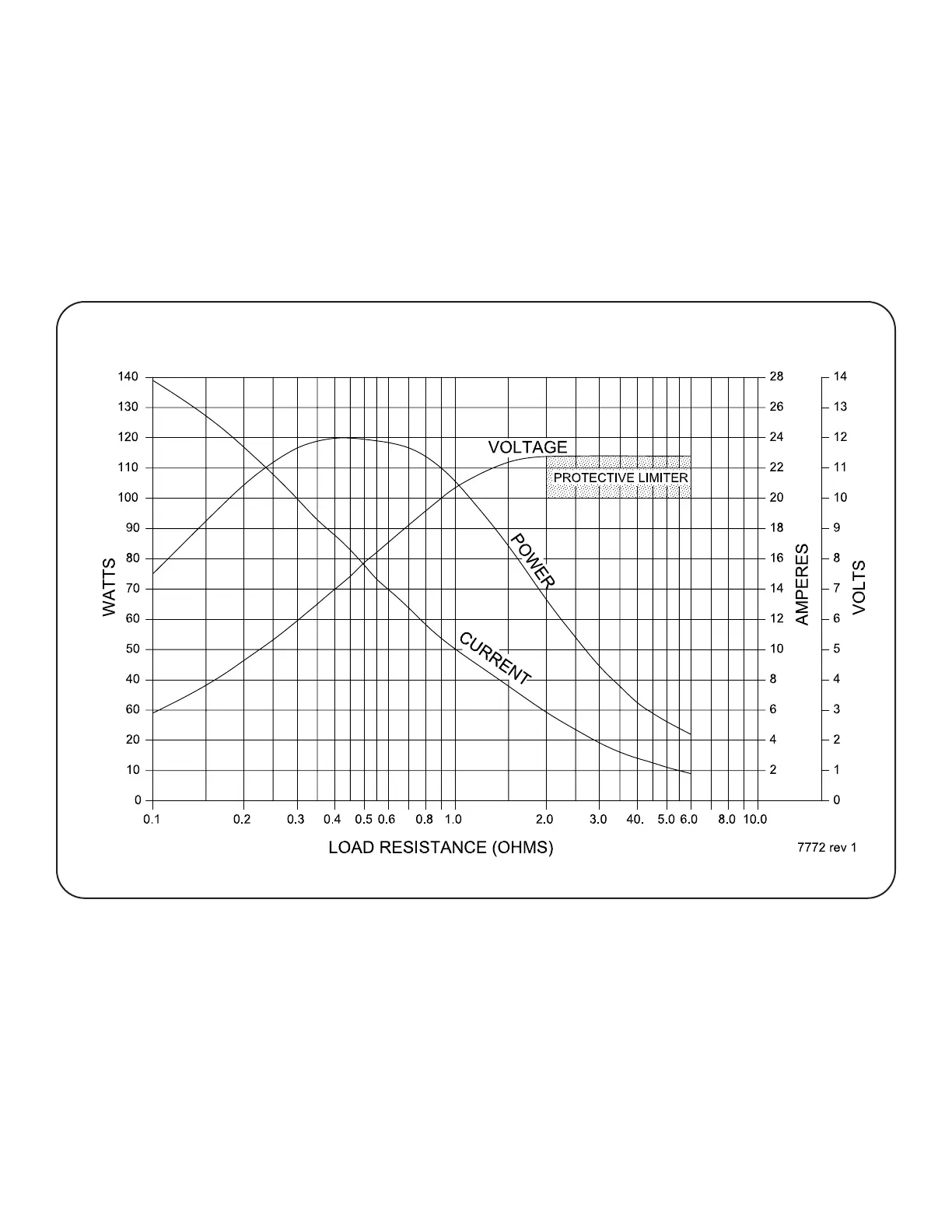

Figure 41GrossPowerUnitElectricalOutputCharacteristics@20°C,BeginningofLife
7 Appendix
7.1 Electrical Output Characteristics
TheelectricaloutputofaModel5120TEGisshownonthegraphinFigure41.Notethatthe
powergoesthroughabroadmaximumbetween0.3and0.5ohms.Theratedpowerof120
Wattscanbeobtainedonlyiftheloadresistanceiswithinthisrange.
