Global 5120 - Page 73

GlobalPowerTechnologies  6-16
5120

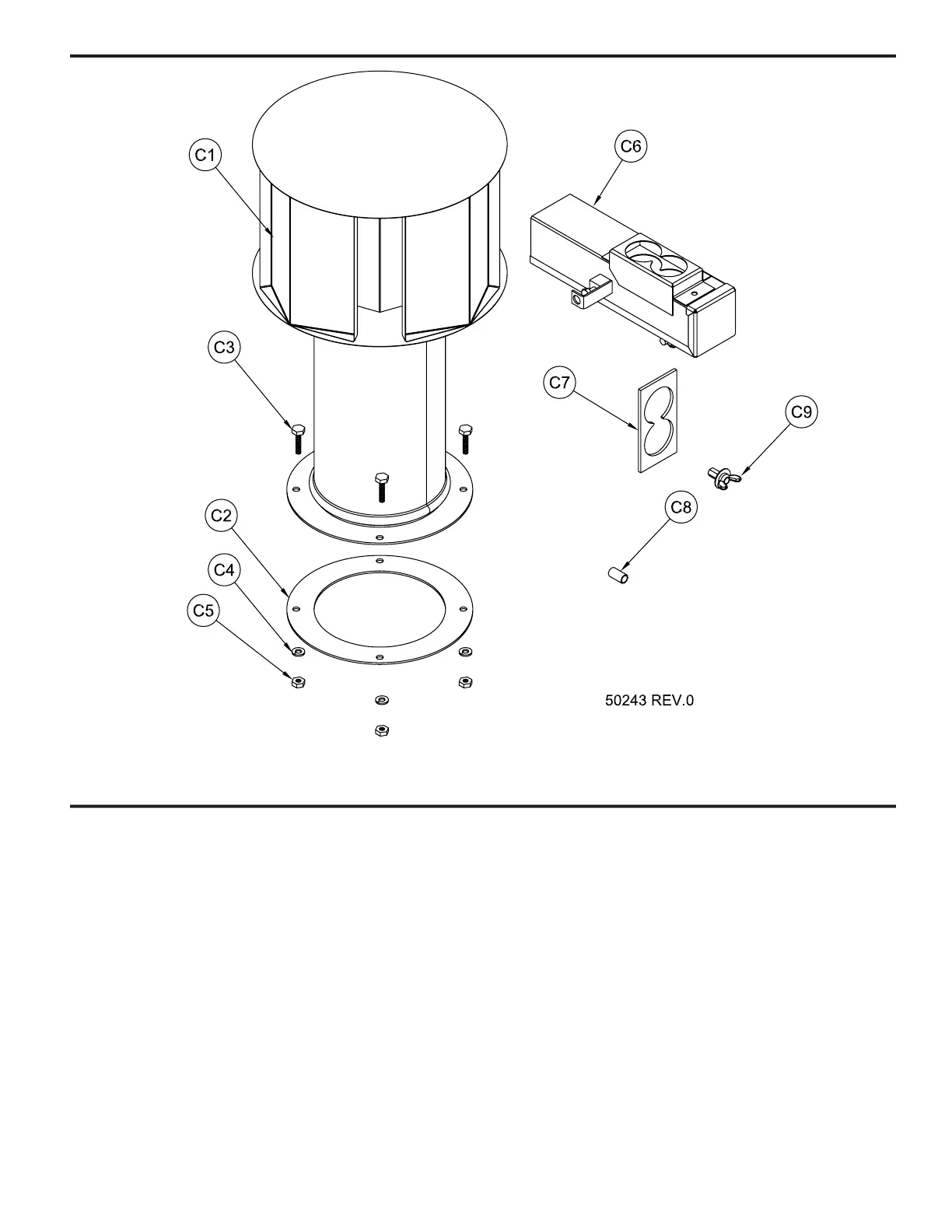

Figure 40FlameArrestorParts
C1 4500-51516 ExhaustStackAssembly,w/RainCap,5060/5120
C2 4500-28376 Flange,ExhaustStack
C3 2514-00258 Screw,Mach,P-H-P,1/4-20x5/8,SS
C4 2814-00557 Washer,Flat,1/4”,SS
C5 2714-00611 Nut,Hex,1/4-20,SS
C6 4500-50221 ExhaustStackAssembly,Inner,5120FlameArrestor
C7 4500-50198 Gasket,StackSeal,FlameArrestor
C8 4500-50196 Spacer,StackAssembly,FlameArrestor
C9 4500-50225 Coupling,Extension,10-32x3/4”
Item Part No. Description
