INTRODUCTION

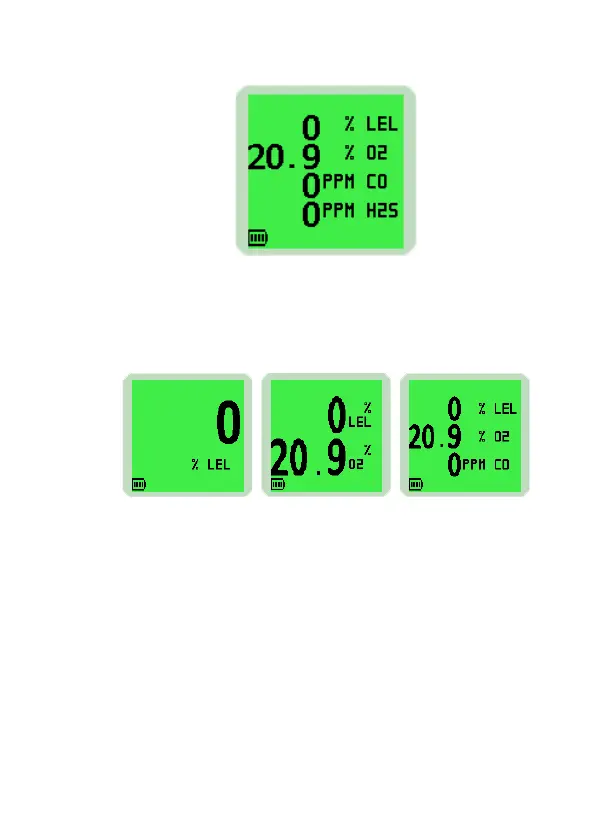

Fig. 1-2 Display Example (4-Gas)
Note: If congured with less sensors, the character size is
adjusted accordingly to maximise the display, as illustrated
in Fig. 1-3.
1-Gas 2-Gas 3-Gas
Fig. 1-3 Display Examples
The display, illustrated in Fig’s 1-2 and 1-3, details the current
gas readings and operational / status information. Alternatively,
the instrument can be set up to display a simple ‘OK’ message,
as illustrated in Fig. 1-4.
