6.1.2 Recharge Instrument using the 5-way Charger
The 5-way charger (Part No. 64138) allows the user to charge
up to ve PS200 instruments simultaneously.

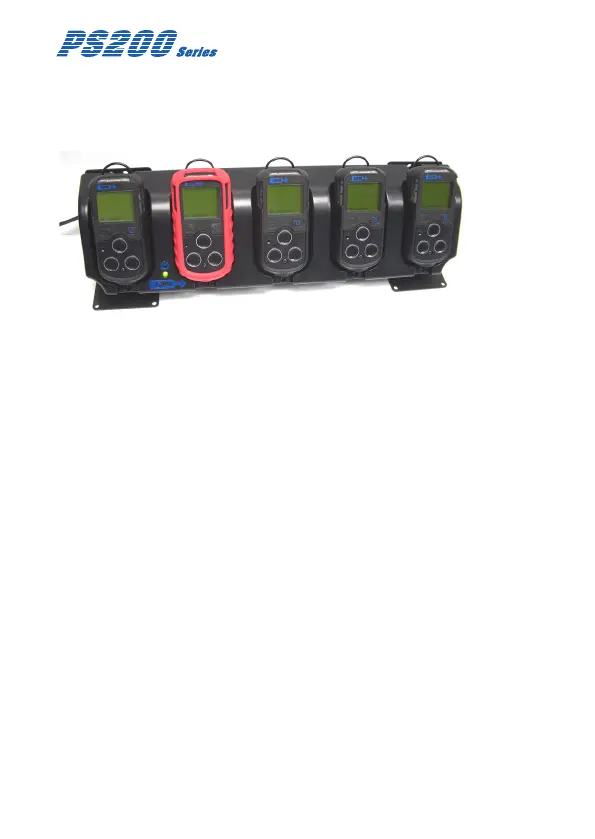

Fig. 6-2 5-Way Charger
The 5-way charger accommodates up to ve PS200 series
instrument(s) with or without protective rubber boot tted, as
illustrated in Fig. 6-2.
The charger is connected to mains supply using a universal
power supply unit (PSU) supplied with the charger.
The charger can be freestanding, wall or workbench mounted
by securing with suitable xings (not supplied).
Before the instrument is located in any of the ve charging
bays, it is recommended that the instrument is switched OFF,
the ‘alligator clip’ is in the closed position and the ‘belt hook’
is upright.
Install the instrument in one of the vacant charging bays
making sure that the locating tongue engages in corresponding
slot in the base of the instrument and ensuring that the
instrument is rmly seated in charging unit.
Charging is fully automated.
Instrument(s) can remain installed in the charger after charging
is complete.
