6-7

RECHARGE BATTERY

6.1.4 Recharge Instrument using the In-Vehicle

Charging Cradle

The charging cradle (Part No. 64491) enables the instrument

battery to be charged by connecting the USB cable to a vehicle

power source. Either, via an inbuilt USB socket or via the

vehicle charging adaptor (supplied), as illustrated in Fig. 6-5.

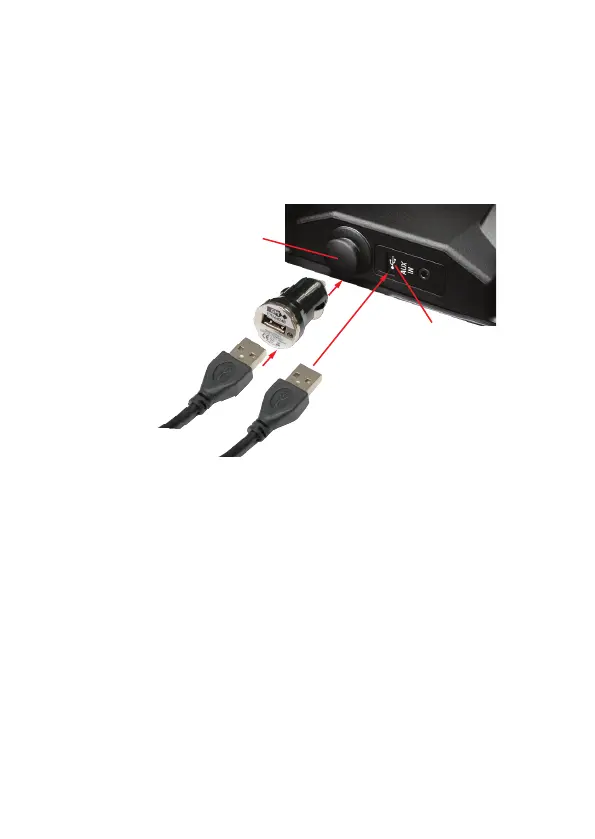

Vehicle Charging

Adaptor

USB Socket

Vehicle Accessory

Socket

Charging Cradle

USB cable

Fig. 6-5 Charging Cradle USB Cable Connection

The charging cradle is mounted to a vehicle by securing with

suitable xings (not supplied).

To charge the instrument:

1. Ensure the instrument is switched off.

2. Fully open the instrument alligator clip.

3. Move the PS200 down over the charging contacts and

onto the location blade, as illustrated in Fig. 6-6.
