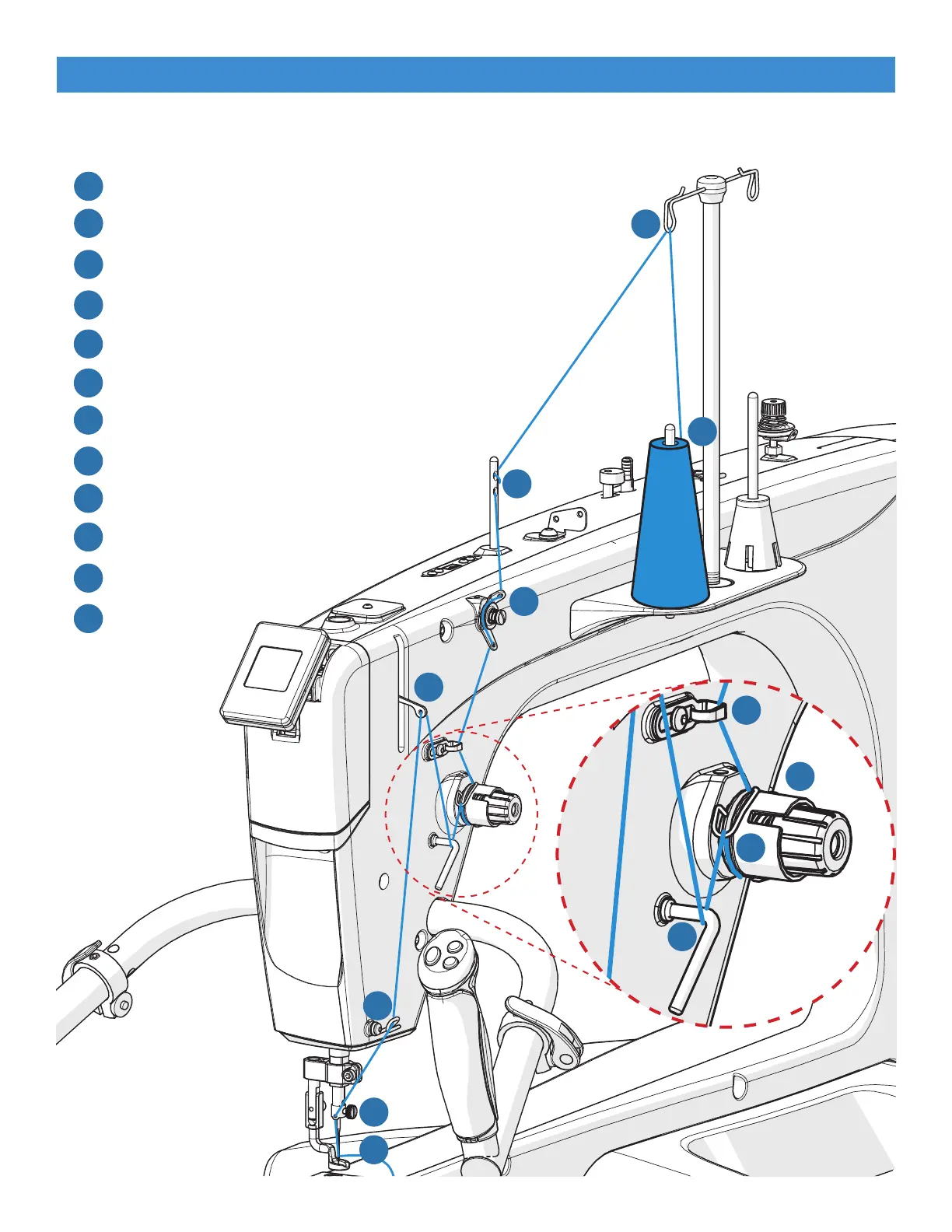

The following diagram outlines the path (shown in blue) the thread must take through the machine.
Threading the Machine (Continued)
Preparing to Quilt
1
4
10
2
9
3
11
12
6
7
1. Thread Cone
2. Thread Mast
3. Thread Guide Rod
4. Small Thread Tensioner
1
4
2
3
5. Right Thread Guide
6. Large Thread Tensioner
7. Tensioner Check Spring
8. Thread Guide
7
5
6
8
9. Take-up Lever
10. Bottom Thread Guide
11. Needle Bar Eyelet
12. Eye of Needle
9
10
11
12
