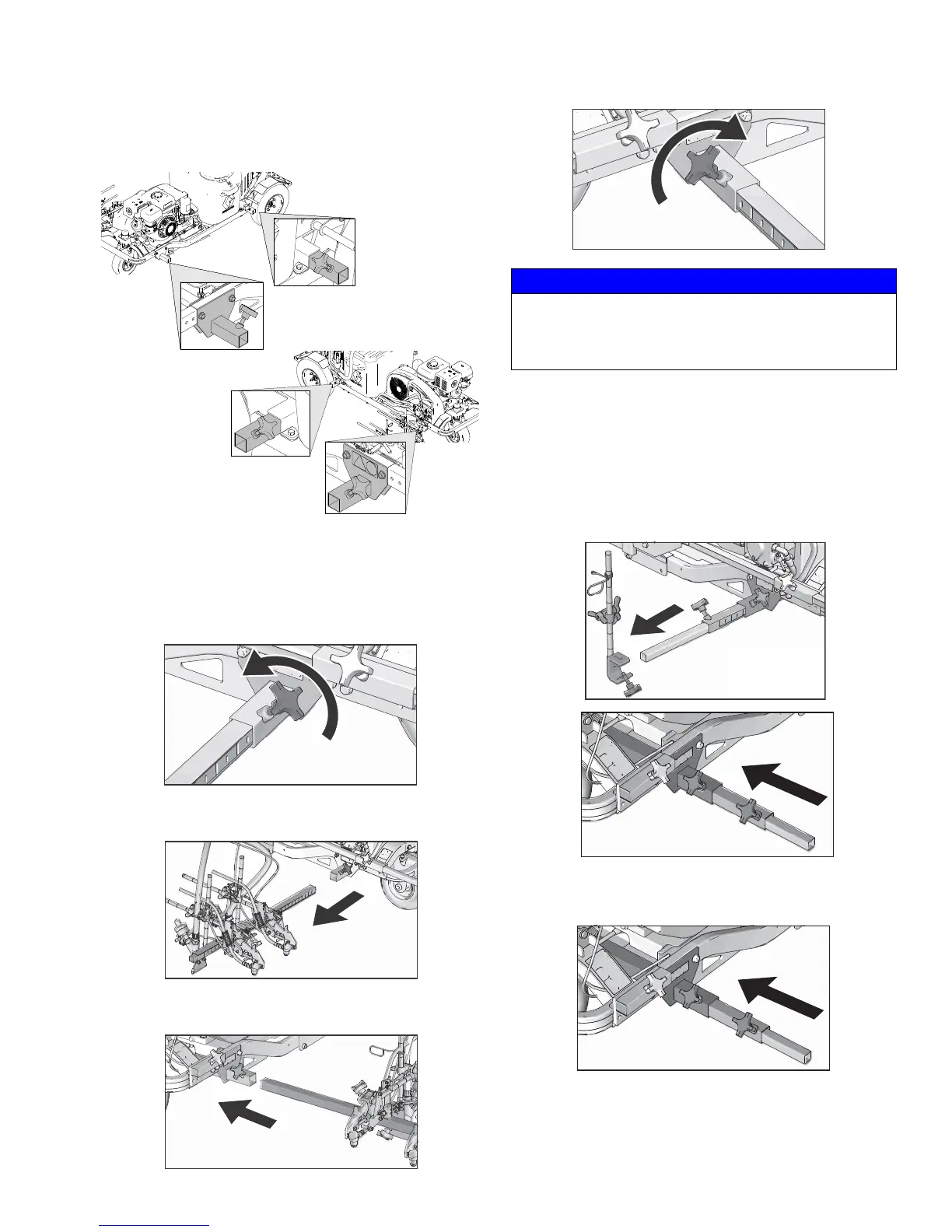

Gun Placement
3A3393C Operation 15
Gun Arm Mounts
This unit is equipped with front and rear gun arm mounts
on either side.
Change Gun Position
(Front and Back)
1. Loosen gun arm knob and remove from gun arm
mounting slot.
2. Slide gun arm assembly (including gun and hoses)
out from gun arm mounting slot.
3. Slide gun arm assembly into desired gun arm
mounting slot.
4. Tighten gun arm knob into gun arm mounting slot.
Change Gun Position
(Left and Right)
Removal
1. Loosen vertical gun arm knob on gun arm mounting
bar and remove.
2. Assemble mounting bar on opposite side of the
machine.
ti18556a
ti18555a
ti28200a
ti28201a
ti28202a
NOTICE
Make sure all hoses, cables, and wires are properly
routed through brackets and do NOT rub on tire.
Contact with tire will result in damaged hoses, cables,
and wires.
ti28203a
ti28204a
ti28205a
ti28205a
