Smart Control Operation
3A3393C Operation 29

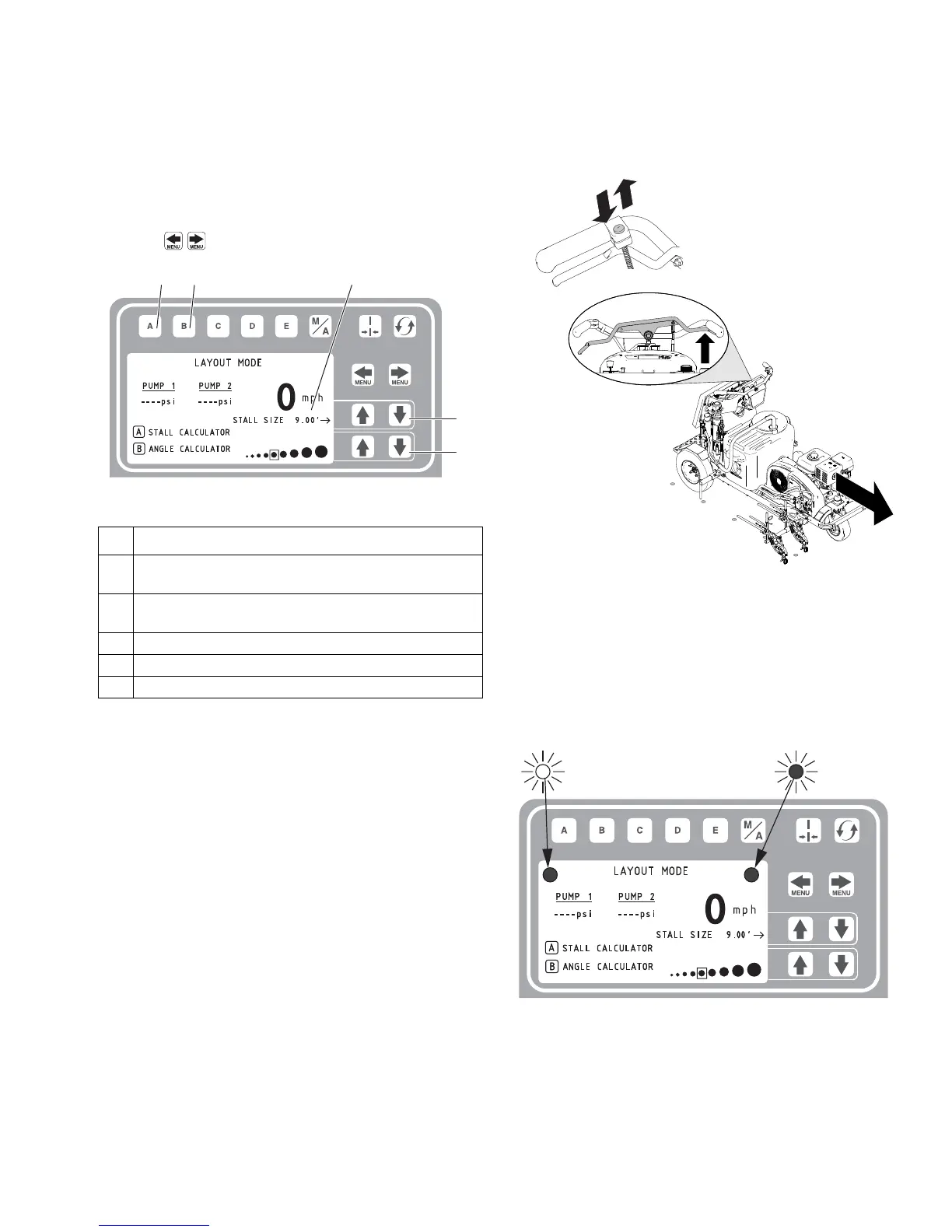

Layout Mode
Layout Mode is used to calculate and mark parking lot
stalls.
1. Use to select Layout Mode.
2. Press and release gun trigger control and move
striper forward.
3. Striper default is to place a dot every 9.0 ft (2.7m) to
mark the stall size. Stall size is adjustable.
4. Dots are laid down until gun trigger control is
pressed and released again.
An indicator before and after Layout Mode on the
screen alternately flash when gun trigger control is
pressed to signal mode is active.
Ref. Description
1 Opens Stall Calculator Menu.
See Stall Calculator, page 30.
2 Opens Angle Calculator Menu.
See Angle Calculator, page 31.
3 Distance between dots laid by striper
4 Adjust stall size/dot spacing width.
5 Adjust dot size.
*LLV 250SPS displays information for only 1 pump.
*LLV 250
SPS displays information for only 1 pump.
