Smart Control Operation
3A3393C Operation 31

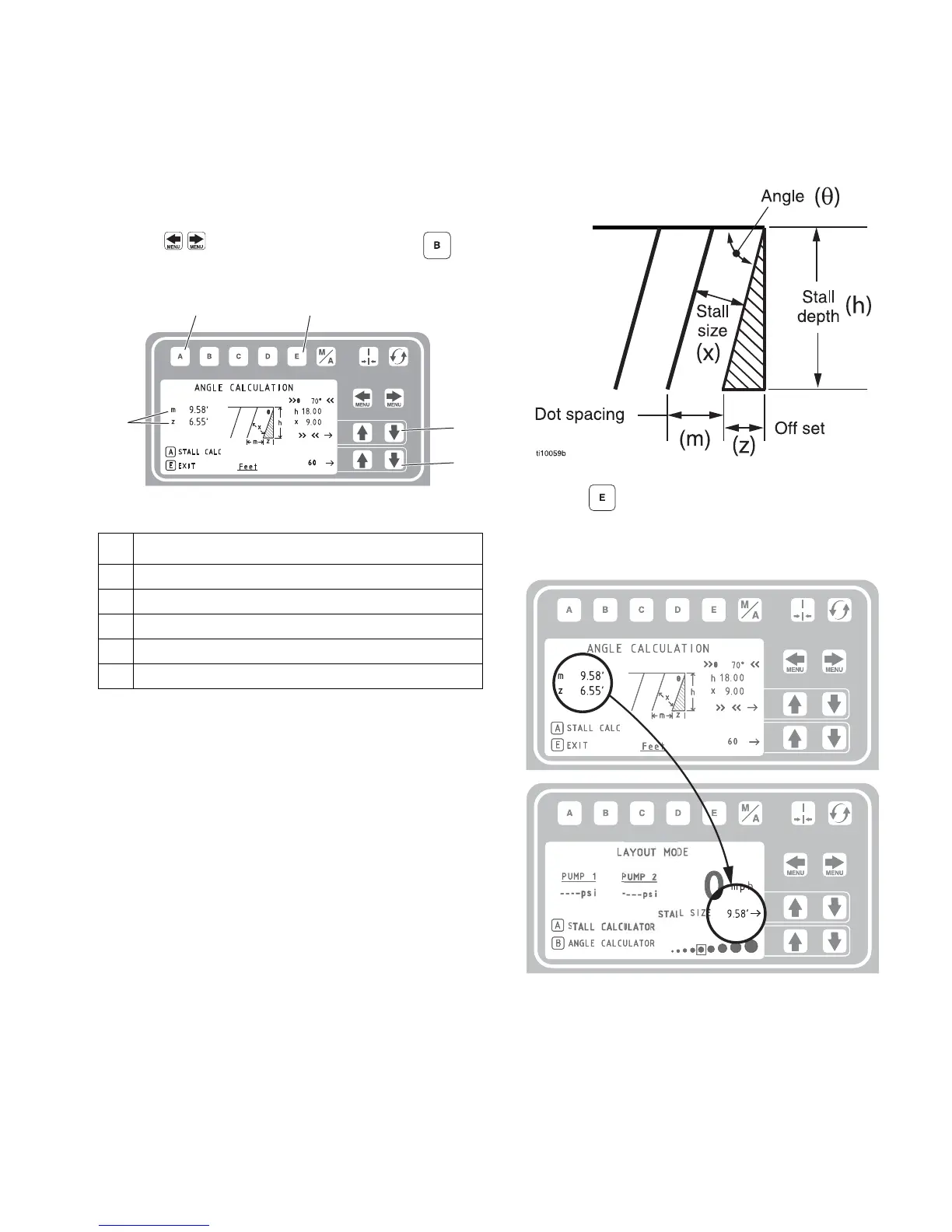

Angle Calculator
Angle Calculator is used to determine the offset value
and dot spacing value for a layout.
1. Use to select Layout Mode. Press to
open Angle Calculator Menu.
2. Dot spacing (m) and offset (z) are calculated based
on the parameters entered:
θ - Stall angle
h Depth of stall
x Stall size (width)ll
3. Measure and mark the offset distance (z) calculated
for the first stall.
4. Press to return to Layout Mode. The dot spac-
ing value (m) is saved and displayed as stall size on
the Layout Mode screen.
5. Press and release gun trigger control to start mark-
ing stall size dots. Press and release gun trigger
control to stop marking.
Ref. Description
1 Opens Stall Calculator.
2 Exits and returns to Layout Mode.
3Select θ, h, or x.
4 Adjust the parameter selected.
5 Calculated offset and dot spacing.
