Graco LineLazer V250SPS User Manual

Smart Control Operation
3A3393C Operation 27
Striping Mode (LLV 250DC Shown)
Operating in Striping Mode
Striper must be running and clutch engaged before acti-
vating gun trigger control.
1. Make sure engine is running and clutch switch is
engaged.
2. Use gun selector switches to select guns and line
type.
3. Activate gun trigger control to began spraying.
In Automatic Mode the striper has a low speed shutoff
value of 0.6 MPH (1.0 kilometer/hour). The low speed
shutoff value can be adjusted or disabled. See Informa-
tion, page 33.
In Automatic Mode the will flash when gun trigger
control is pressed to signal mode is active.
1
12
5
6
7
8
9
34
2
3

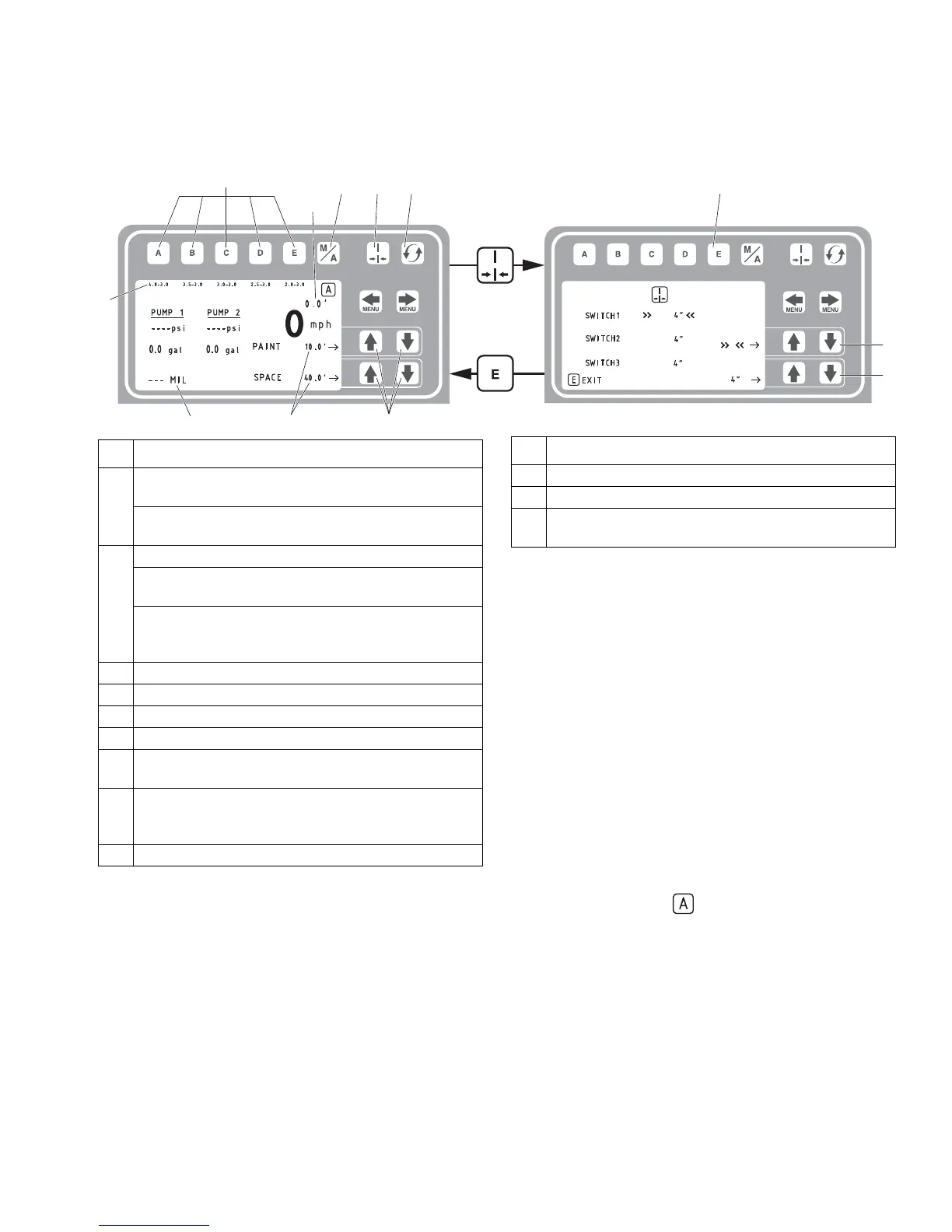

ti23819a
Ref. Description
1
Select a “Favorite”, press for less than one sec-
ond.
Save a “Favorite”, press and hold for more than
three seconds.
2
Cycles between Manual or Automatic Mode.
Manual Mode: Press and hold gun trigger control
to stripe.
Automatic Mode: Press and release gun trigger
control to start striping. Press and release button
again to stop.
3 Line width button for MIL (thickness) calculation.
4 Resets “Job” values to zero.
5 Total line length sprayed.
6 Paint and Space length adjustment buttons.
7 Paint and Space distance that is sprayed if a
switch is set to skip line.
8 MIL thickness. While spraying “Instant MIL avg” is
displayed. When stopped total “Job MIL avg” is
displayed.
9 Five skip line favorites
Ref. Description
1 Exits and returns to the Striping Mode Menu.
2 Select switch 1, 2, or 3.
3 Line Width Adjustment, if switch is operating more
than one gun add the line widths together.
*LLV 250SPS displays information for only 1 pump.
