Smart Control Operation
34 3A3393C Operation
Information (2)

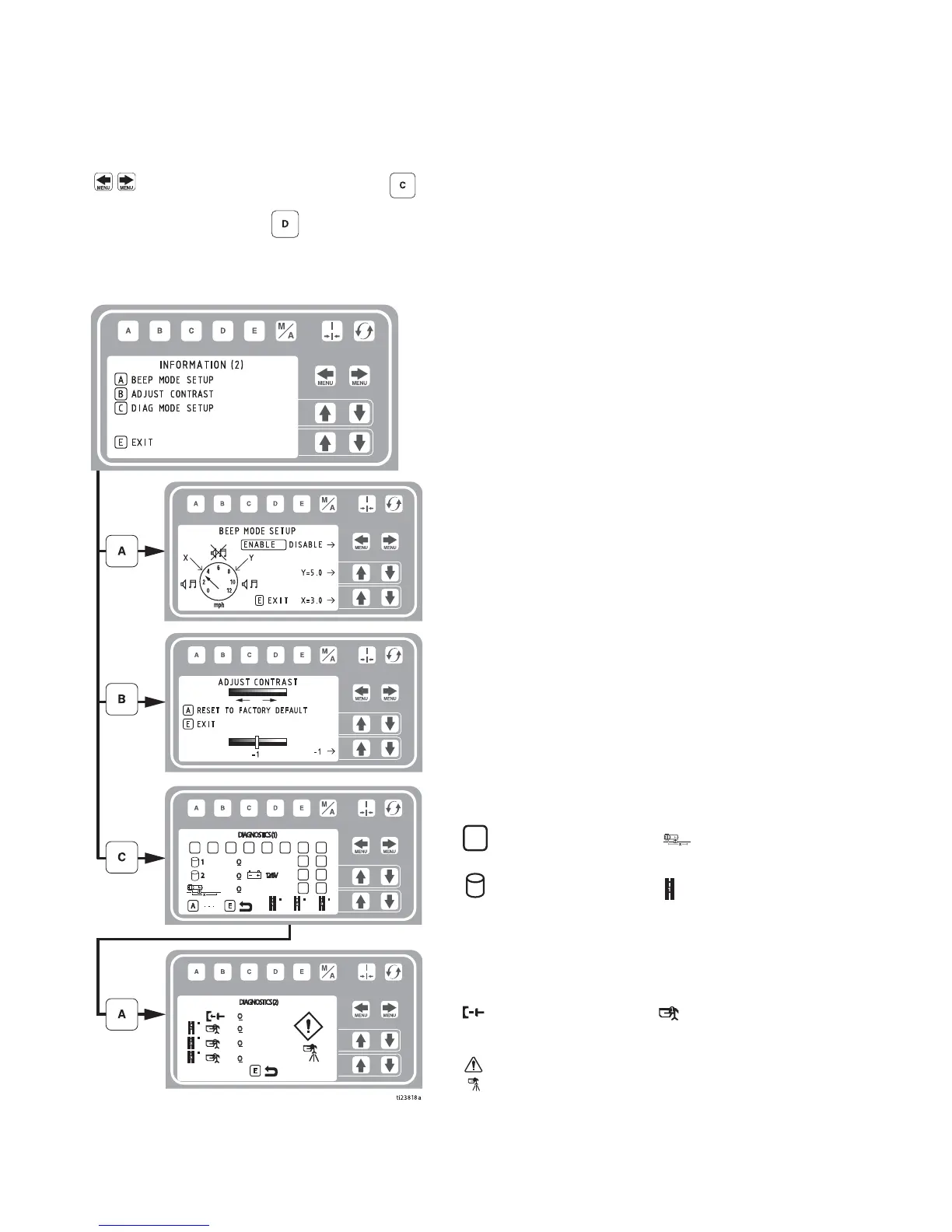

Use to select Setup/Information. Press to
open Information Menu. Press to open Information
(2) Menu.
Set low speed limit (X) and high speed limit (Y). If you
travel outside of these speeds while striping the striper
will beep. Fast beep if traveling above the limit and a slow
beep if traveling below the limit.
Adjust screen contrast to the desired value.
Used for Troubleshooting.
Membrane Switch Wheel Sensor
Gallon Counter Gun Switches
Used for Troubleshooting.
Clutch Solenoids
Caution Guns will Spray
DIAGNOSTICS (1)
12.45V
1 O
2
E
A E
O
O
E
O
O
O
O
DIAGNOSTICS (2)
ti24039a
i24
4
To Next Page
