Driving Instructions
20 3A3393C Operation

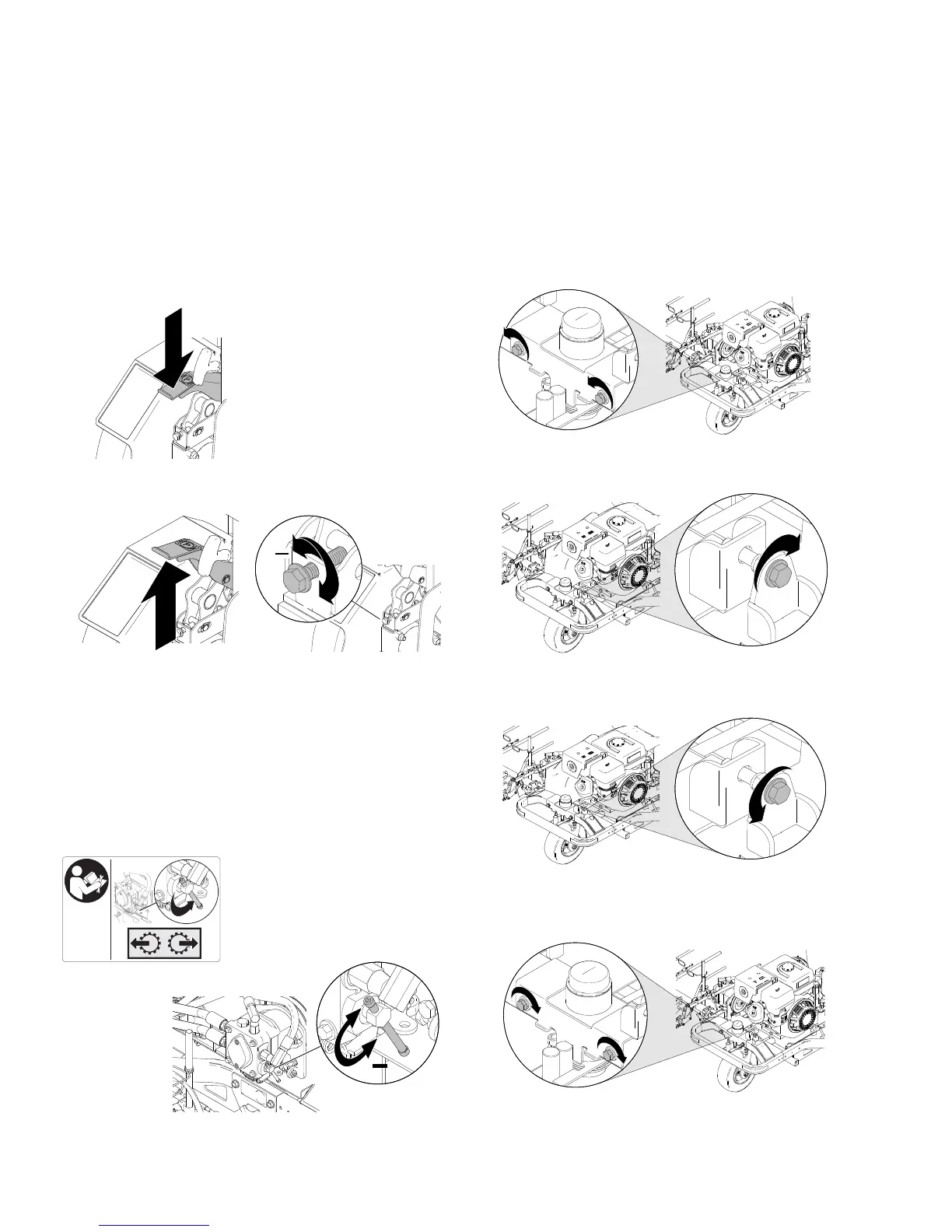

Parking/Emergency Brake
This unit is equipped with a parking brake. Always
engage parking brake when not in operation. Brake may
also be used to slow machine in an emergency situa-
tion.
1. Step down on the brake lever to engage parking
brake.
2. Lift brake lever up with foot to disengage parking
brake.
NOTE: Adjust screw for more or less braking force.
Drive Engagement
The wheel motor bypass valve allows the operator to
disengage the wheel tension and push the unit around.
Rotate one complete turn counter-clockwise to
disengage.
Straight Line Adjustment
The front wheel is set to center the unit and allow the
operator to form straight lines. Over time, the wheel may
become misaligned and will need to be readjusted. To
re-center the front wheel, perform the following steps:
1. Loosen two bolts on the wheel alignment plate.
2. If striper arcs to the right, turn adjuster screw
clockwise.
3. If striper arcs to the left, turn adjuster screw
counter-clockwise.
4. Test-drive the striper. Repeat steps 2 and 3 until
striper drives straight. Tighten two bolts on wheel
alignment plate to lock the new wheel setting.
