Graco XP70 Instructions

Component Identification
3A0420V 15
Component Identification
XP Proportioners
Key:
A Air Supply Hose for Motor
B Main Air Controls; see page 17
C Air Inlet - 3/4 npsm(f)
D High Pressure Fluid Pump
E Air Motor
F Fluid Heater (optional)
G Solvent Flush Pump (optional); see page 18
H Solvent Flush Pump Air Controls; see page 18
J 7 Gallon Hoppers (optional)
KCart
LBrake
M Handle (lift to release)
N Fluid Control Assembly; see page 17
P Tie Rods
R Motor Adapter Plate
S Adjustable Packing Nuts with Wet Cups
T Yoke With Rod Bearings
U Recirculation Lines
V Yoke Position Nut
W Static Mixer Tubes with Replacement Plastic Elements
X Motor Position Indicator Lines; see Motor Position on
page 22
Y Over Pressure Rupture Disc;
only 38cc, 48cc, 54cc, 58cc, and 72cc pumps

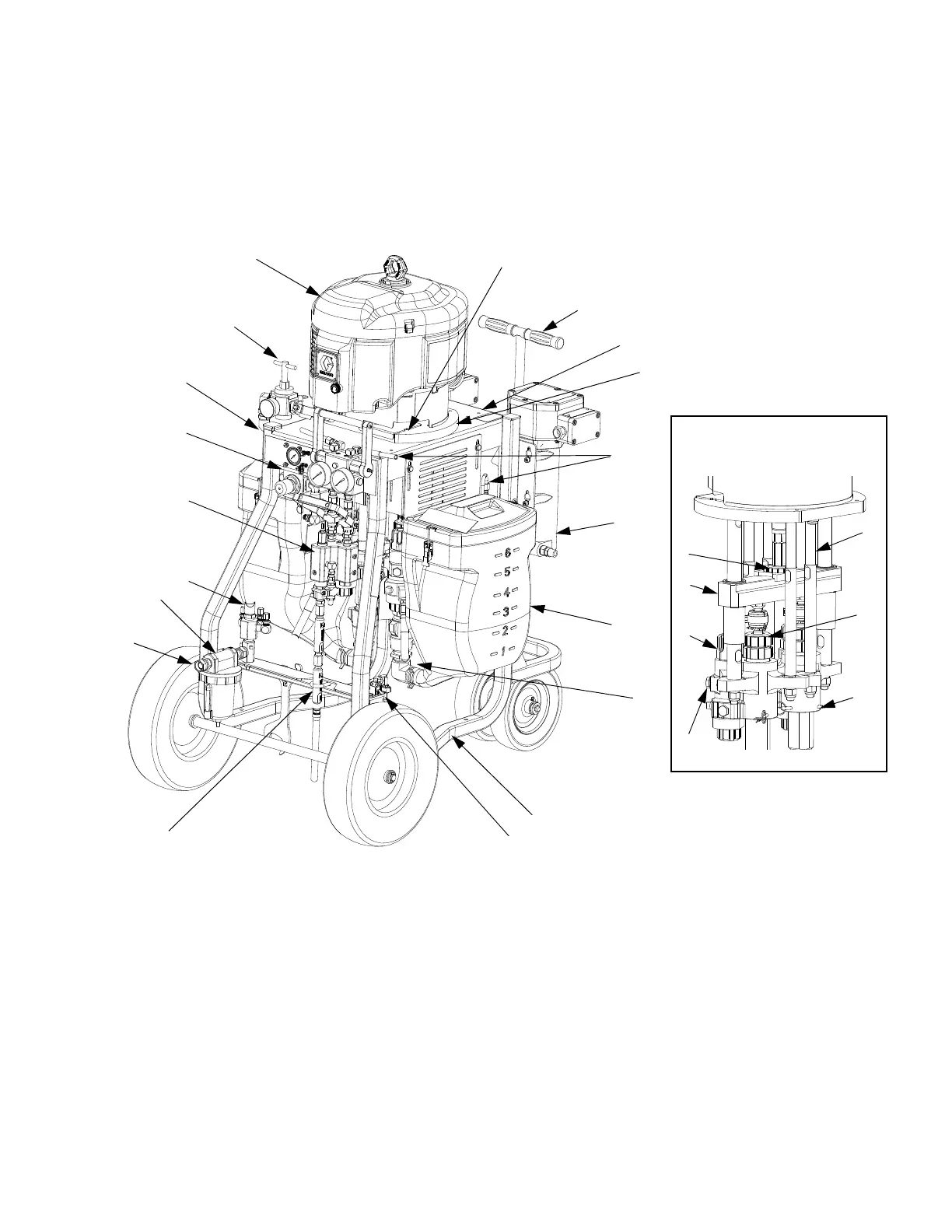

FIG. 1: XP70 system with optional accessories
r_571101_3a0420a_1a-2
M
F
N
E
A
L
J
D
B
K
R
D
S
T
P
G
H
Mounting Components for
Pump Package
C
A
U
V
B
W
D
Y
X

Graco XP70 Specifications

General

Fluid Output	2.0 gpm (7.6 lpm)
Fluid Delivery	2.0 gpm (7.6 lpm)
Maximum Fluid Working Pressure	7250 psi (500 bar)
Maximum Air Input Pressure	100 psi (7 bar)
Fluid Outlet Size	3/8 in npsm(m)
Wetted Parts	Stainless Steel, PTFE, UHMWPE
Maximum Pressure	7250 psi (500 bar, 50 MPa)
Hose Length	50 ft
