Graco XP70 Instructions

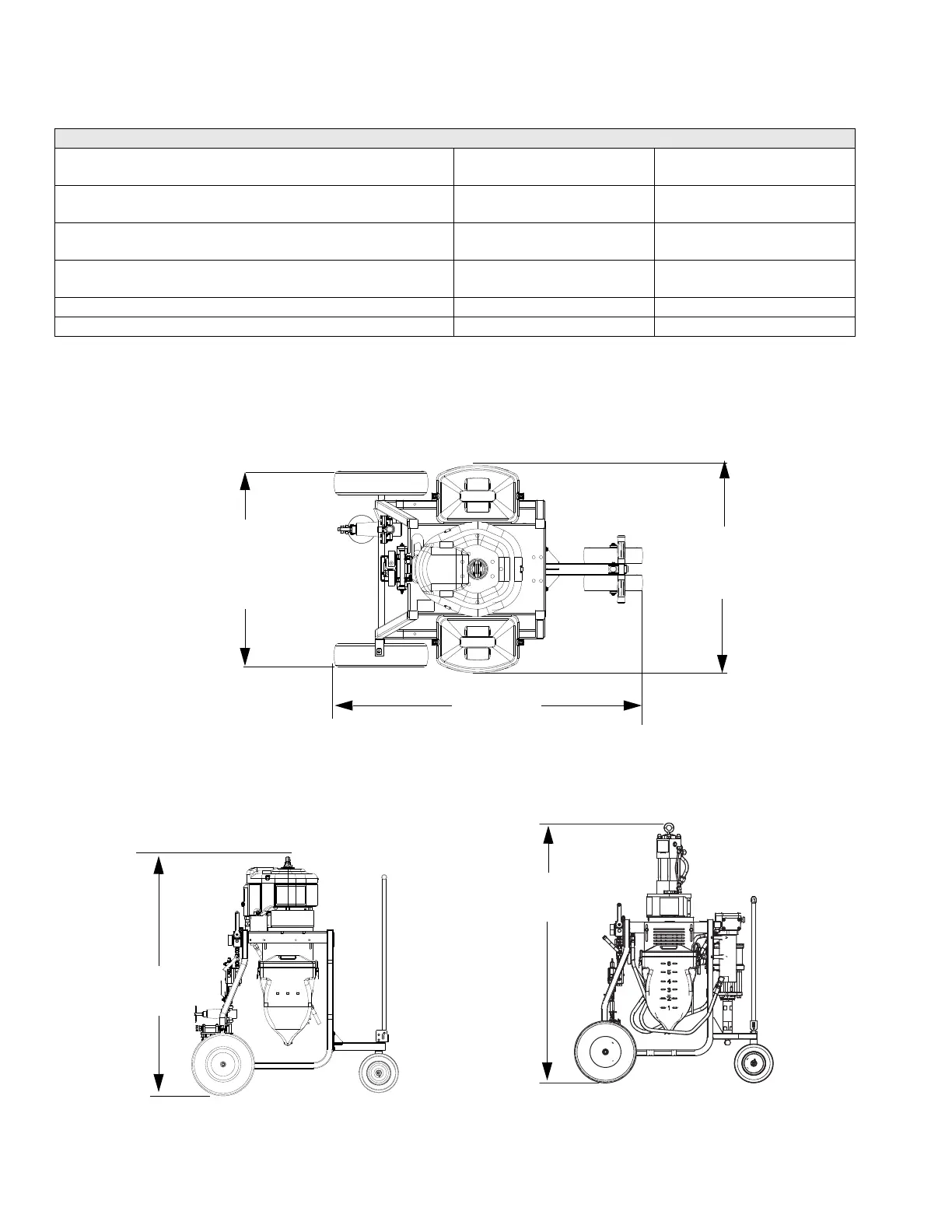

Dimensions
64 3A0420V
Dimensions
Weight:
Full XP35, XP50, or XP70 System with heaters, solvent
flush pump, and hoppers
575 lb 261 kg
Full XP-h System with heaters, solvent flush pump, and
hoppers
600 lb 273 kg
Bare XP35, XP50, or XP70 system with no heaters, solvent
flush pump, or hoppers
425 lb 193 kg
Bare XP-h System with no heaters, solvent flush pump, or
hoppers
450 lb 204 kg
XP35, XP50, or XP70 Pump only 286 lb 130 kg
XP-h Pump only 290 lb 132 kg
WLD
32 in.
(813 mm)
52 in.
(1321 mm)
60 in.
(1524 mm)
r_571100_3a0420_101a
r_571100_3a0420_100a
35 in.
(889 mm)
Full SystemBare System
Top View
Side View
XP System
XP-h System
63 in.
(1600 mm)

Graco XP70 Specifications

General

Fluid Output	2.0 gpm (7.6 lpm)
Fluid Delivery	2.0 gpm (7.6 lpm)
Maximum Fluid Working Pressure	7250 psi (500 bar)
Maximum Air Input Pressure	100 psi (7 bar)
Fluid Outlet Size	3/8 in npsm(m)
Wetted Parts	Stainless Steel, PTFE, UHMWPE
Maximum Pressure	7250 psi (500 bar, 50 MPa)
Hose Length	50 ft
