Graco XP70 Instructions

Component Identification
18 3A0420V

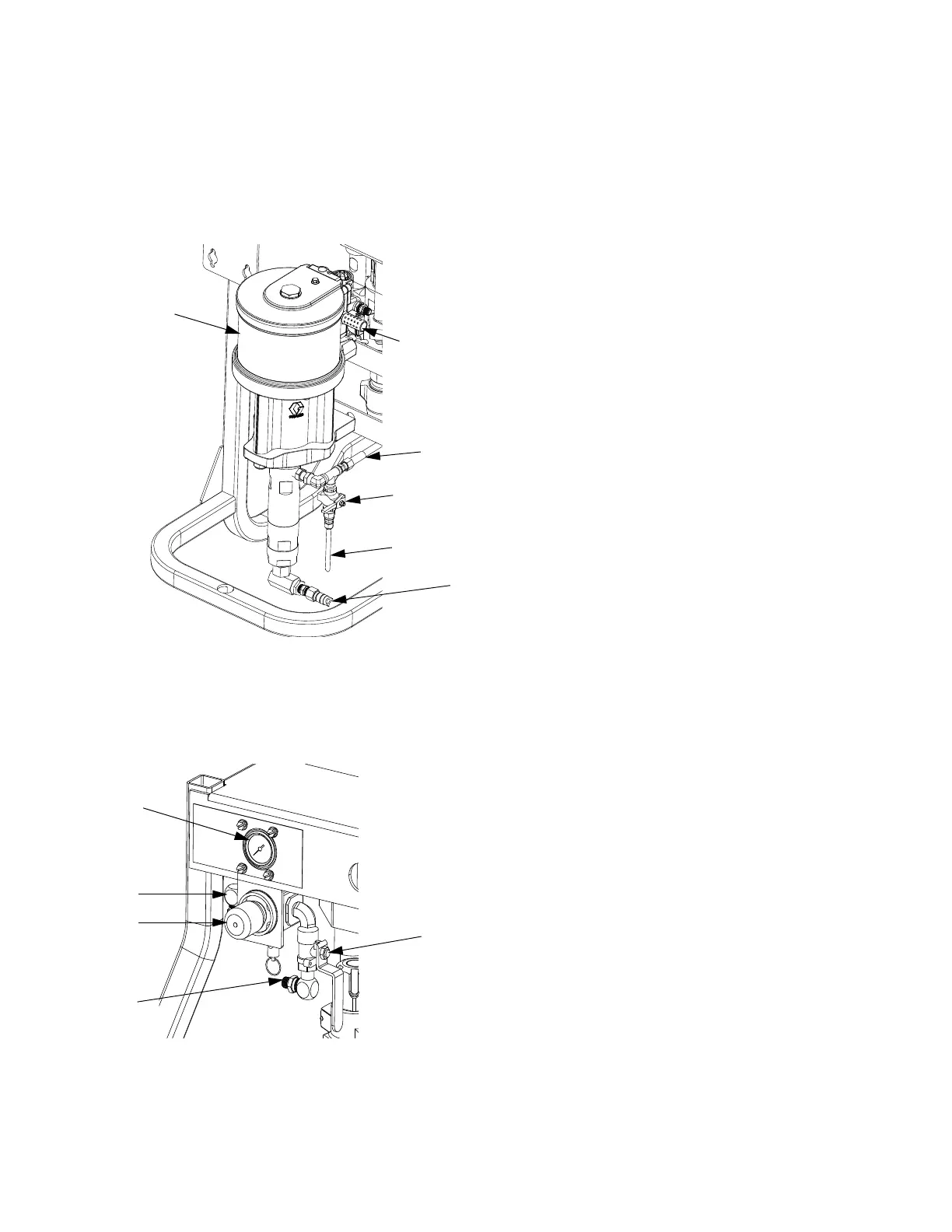

45:1 Solvent Flush Pump Kit 262393 (optional)
Pump
Air Controls
FIG. 5
Key:
BA Solvent flush pump (Merkur Pump)
BB Fluid Inlet
BD Muffler
BE Prime/Flush/Sample valve
BF Fluid Outlet Hose
BG Circulation hose
BA
BB (suction hose not shown)
BD
BG
BF
r_571100_3a0420a_4a-2
BE
FIG. 6
Key:
DA Solvent Pump Air Shutoff Valve (Relieving)
DB Solvent Pump Air Pressure Regulator
DC Solvent Pump Air Pressure Gauge
DD Air Outlet
DE Air Inlet
DC
DB
DA
r_571101_3a0420a_5a-2
DD
DE

Graco XP70 Specifications

General

Fluid Output	2.0 gpm (7.6 lpm)
Fluid Delivery	2.0 gpm (7.6 lpm)
Maximum Fluid Working Pressure	7250 psi (500 bar)
Maximum Air Input Pressure	100 psi (7 bar)
Fluid Outlet Size	3/8 in npsm(m)
Wetted Parts	Stainless Steel, PTFE, UHMWPE
Maximum Pressure	7250 psi (500 bar, 50 MPa)
Hose Length	50 ft
