Graco XP70 Instructions

Parts
58 3A0420V

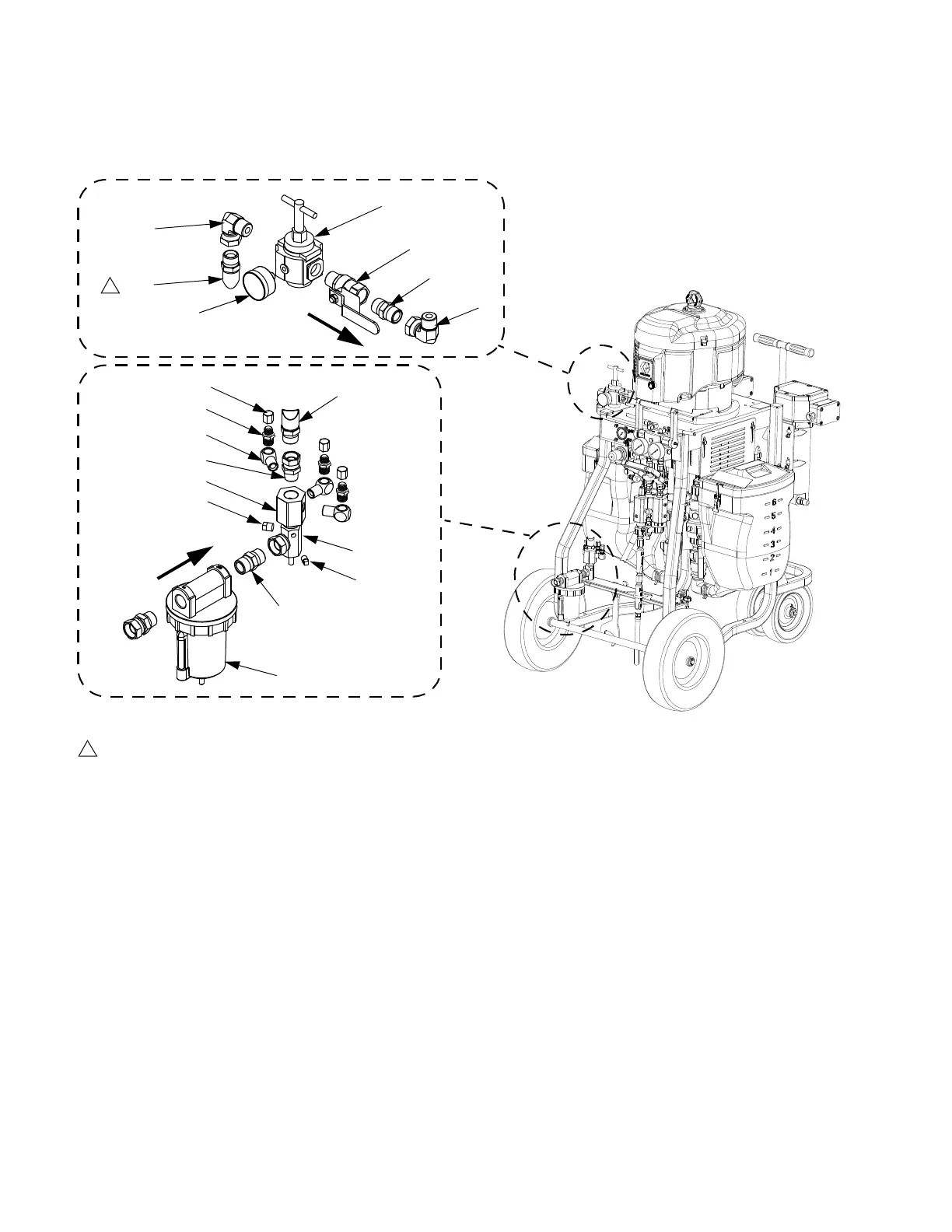

Air Controls, 258983
 Not shown.
1. Apply anaerobic pipe sealant to all non-swiveling pipe threads.
Connect hose (214) to fitting (206) and air distribution manifold (213).
2
201
215
214
213
216
211
202
203
204
209
208
207
205
206
210
214
209
206
r_571100_3A0420A_1a-1
Air Flow
Air Flow
211
TI17433a
2
Ref. No. Part No. Description
Qty
.
201 16F014 REGULATOR, air, T-handle 1
202 207675 MANIFOLD, air 1
203 113218 VALVE, ball 1
204 100509 PLUG; 1/4 npt 1
205 100403 PLUG; 1/8 npt 1
206 160327 FITTING, union, 90°; 3/4 male x
female
2
207 101689 GAUGE, pressure, air 1
208 155699 FITTING, elbow, street; 3/8 npt 3
209 119992 FITTING, pipe, nipple, 3/4 x
3/4 npt
2
210 117628 FITLTER, air, auto drain; 3/4 npt 1
210a 106204 ELEMENT, filter; 3/4 npt 1
211 157785 FITTING, union; 3/4 male x
female
2
213 15E145 MANIFOLD, air distribution 1
214 16E004 HOSE, coupled, air; 26 in.
(660 mm)
1
215 157350 NIPPLE; 3/8 x 1/4 npt 3
216 115781 CAP PLUG; 1/4 npt 3
Ref. No. Part No. Description
Qty
.

Graco XP70 Specifications

General

Fluid Output	2.0 gpm (7.6 lpm)
Fluid Delivery	2.0 gpm (7.6 lpm)
Maximum Fluid Working Pressure	7250 psi (500 bar)
Maximum Air Input Pressure	100 psi (7 bar)
Fluid Outlet Size	3/8 in npsm(m)
Wetted Parts	Stainless Steel, PTFE, UHMWPE
Maximum Pressure	7250 psi (500 bar, 50 MPa)
Hose Length	50 ft
