Graco XP70 - Bare Proportioner Mounting Hole Dimensions

Dimensions
66 3A0420V

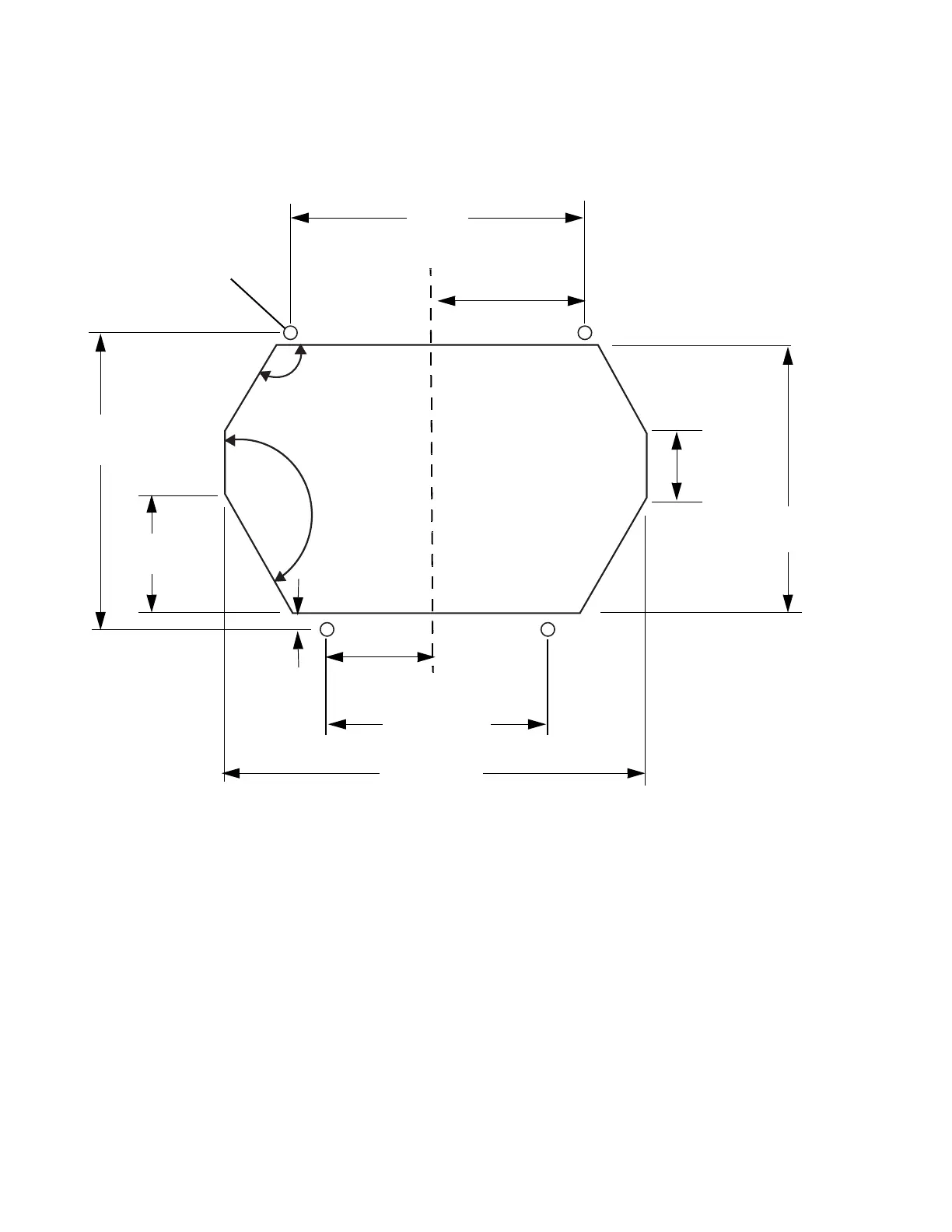

Bare Proportioner Mounting Hole Dimensions
The dimensions below is the minimum opening size for mounting a bare proportioner.
7.5 in.
(190.5 mm)
3.75 in.
(95.25 mm)
5.06 in.
(128.52 mm)
10.375 in.
(263.525 mm)
3/8-16 (4x)
10.125 in.
(257.175 mm)
14.35 in.
(364.49 mm)
9.25 in.
(234.95 mm)
0.25 in.
(6.35 mm)
150° (4x)
120° (4x)
2.25 in.
(57.15 mm)
4.05 in.
(102.87 mm)
