Graco XP70 Instructions

Parts
46 3A0420V
Parts

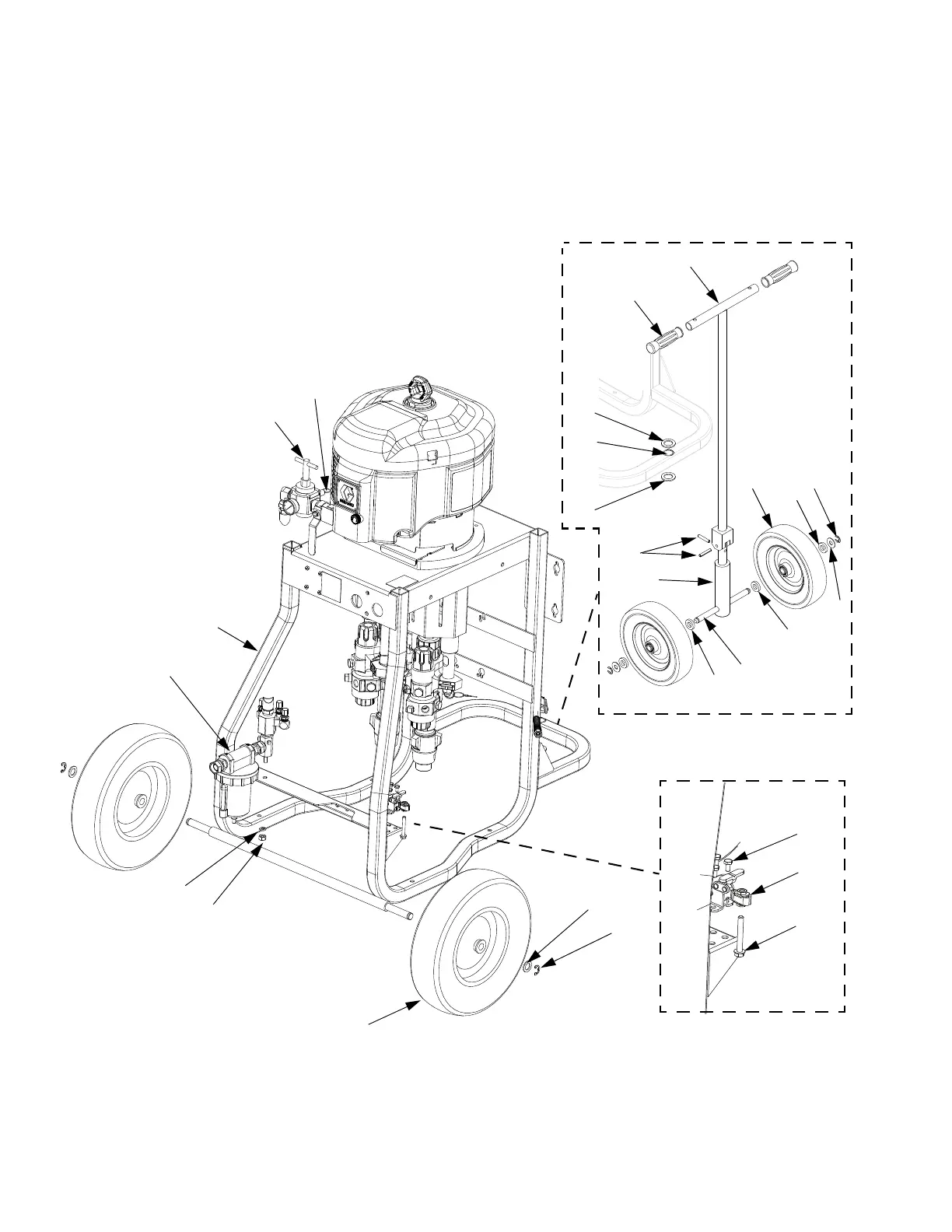

Cart-Mounted System
1
15
14
13
16
11
3
17
18
9
8
7
5
10
12
17
64
50
53
38
54
13
13
11
52
1. Apply anaerobic pipe sealant to all non-swiveling pipe threads.
2
r_571101_3a0420a_30a
r_571101_3a0420a_30a
(XP cart shown)

Graco XP70 Specifications

General

Fluid Output	2.0 gpm (7.6 lpm)
Fluid Delivery	2.0 gpm (7.6 lpm)
Maximum Fluid Working Pressure	7250 psi (500 bar)
Maximum Air Input Pressure	100 psi (7 bar)
Fluid Outlet Size	3/8 in npsm(m)
Wetted Parts	Stainless Steel, PTFE, UHMWPE
Maximum Pressure	7250 psi (500 bar, 50 MPa)
Hose Length	50 ft
