Graco XP70 User Manual

Component Identification
3A0420ZAF 17
XP-h Proportioners
Key:
D High Pressure Fluid Pump
E Hydraulic Motor
F Fluid Heater (optional)
G Solvent Flush Pump (optional); see page 19
H Solvent Flush Pump Air Controls; see page 19
J 7 Gallon Hoppers (optional)
KCart
LBrake
M Handle (lift to release)
N Fluid Control Assembly; see page 18
P Tie Rods
R Motor Adapter Plate
S Adjustable Packing Nuts with Wet Cups
T Yoke With Rod Bearings
U Recirculation Lines
V Yoke Position Nut
W Static Mixer Tubes with Replacement Plastic Elements
X Motor Position Indicator Lines; see Motor Position on
page 25
Y Over Pressure Rupture Disc;
only 38cc, 48cc, 54cc, 58cc, and 72cc pumps
Z Air Motor Ground Wire

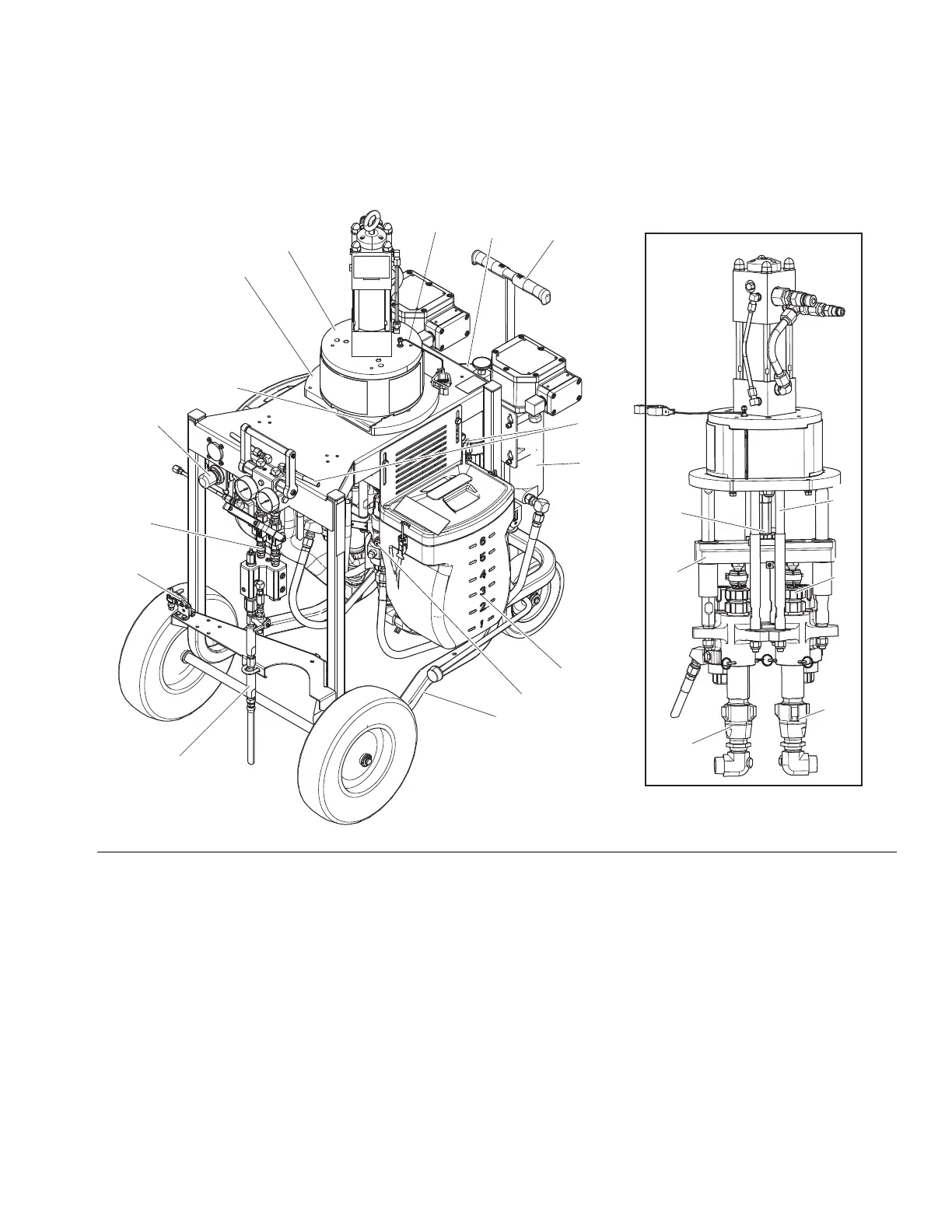

FIG. 2: XP70-h System with Optional Accessories
WLF
(
5
;
+
1
.
/
:
-
)
8
8
*
0
'
'
6
3
9
7
<
=
XP-h Pump Package

Graco XP70 Specifications

General

Fluid Output	2.0 gpm (7.6 lpm)
Fluid Delivery	2.0 gpm (7.6 lpm)
Maximum Fluid Working Pressure	7250 psi (500 bar)
Maximum Air Input Pressure	100 psi (7 bar)
Fluid Outlet Size	3/8 in npsm(m)
Wetted Parts	Stainless Steel, PTFE, UHMWPE
Maximum Pressure	7250 psi (500 bar, 50 MPa)
Hose Length	50 ft
