Graco XP70 User Manual

Dimensions
86 3A0420ZAF

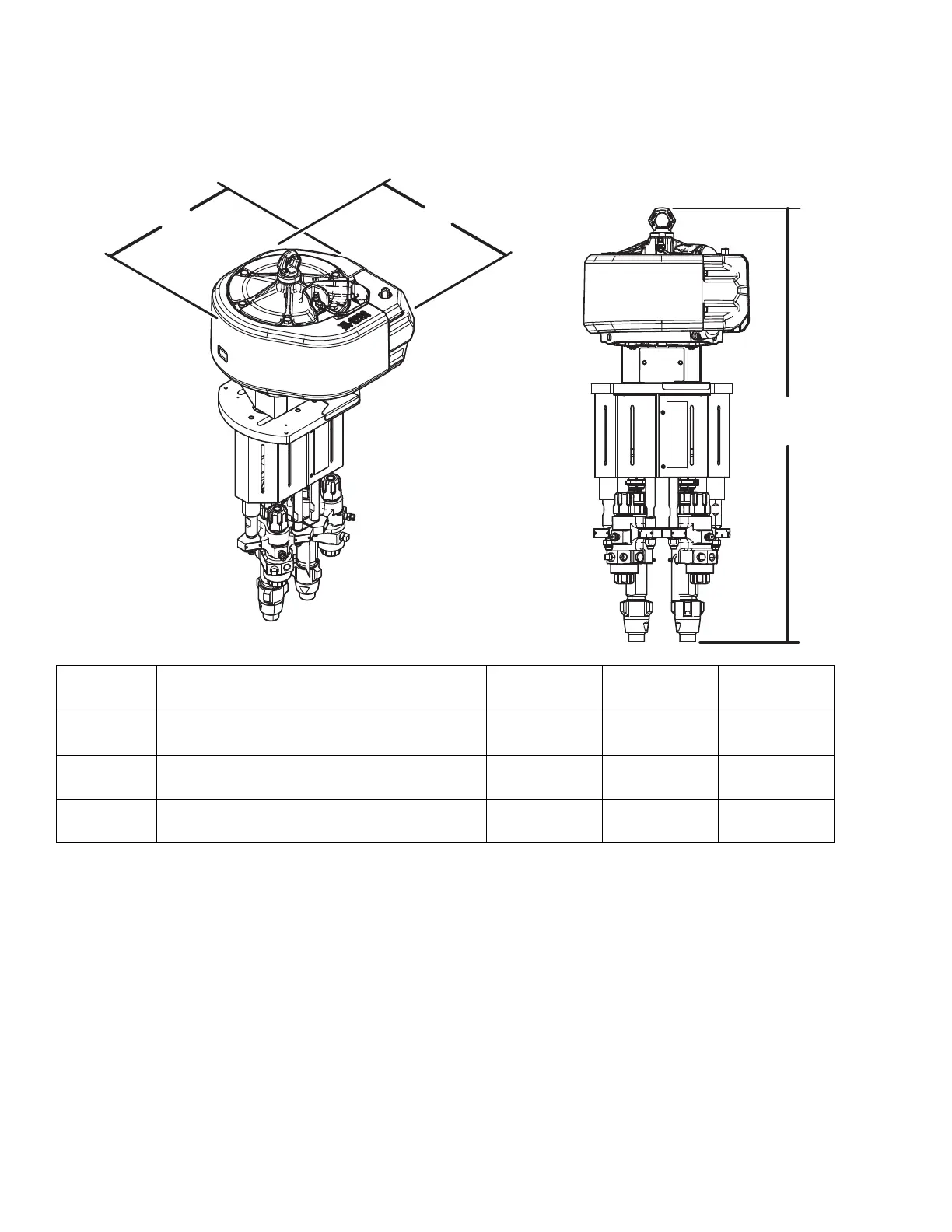

Pump Dimensions
Pump
Package
Part
Maximum
Width (A)
Maximum
Depth (B)
Maximum
Height (C)
XP35
281100, 281200,
262803, 281300, 281400
15 in.
(38 cm)
16 in.
(40 cm)
46 in.
(117 cm)
XP50
282100, 282150, 282200,
282250, 282300, 282330, 282400
18 in.
(46 cm)
19 in.
(48 cm)
47 in.
(119 cm)
XP70
571100, 571150, 571200,
571250, 571300, 571400
18 in.
(46 cm)
19 in.
(48 cm)
46 in.
(117 cm)
WLD
A
B
C

Graco XP70 Specifications

General

Fluid Output	2.0 gpm (7.6 lpm)
Fluid Delivery	2.0 gpm (7.6 lpm)
Maximum Fluid Working Pressure	7250 psi (500 bar)
Maximum Air Input Pressure	100 psi (7 bar)
Fluid Outlet Size	3/8 in npsm(m)
Wetted Parts	Stainless Steel, PTFE, UHMWPE
Maximum Pressure	7250 psi (500 bar, 50 MPa)
Hose Length	50 ft
