Parts
76 3A0420ZAF

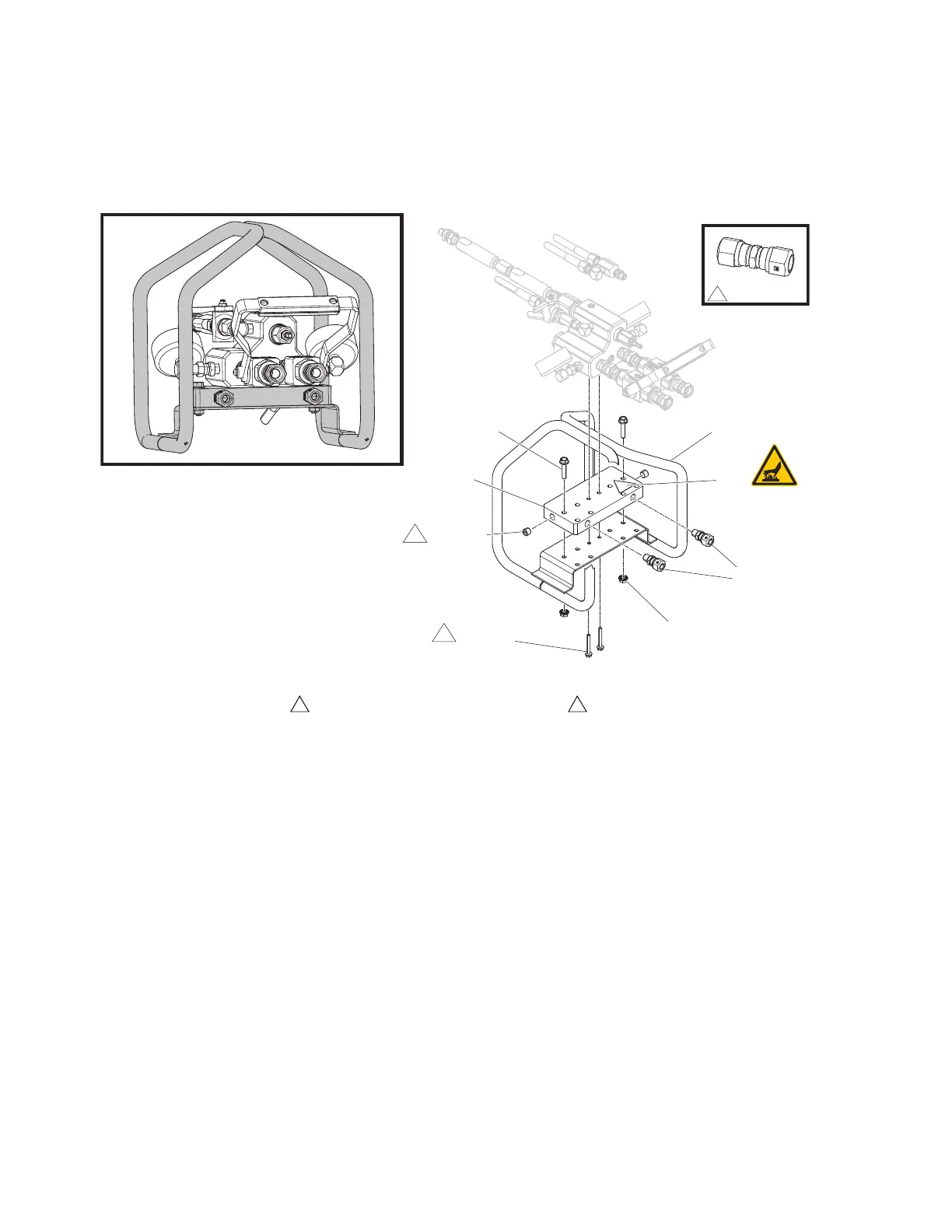

Heater Block Remote Manifold Kit
Kit 24Z934
WLD



[
[

[
[





Apply thread sealant to all non-swiveling
pipe threads.
Supplied loose, not installed.
1
2
Ref. Part Description Qty.
601 24F834 CARRIAGE, weldment, remote manifold
1
602 16T294 PLATE, heater transfer, PFP 2k
1
603 110837 SCREW, flange, hex
2
604 110996 NUT, hex, flange head
2
605 126692 FITTING, tube, NPT x tube
2
606 100721 PLUG, pipe
2
608 189285 LABEL, safety, burn
1
609 120736 SCREW, hex flange HD
2
610 126894 FITTING, union, 1/2 tube x 1/2 tube
2
611* 054960 TUBE, red, nylon, .375 (9.5 mm) ID (1.5 ft)
1
612* 054961 TUBE, blue, nylon, .375 (9.5 mm) ID (1.5 ft)
1
* Supplied loose, not installed.

Replacement Danger and Warning labels, tags, and cards are
available at no cost.

Graco XP70 Specifications

General

Fluid Output	2.0 gpm (7.6 lpm)
Fluid Delivery	2.0 gpm (7.6 lpm)
Maximum Fluid Working Pressure	7250 psi (500 bar)
Maximum Air Input Pressure	100 psi (7 bar)
Fluid Outlet Size	3/8 in npsm(m)
Wetted Parts	Stainless Steel, PTFE, UHMWPE
Maximum Pressure	7250 psi (500 bar, 50 MPa)
Hose Length	50 ft
